Attaching Memory Unit Type D 128MB, Memory Unit Type E 256MB (SDRAM Module)
41
3

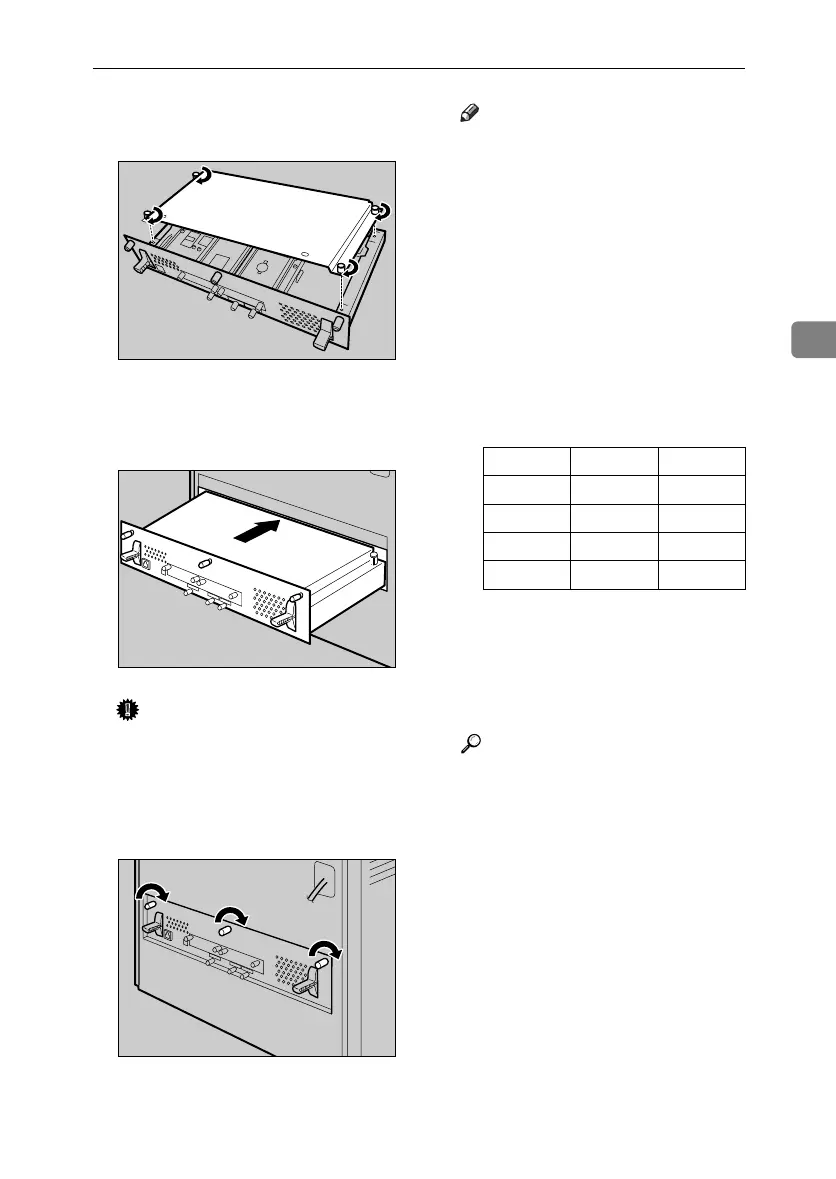

J Fasten the four screws to attach
the cover.
K Align the controller board with
the left and right rails, and then
push it carefully in, until it stops.
Important
❒ The printer may malfunction if
the controller board is not prop-
erly installed.
L Fasten the controller board to the
printer using the three screws.
Note
❒ Be sure to return the provided
screwdriver to its original posi-
tion on the inside of the front
cover.
❒ After finishing the installation,
you can check the memory unit
is properly installed: Print the
configuration page from the
“List/Test Print” menu. If it is
installed properly, you will see
the memory capacity for “Total
Memory”.
❒ The table below shows total
SDRAM module capacities.
❒ If the memory unit is not prop-
erly installed, repeat the proce-
dure from step
A
. If you cannot
install it properly even after re-
installation, contact your sales
or service representative.
Reference
For printing the configuration
page, see p.30 “Test Printing”.
Install the controller board care-
fully. For details, see p.36 “Cau-
tion when re-installing the
controller board”.
AET070S
AET071S
AET072S
Standard Extended Total
128 MB 128 MB 256 MB
128 MB 256 MB 384 MB
256 MB 128 MB 384 MB
256 MB 256 MB 512 MB
