Ricoh Aficio SP 5210DN User Manual

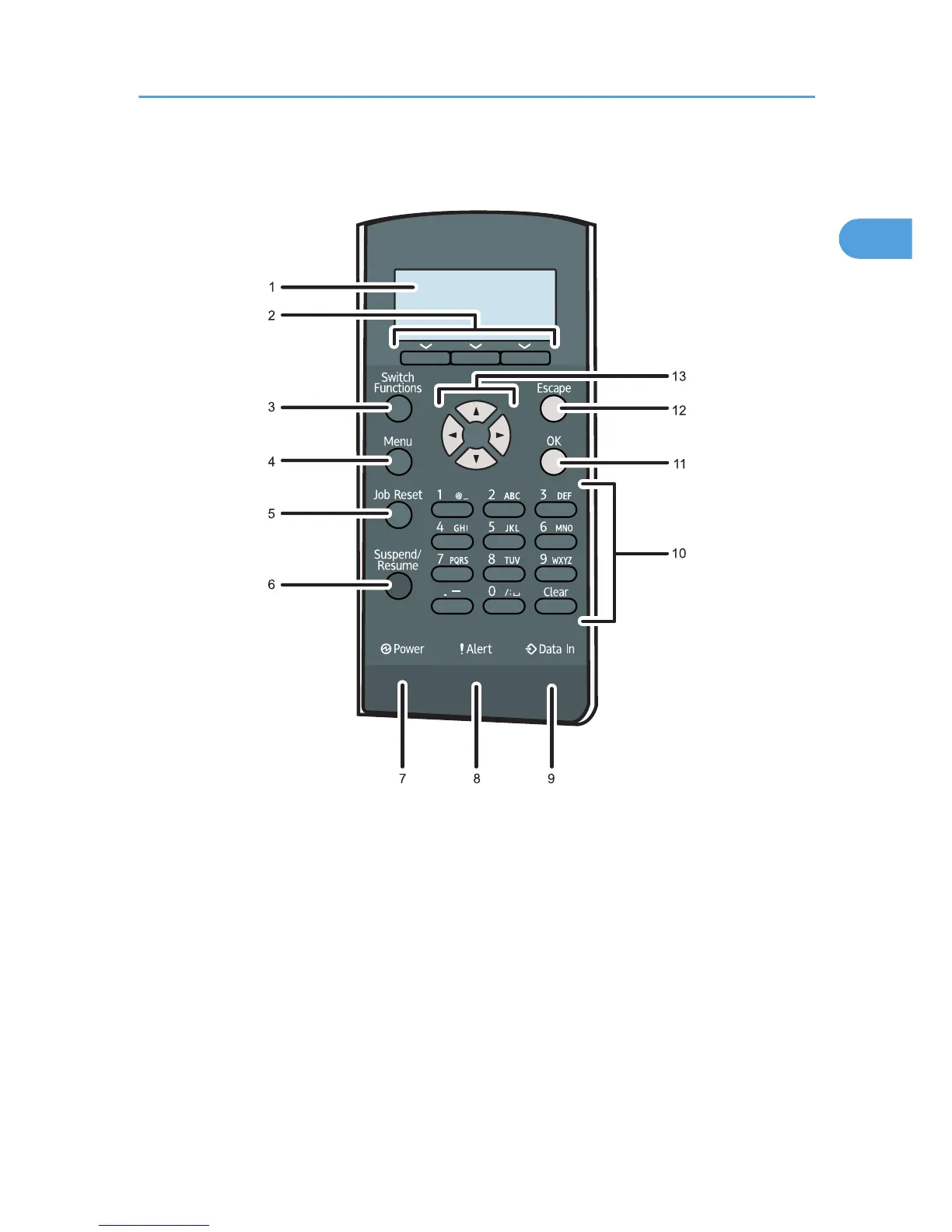

Control Panel
CEC210
1. Display
Displays current printer status and error messages.
Entering energy saver mode turns off the back light. For details about energy saver mode, see Software Guide.
2. Selection Keys
Correspond to the function items at the bottom line on the display.
Example: When this manual instructs you to press [Option], press the selection key on the left below the initial
screen.
3. [Switch Functions] Key
Press this key to switch between the operation screen of the printer function and the function screens of the
extended features currently in use.
4. [Menu] Key
Press this key to configure and check the current printer settings.
Control Panel
23
1

Ricoh Aficio SP 5210DN Specifications

General

Color	No
Duplex printing	-
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	50 ppm
Printing colors	Black
Maximum duty cycle	200000 pages per month
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6, PostScript 3
Multi-Purpose tray	Yes
Total input capacity	550 sheets
Total output capacity	650 sheets
Maximum input capacity	2850 sheets
Multi-Purpose tray input capacity	100 sheets
Duplex media weight	60 - 163 g/m²
Paper tray media types	Labels, Plain paper, Pre-Printed, Recycled paper, Thick paper
Paper tray media weight	52 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP (IPv4, IPv6), IPX/SPX, Apple Talk, Bonjour
Standard interfaces	Ethernet, USB 2.0
Product color	White
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1400 W
Power consumption (printing)	- W
Power consumption (PowerSave)	5 W
Sustainability certificates	ENERGY STAR
Server operating systems supported	Windows Server 2003, Windows Server 2008

Weight and Dimensions

Depth	435 mm
Width	411 mm
Height	400 mm
