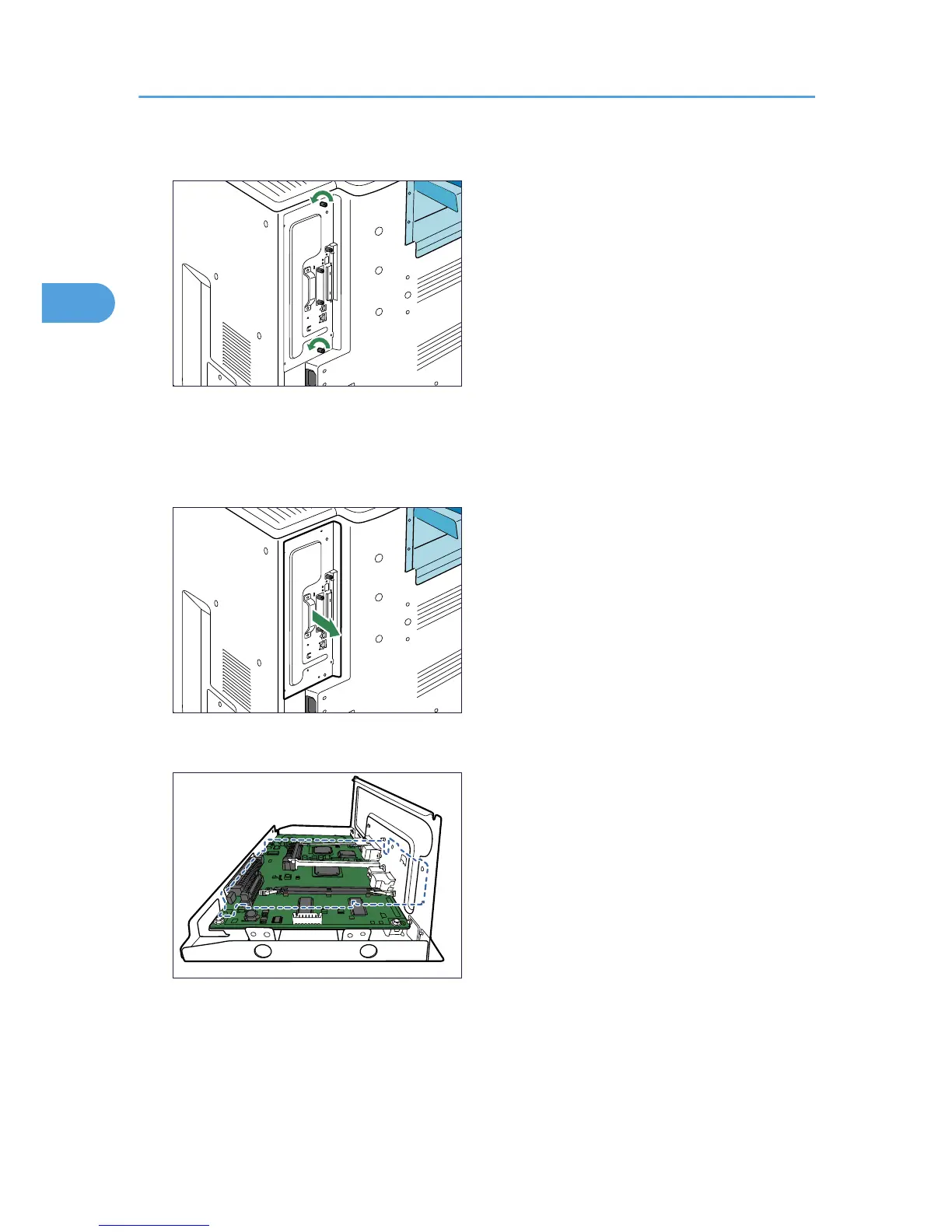

3. Remove the two screws securing the controller board.
BEK134S
The removed screws will be used to secure the controller board again later.
4. Holding the handle, carefully pull out the controller board.
Slide the controller board completely out and place it on a flat surface such as a table.
BEK135S
5. Install the hard disk in the indicated position.
BEK022S
Install the hard disk carefully if the SDRAM module is already installed. If the hard disk comes in
contact with the SDRAM module, the SDRAM module may become damaged.
2. Installing Options
34
2
