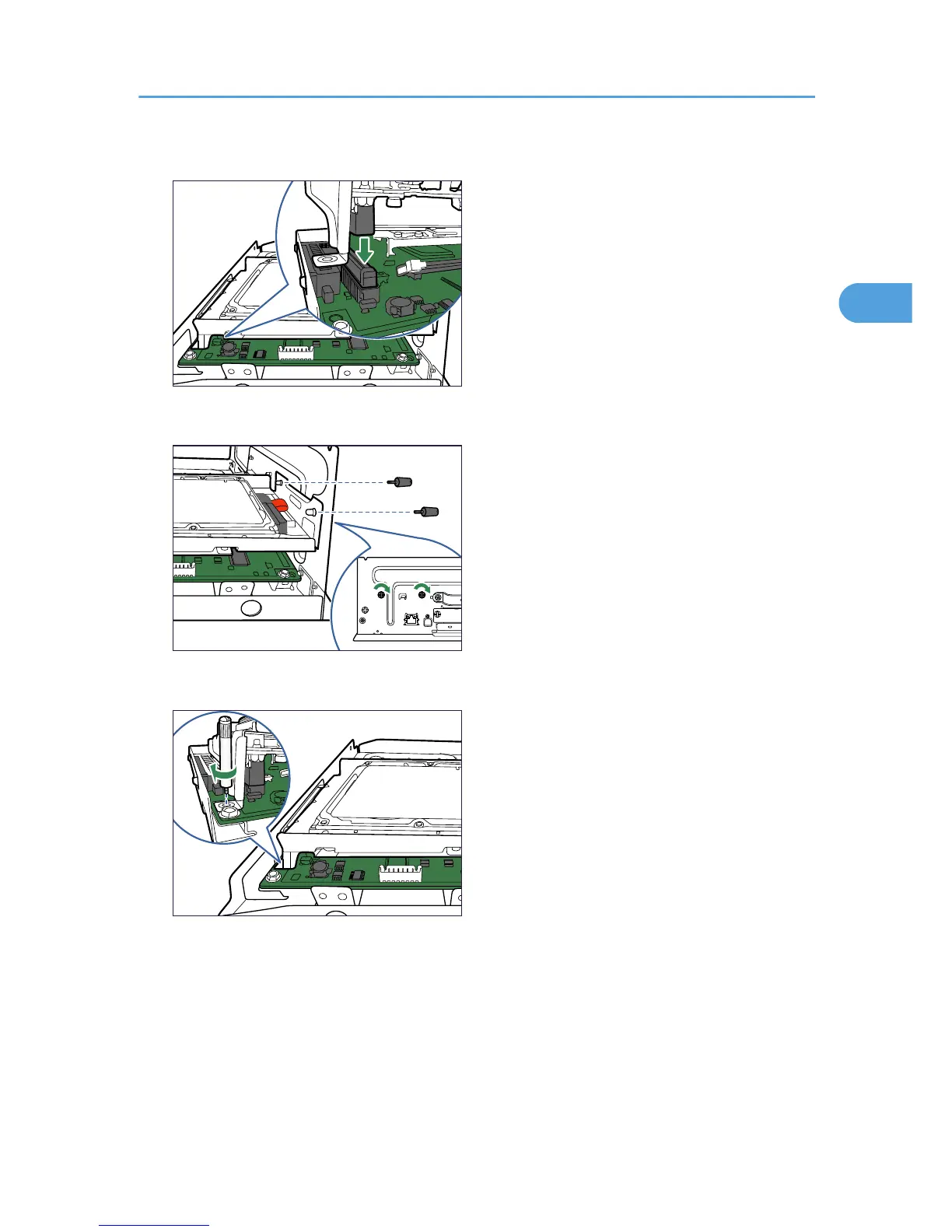

6. Fit the hard disk on the connector of the controller board carefully until it stops.

BEK023S

7. Fasten the two screws clockwise as shown by using a coin, to secure the hard disk.

BEK024S

8. Fasten the screw clockwise as shown by using a coin, to secure the hard disk.

BEK025S

Installing the Memory Expansion Units
