Ricoh MLP150DN Technical Bulletin

Technical Bulletin PAGE: 3/4
Reissued:26-Sep-14
Model: AL-C2b
Date: 14-Mar-14
No.: RD129049a

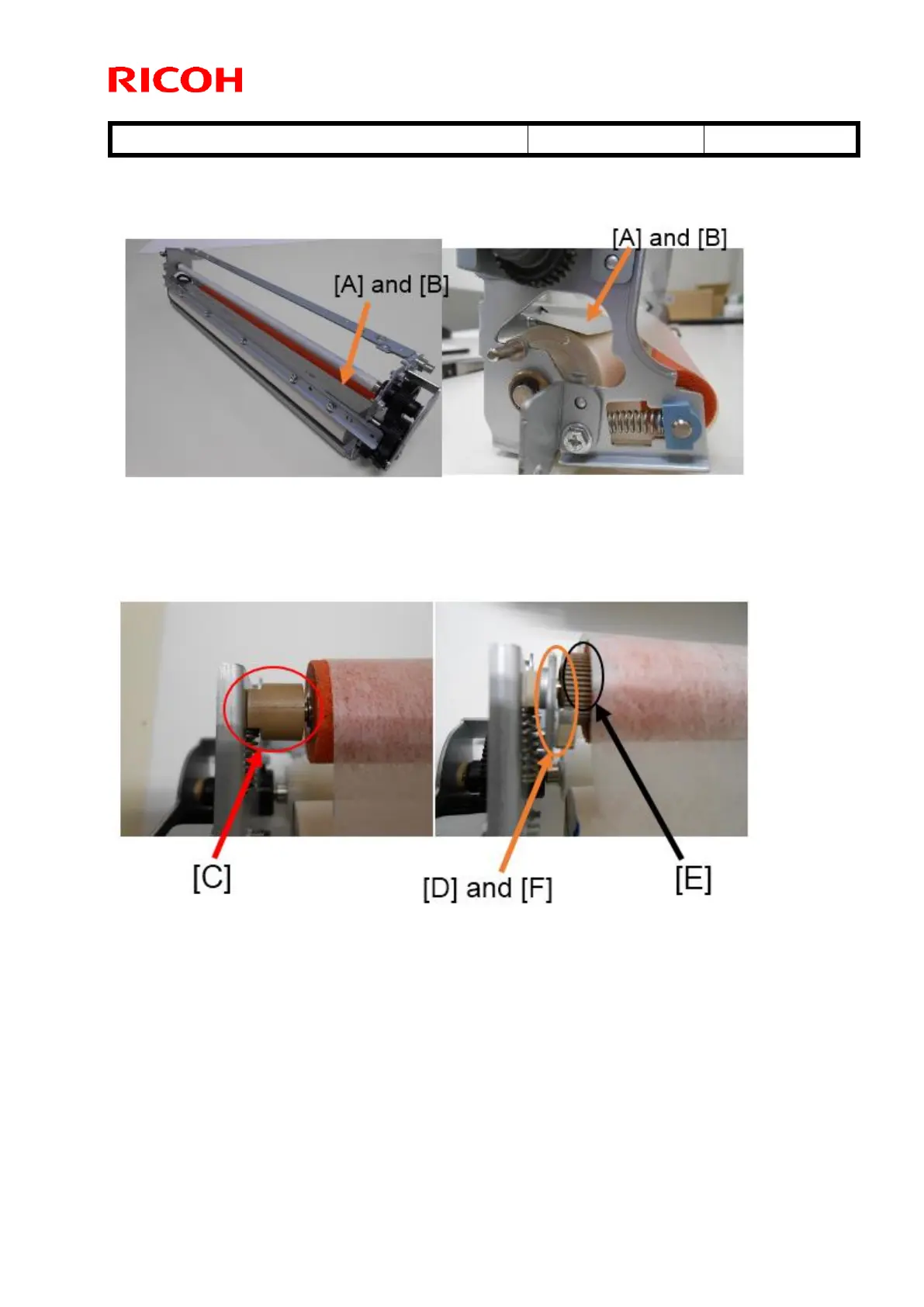

For details of [1], please refer to the following pictures.
[A] and [B] are the variable brake.
For details of [2], please refer to the following picture.
One-way clutch method was used before. Ratchet method is used after.
<One-way clutch method> <Ratchet method>
For correspondence on MIF:
Please install a new cleaning unit (p/n: D1294304) when the cleaning web issue occurs,
because individual parts are not compatible due to changing of the frame of the fusing unit.
After that, individual parts can be replaced.
