Technical Bulletin PAGE: 3/8
Model: Vacuum Feed LCIT RT5100
Target dimensions
a. Span between the two side plates (Fig. 2, 3): 446.8 – 448.4 mm
b. Clearance (Fig. 4): 0.5 – 3.0 mm
If BOTH the span and clearance are within these dimensions when the tray is in ALL
THREE positions (upper, middle, lower positions), this Rework is complete.
If ANY of these measurements is not within the dimensions mentioned above, continue
this procedure.

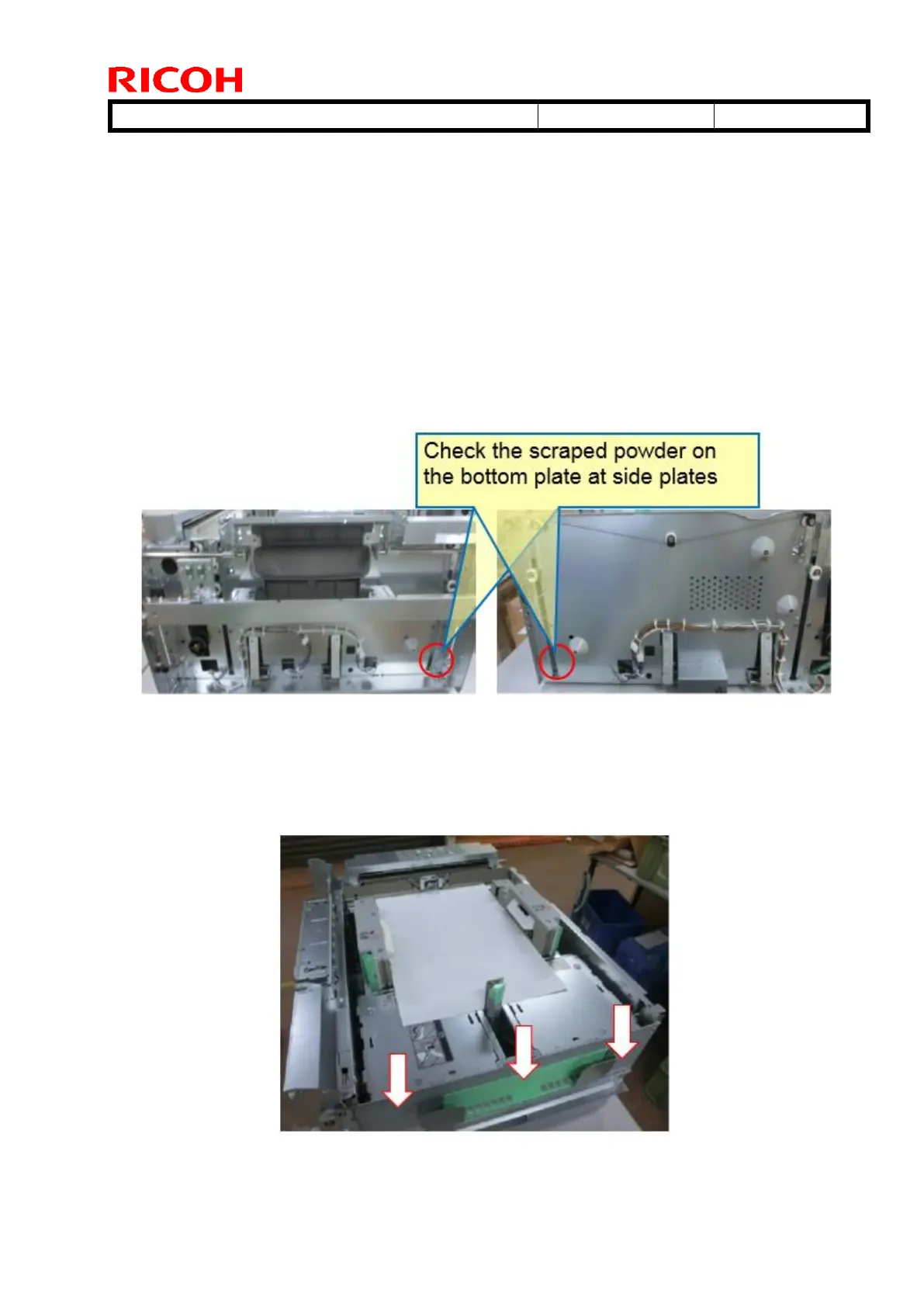

7. Check for the following, which indicate a higher risk of the wire breaking.
1) Presence of scraped powder generated by bottom plate sliding
Fig. 5
2) Less smooth up-and-down movement of the bottom plate.
a. Set a sheet of paper in the tray
b. Close the tray, then pull out the tray when the tray ascends to its upper limit.
c. Make sure there is no friction while the bottom plate is descending (Fig. 6).
Fig. 6
To Next Page
