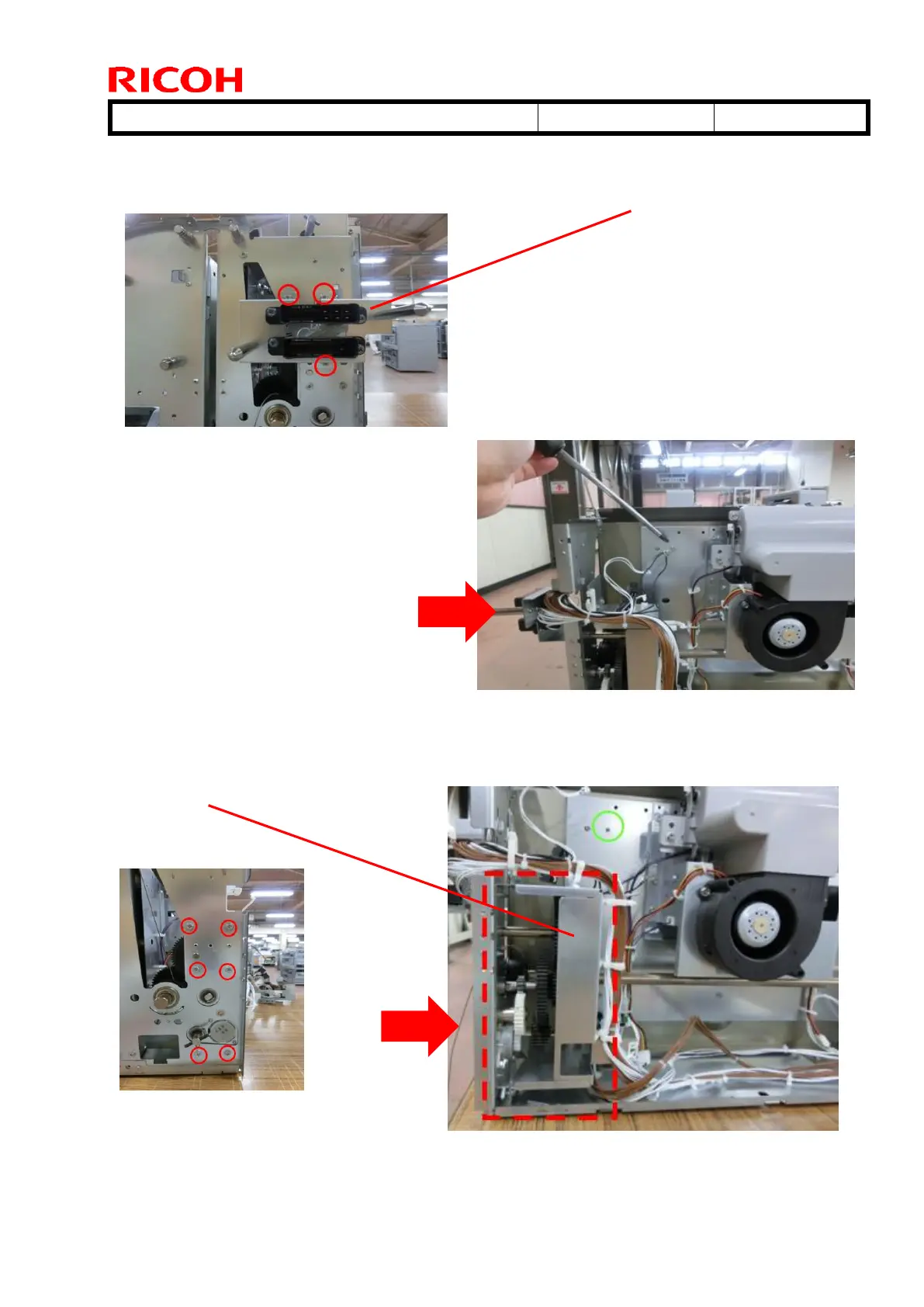

7. Remove the drawer connector bracket [A] (screw x3).
8. Remove the gear box [A] (screw x6).
[A]
View from the direction
indicated with the arrow [B]
[B]
[B]
[A]
View from the direction
indicated with the arrow [B]
