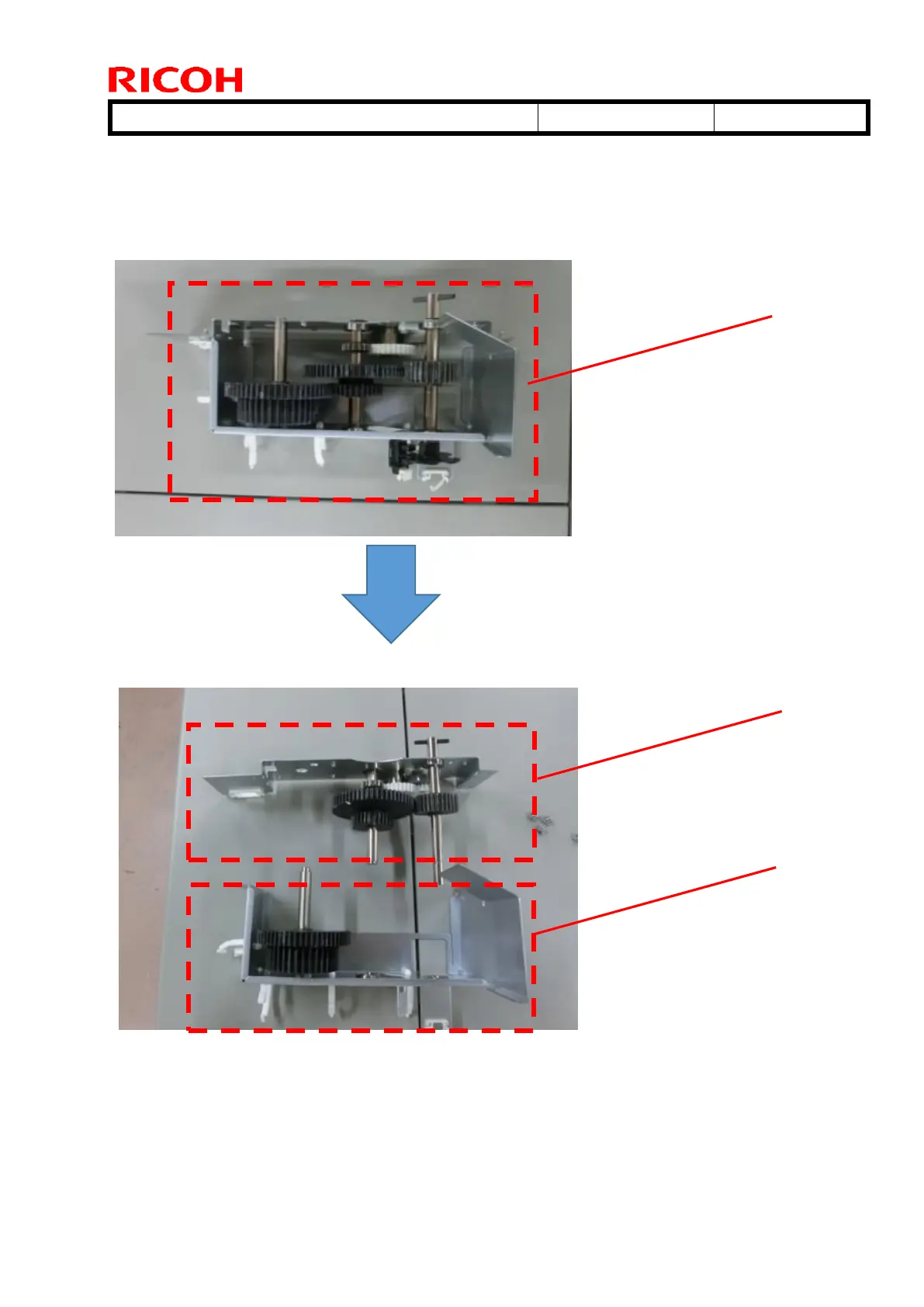

9. Disassemble the gear box [A] as shown below.
 Divide the gear box [A] into the small sub assembly [B] and the large sub assembly
[C] (screw x5, sensor x1, sensor feeler, E-ring x2).
[A]
[B]
[C]
