Technical Bulletin PAGE: 8/12
Model: Vacuum Feed LCIT RT5100
Date: 2-Mar-17
No.: RD777013

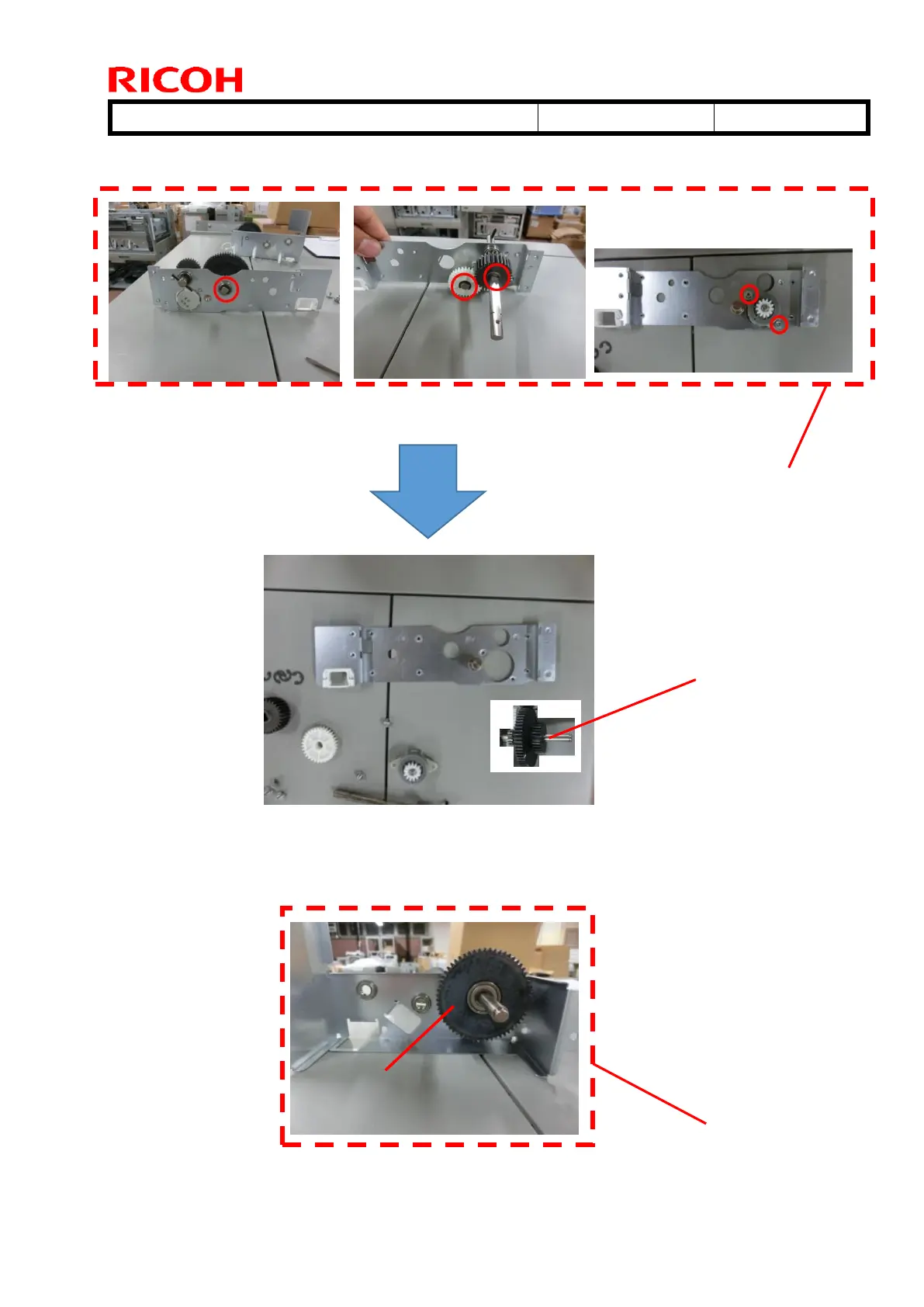

 Disassemble the small sub assembly [B] as follows.
 Remove the gear assembly [D] from the small sub assembly [C] (E-ring x1).
[D]
[C]
[B]
E-ring x1
E-ring x2
Screw x2
Shaft with
three gears
