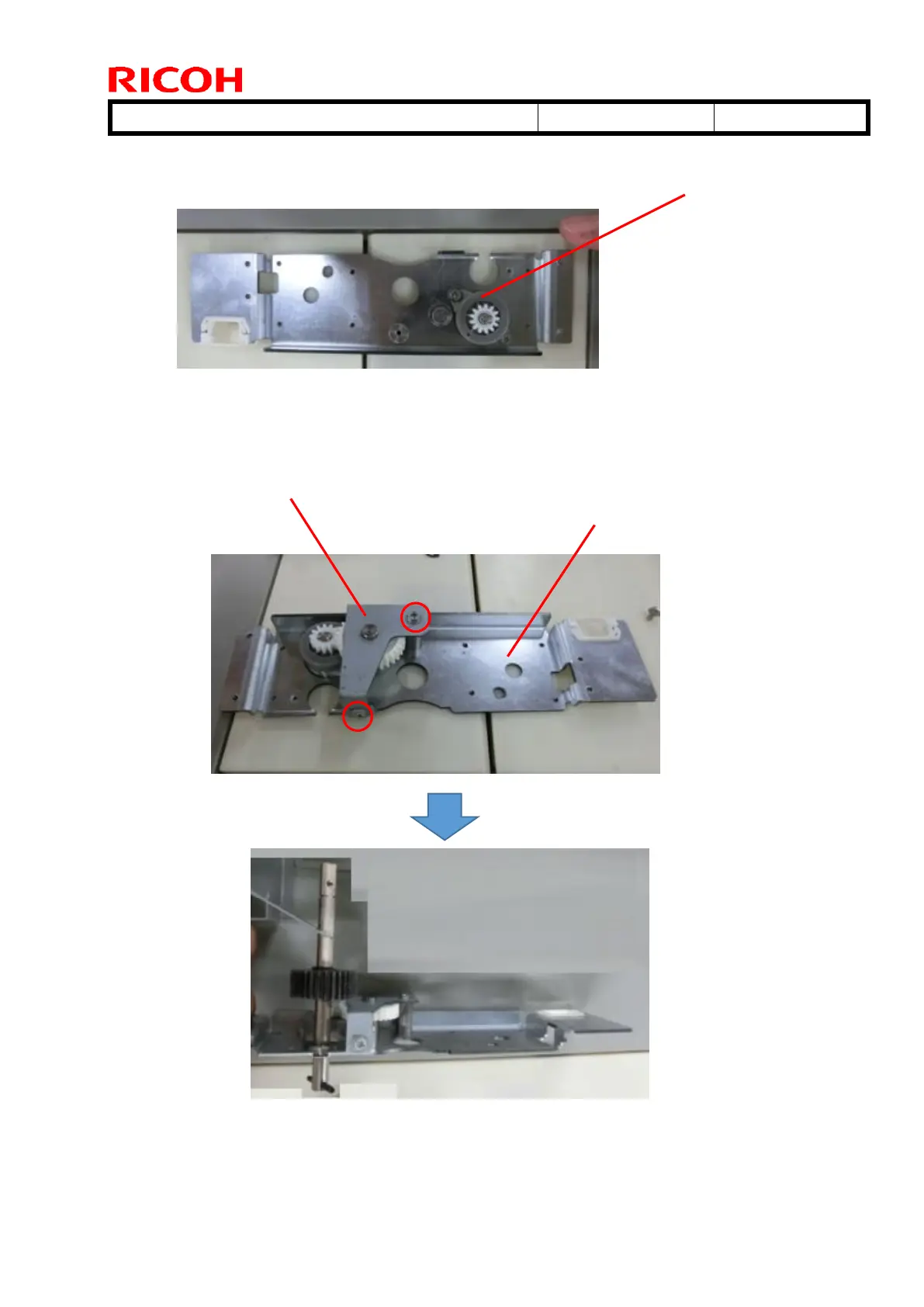

11. Attach the plastic gear [A] (removed in Step 9) to the new type bracket (screw x2).
12. Attach the new bracket [A] (call-out [#2] in the table on page 1) with two screws (call-
out [#4] in the table on page 2) and reattach all remaining parts removed in Step 9
(except for the shaft with three gears) to the new type bracket [B].
[A]
[A]
[B]
