Ricoh Pro C7100

Technical Bulletin PAGE: 11/12
Model: Vacuum Feed LCIT RT5100
Date: 2-Mar-17
No.: RD777013

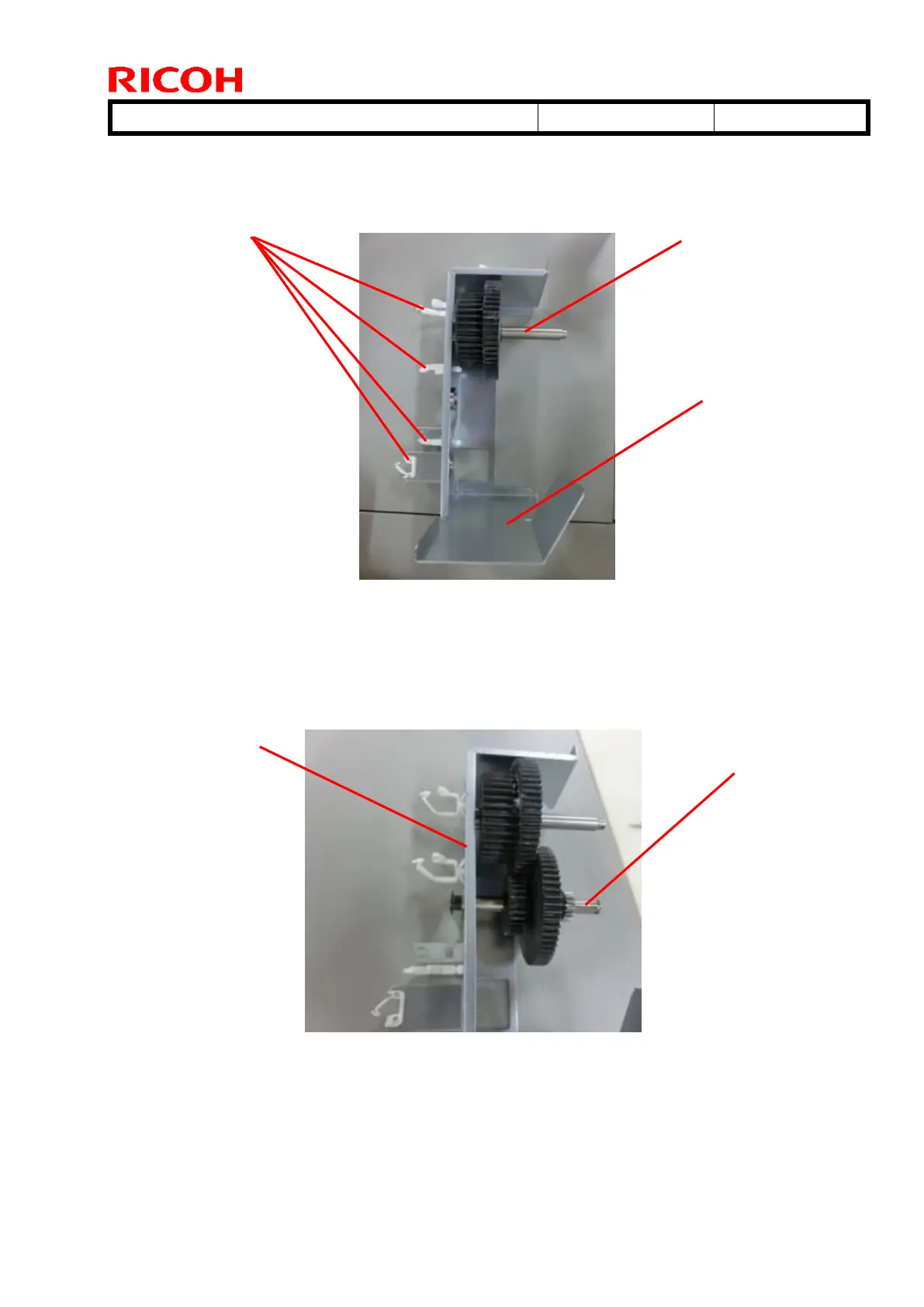

13. Attach the clamps [A] and gear assy [B] removed in Step 9 to the new bracket [C]
(call-out [#3] in the table on page 2).
14. Attach the shaft with three gears [A] removed in Step 9 to the new bracket [B] (call-
out [#3] in the table on page 2).
[A]
[B]
[C]
[B]
[A]
