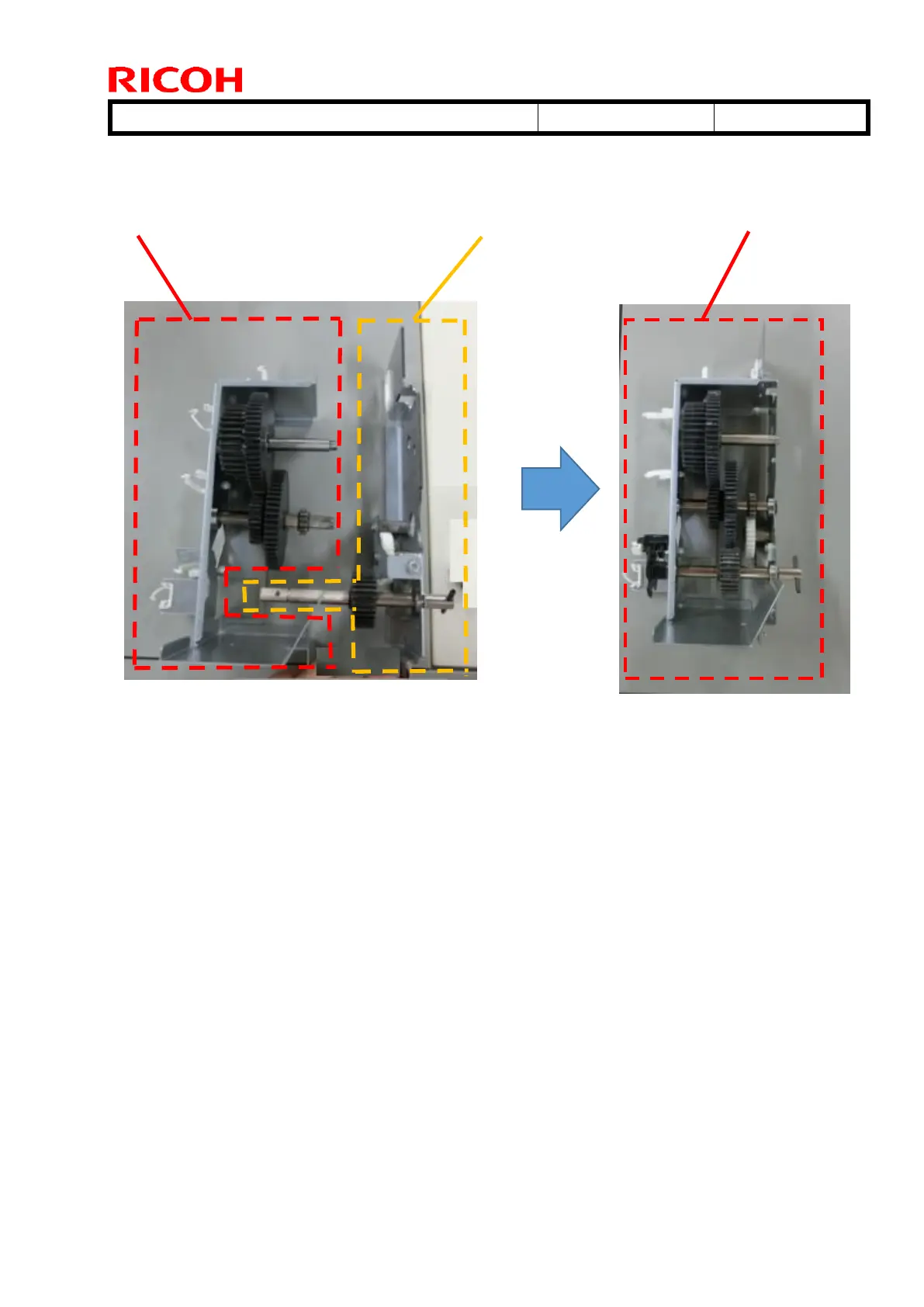

15. Couple the sub assembly units [A] and [B] to reassemble the gear box [C].
NOTE:
Re-install the following components also:
 Bearings (Install the bearings so that the flanges face outside.)
 Feelers and E-rings
16. Reinstall the gear box by following Steps 1-8 in reverse order.
[A]
[B]
[C]
