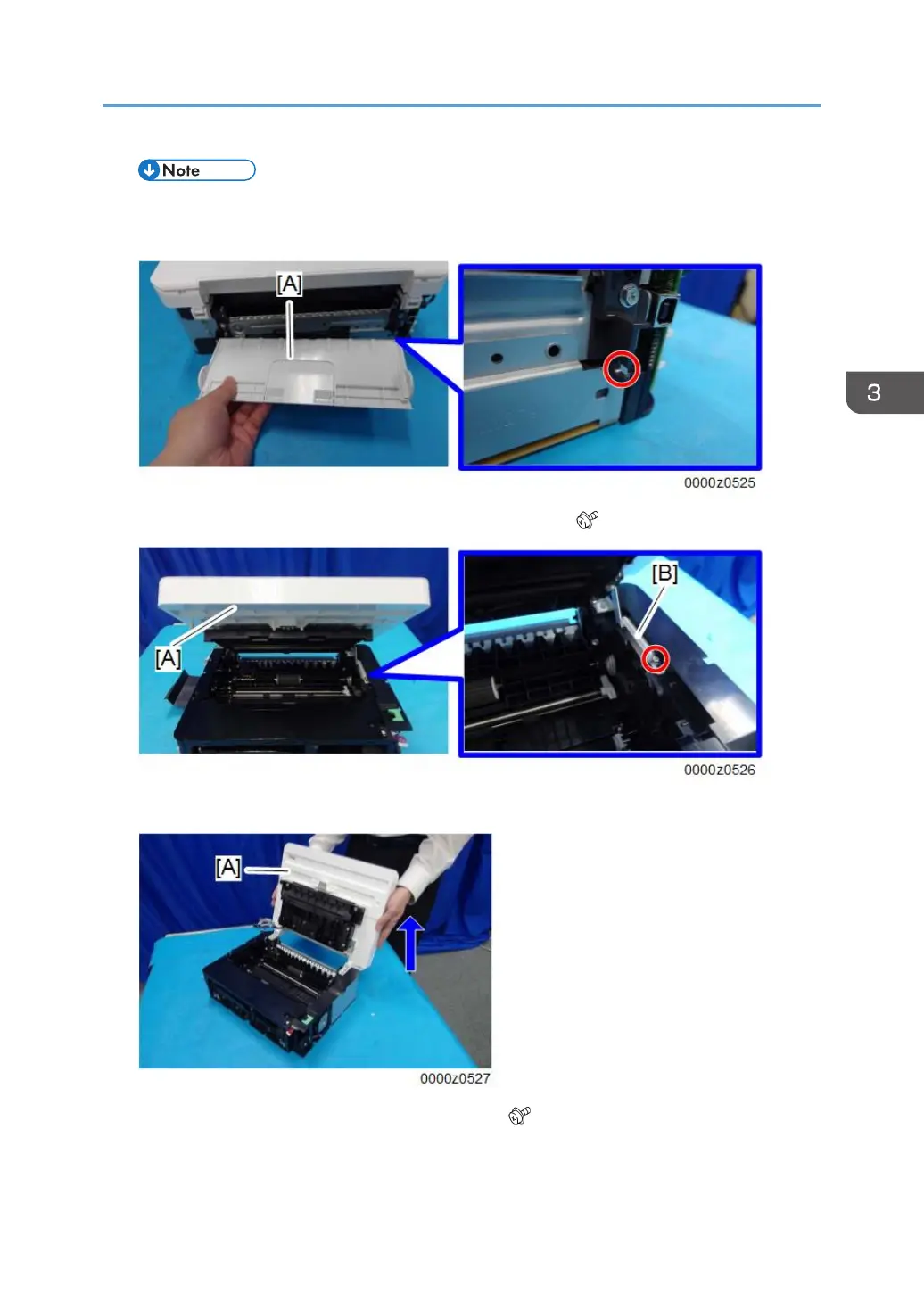

• To remove the paper feed guide [A], release the right linkage first.
6. Remove the rear cover from the right-hand side [A].
7. Open the scanner unit [A] and remove the guide rail [B]. ( x1)
8. Remove the scanner unit [A].
9. Remove the laser unit from the scanner unit [A]. ( x4)
Scanner
49
