CES078

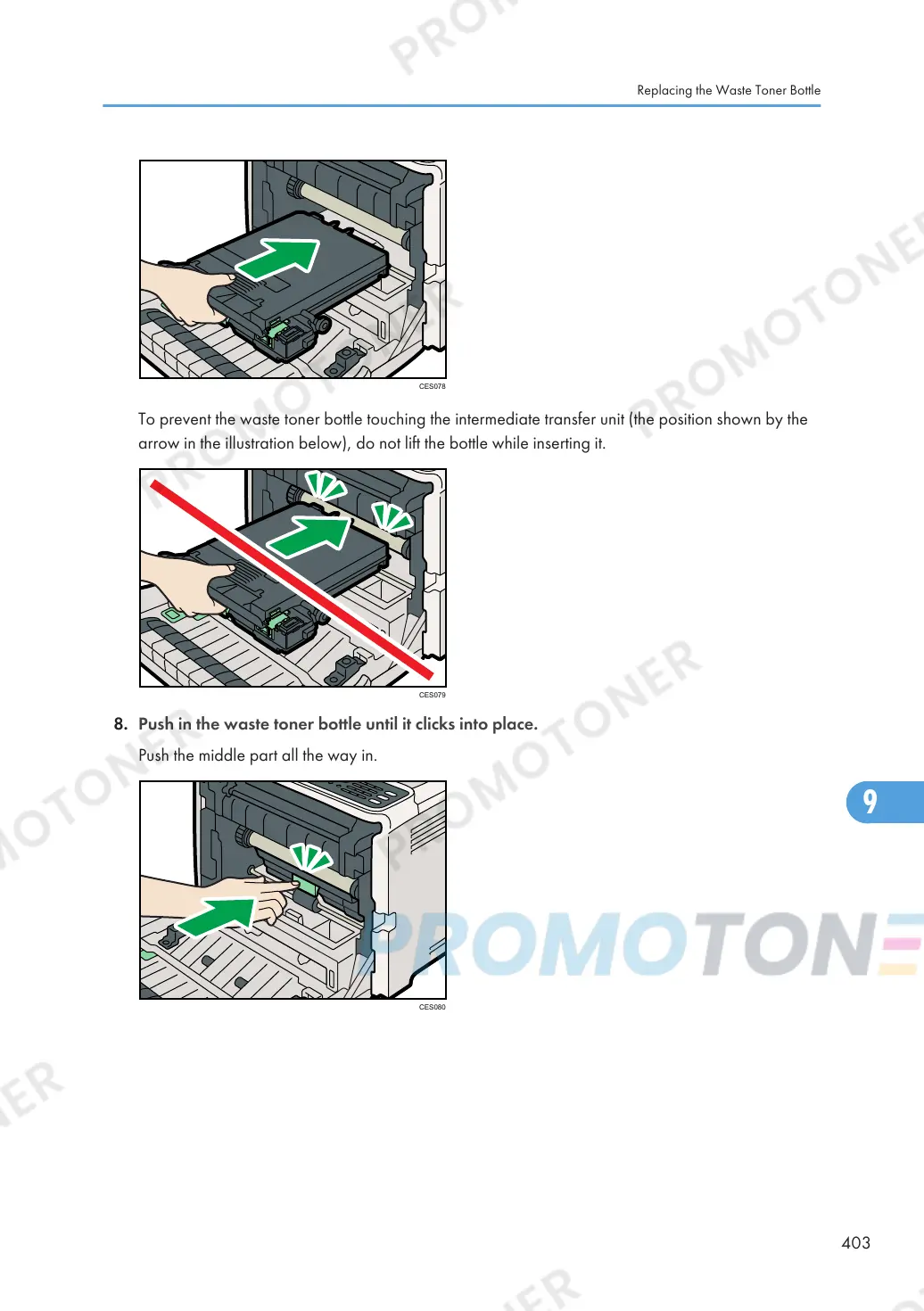

To prevent the waste toner bottle touching the intermediate transfer unit (the position shown by the

arrow in the illustration below), do not lift the bottle while inserting it.

CES079

8. Push in the waste toner bottle until it clicks into place.

Push the middle part all the way in.

CES080

Replacing the Waste Toner Bottle

403
