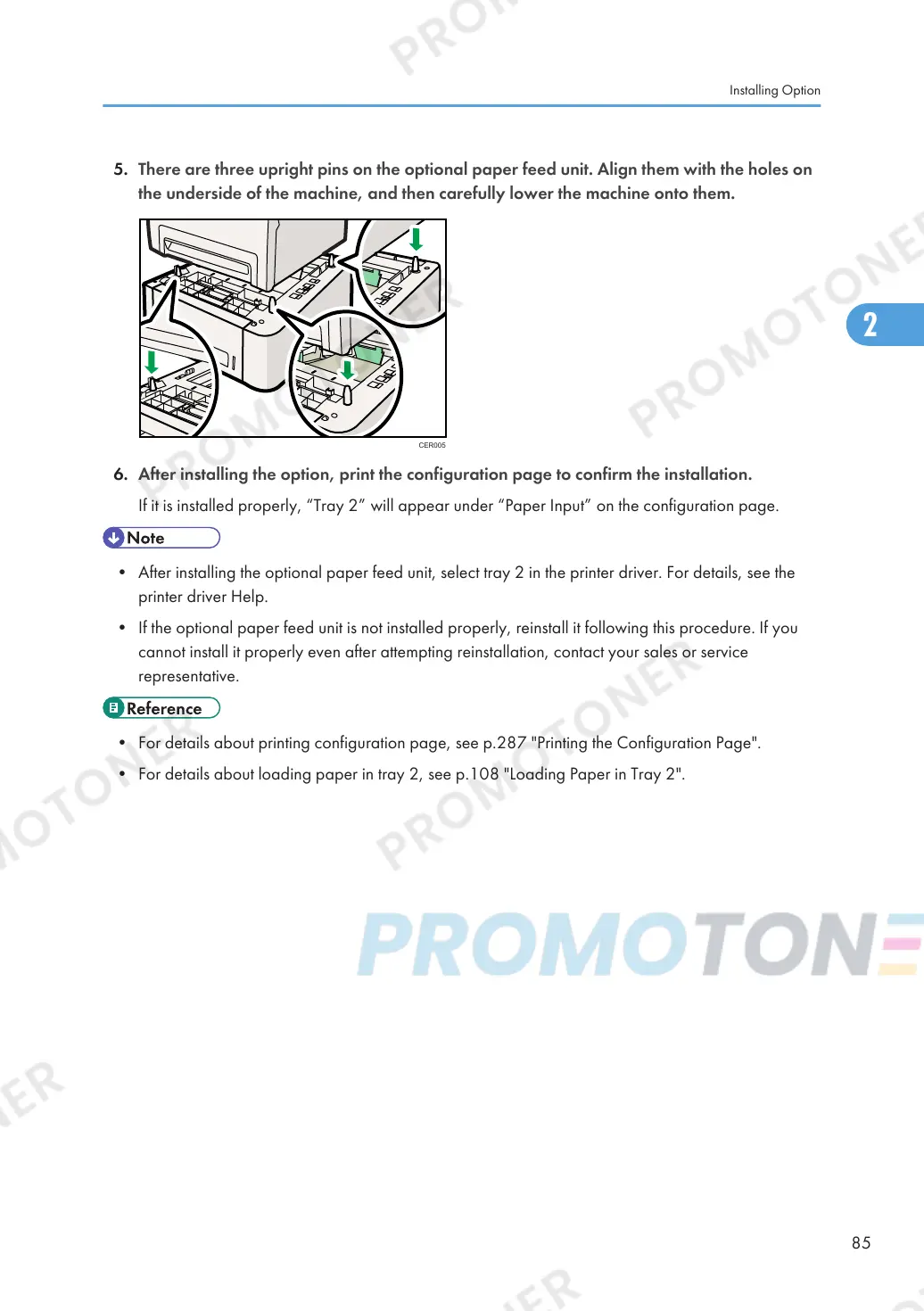

5. There are three upright pins on the optional paper feed unit. Align them with the holes on
the underside of the machine, and then carefully lower the machine onto them.
6. After installing the option, print the configuration page to confirm the installation.
If it is installed properly, “Tray 2” will appear under “Paper Input” on the configuration page.
• After installing the optional paper feed unit, select tray 2 in the printer driver. For details, see the
printer driver Help.
• If the optional paper feed unit is not installed properly, reinstall it following this procedure. If you
cannot install it properly even after attempting reinstallation, contact your sales or service
representative.
• For details about printing configuration page, see p.287 "Printing the Configuration Page".
• For details about loading paper in tray 2, see p.108 "Loading Paper in Tray 2".
Installing Option
85
