Ricoh SP C250DN

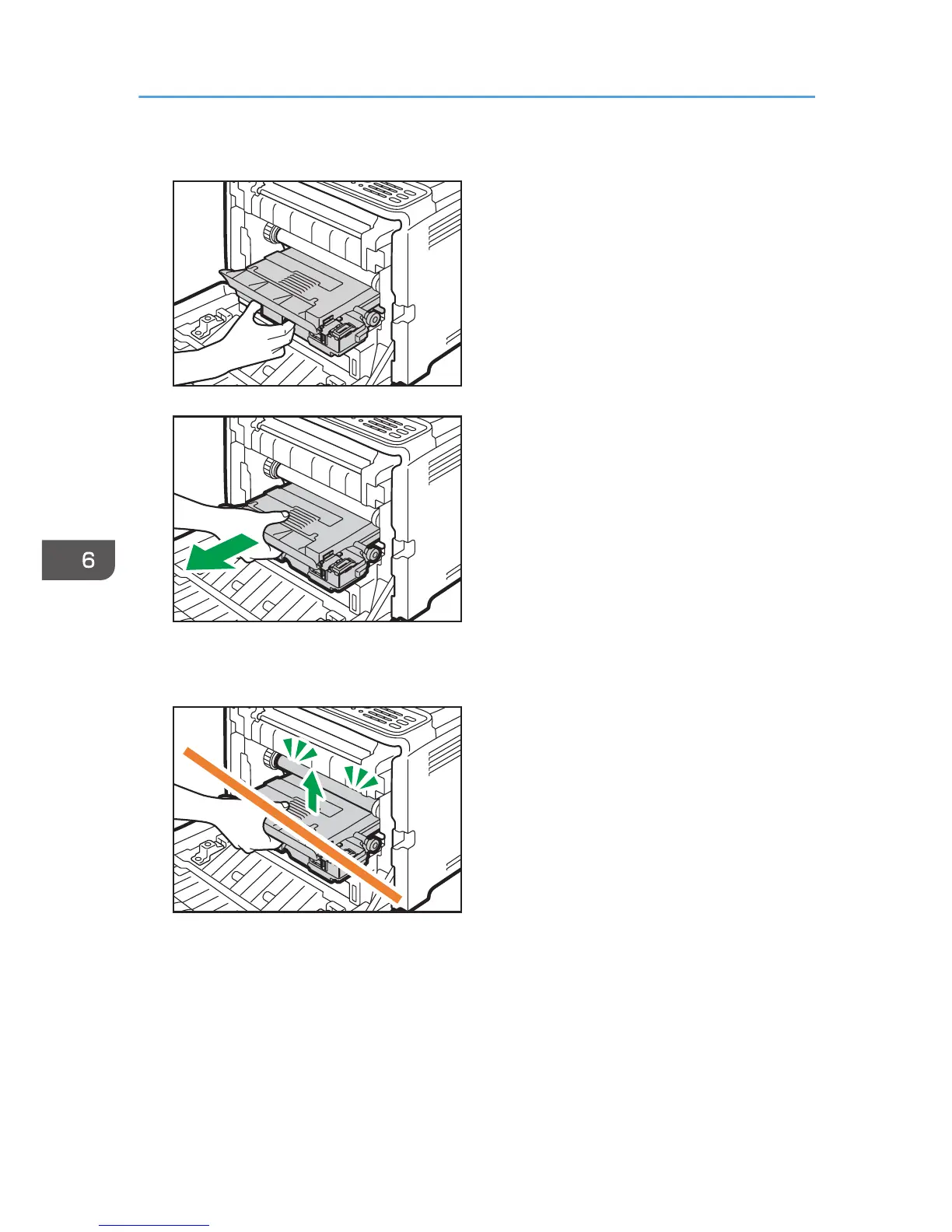

5. Pull the waste toner bottle halfway out, hold the bottle firmly, and then pull it straight out.
DAC077
DAC078
To prevent the waste toner bottle from coming into contact with the intermediate transfer unit (the
position shown by the arrow in the illustration below), do not lift the bottle while pulling it out.
DAC081
6. Maintaining the Machine
136
