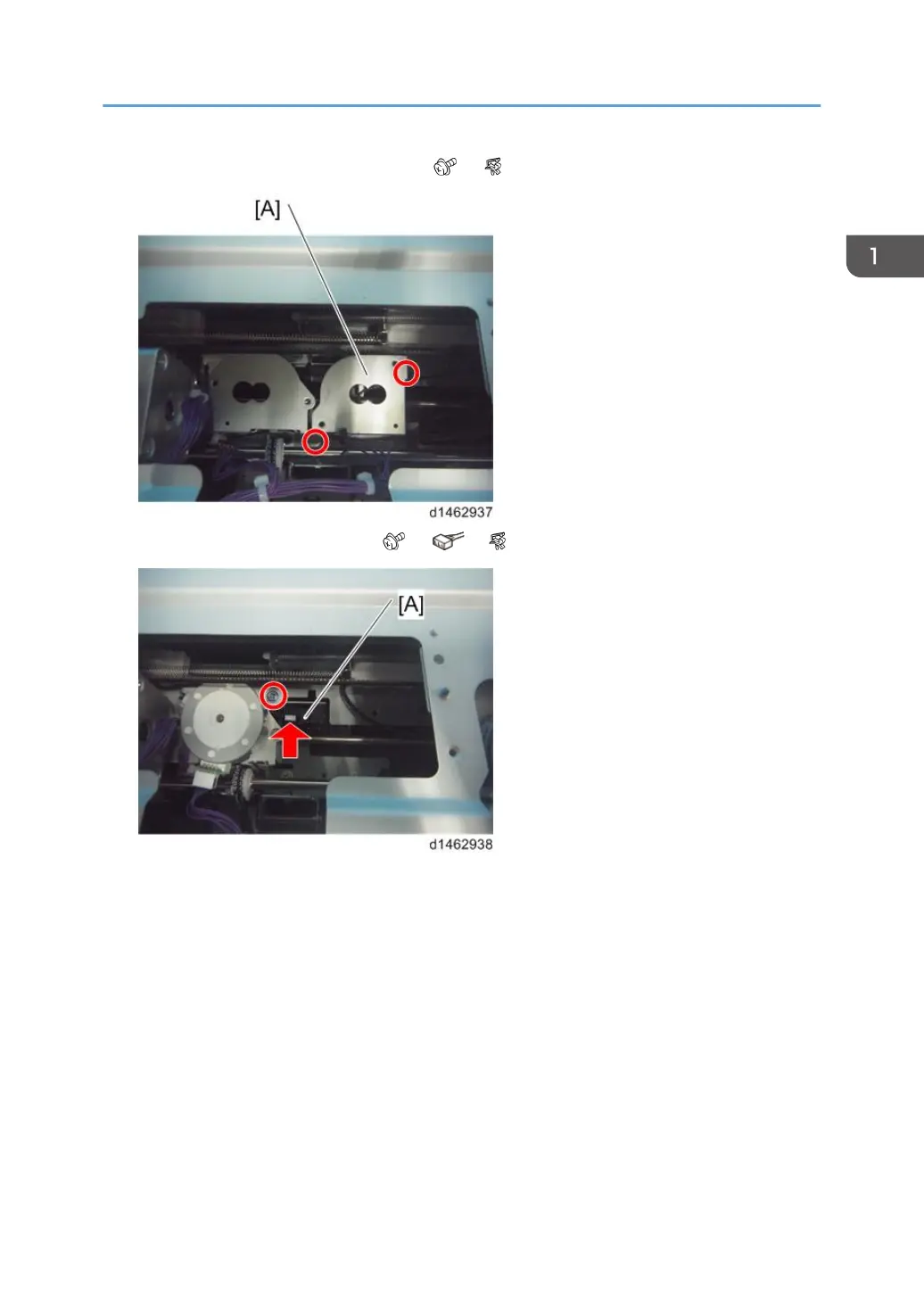

2. Jogger fence motor (rear) bracket [A] ( ×2, ×3).
3. Paper detection sensor unit [A] ( ×1, ×1, ×1).
Sensors
31
