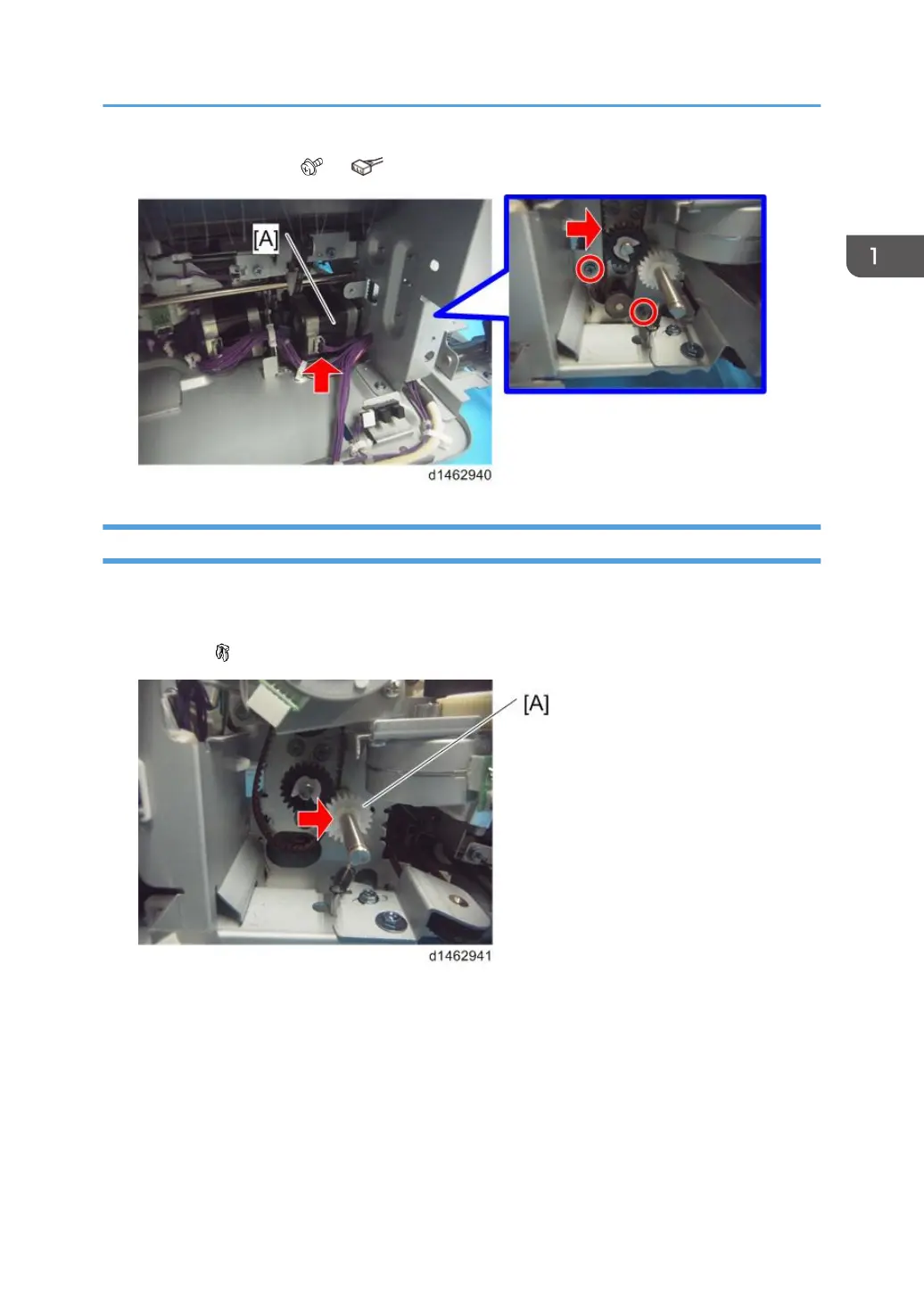

5. Transport Motor [A] ( ×2, ×1, Timing belt×1)
Paper Output Motor
1. Transport motor (page 42)
2. Control board bracket (page 16)
3. Gear [A] ( ×1)
Motors
43
