Ricoh SR3130 - Stapler Displacement Motor

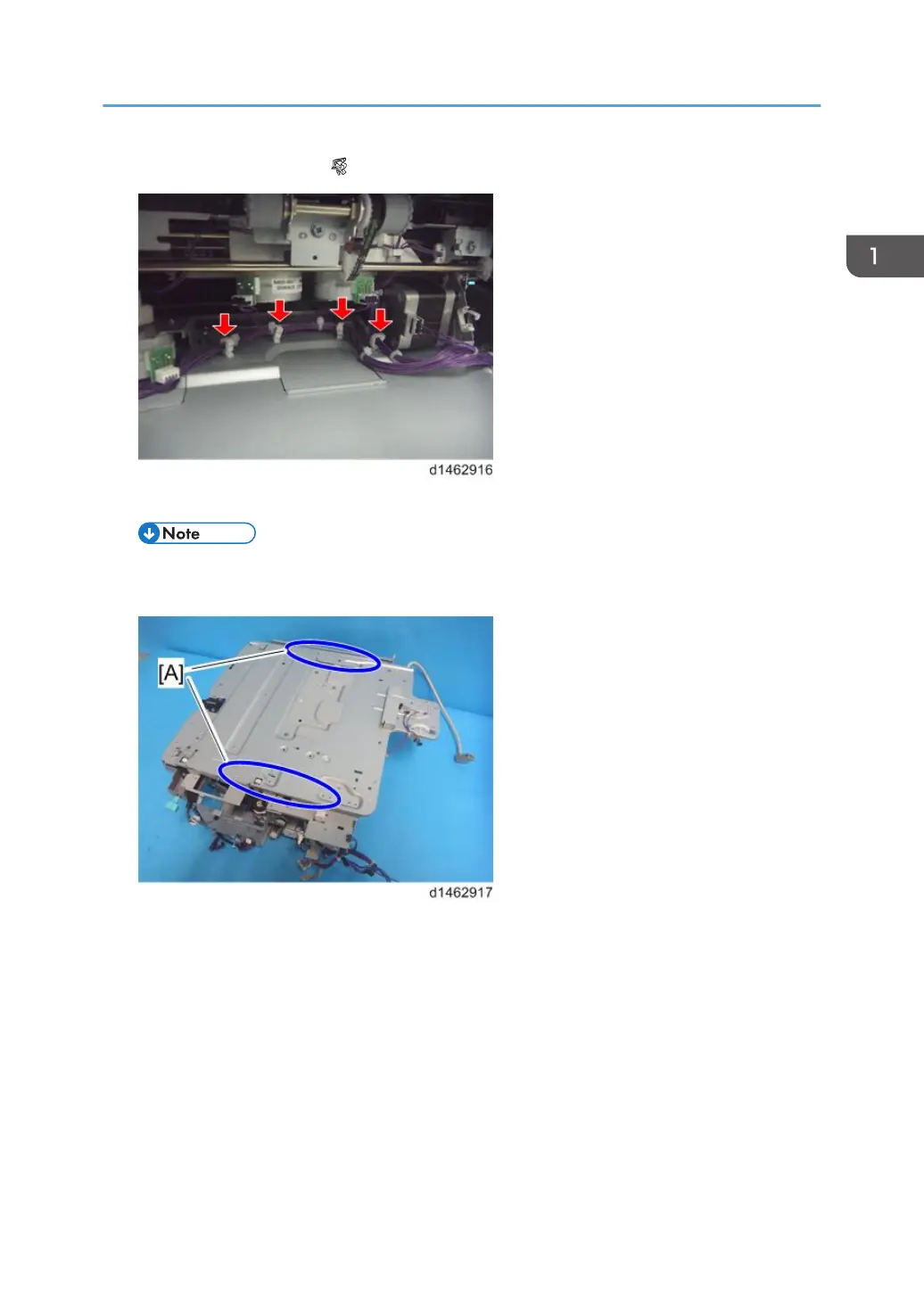

2. Remove the four clamps ( ×4).
3. Place the inner finisher upside down on the table with holding the parts below [A].
• Hold the parts [A] shown below to lift the inner finisher. Otherwise, other brackets and parts
may be deformed.
Motors
39
