Ricoh SR3130 - Jogger Fence Motor (Front)

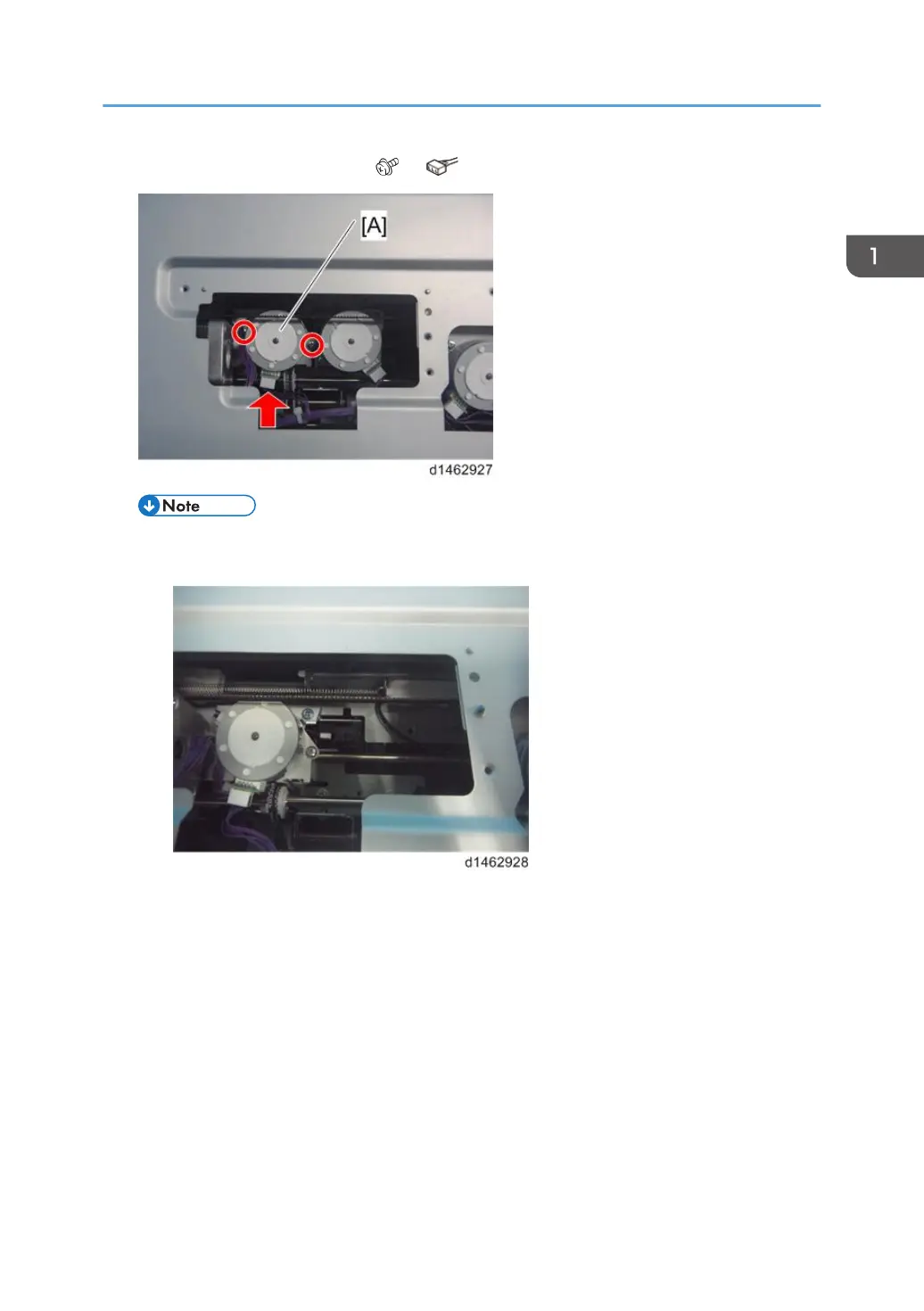

2. Jogger fence motor (front) [A] ( ×2, ×1, Timing belt×1)
• During attachment, remove the jogger fence motor (rear) bracket, and check that the motor
pulley has not separated from the timing belt.
Motors
41
