Repair Parts
Parts List for RIDGID 15" Drill Press
Model No. DP15501

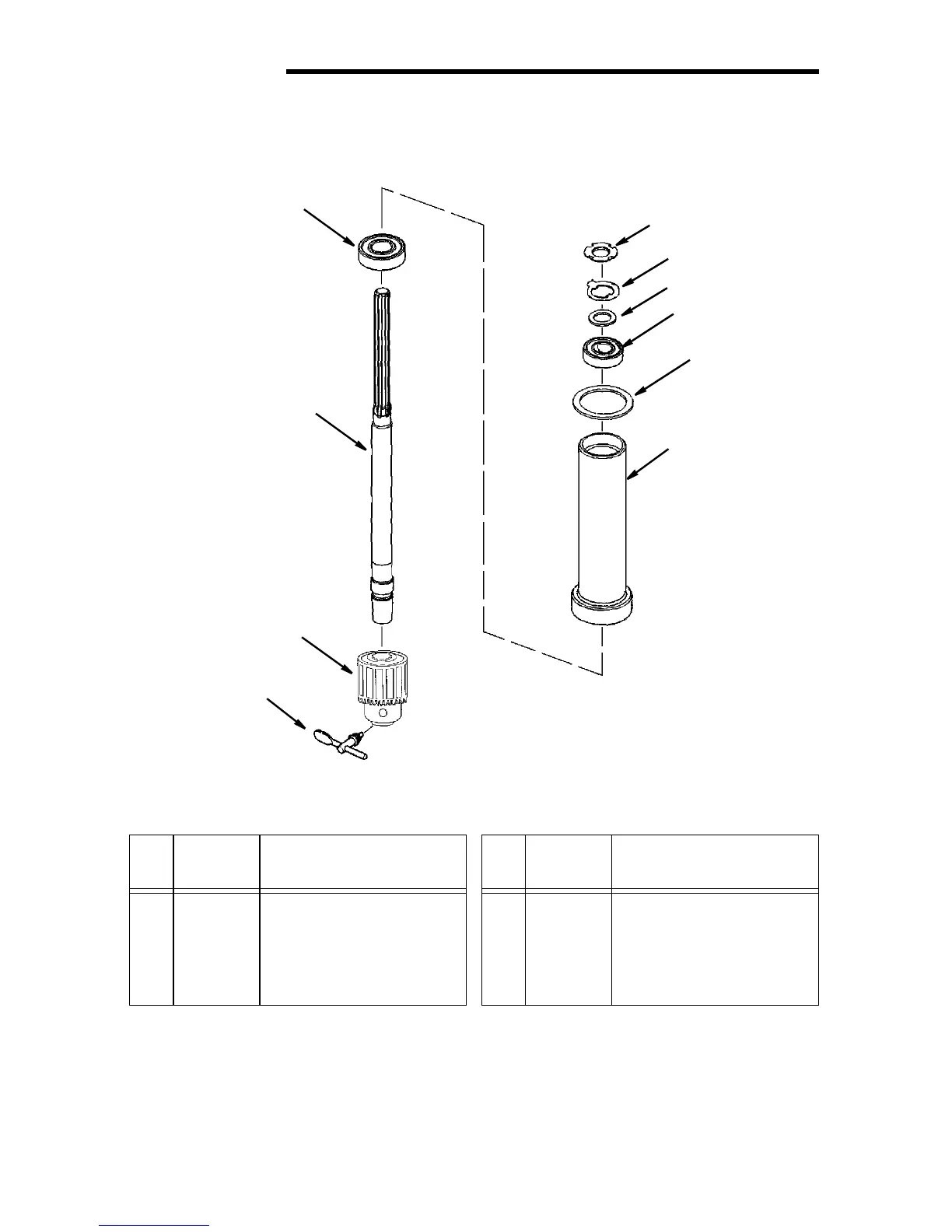

Figure 3
Always order by Part Number - Not by Key Number
1
2
3
4
5
6
7
8
9
10
Key
No.
Part No. Description
1
2
3
4
5
817309
817310
817311
813480
817535
Lock Nut M17 x 1.0
Ring Locking
Washer
Bearing Ball 17mm
Gasket Quill
Key
No.
Part No. Description
6
7
8
9
10
828875
817339
817340
828908
817529
Tube Quill
Key Chuck
Chuck
Spindle
Bearing Ball
