Repair Parts
Parts List For RIDGID 12" Compound Miter Saw
Model No. MS12502
RIDGID parts are available on-line at www.ridgidparts.com

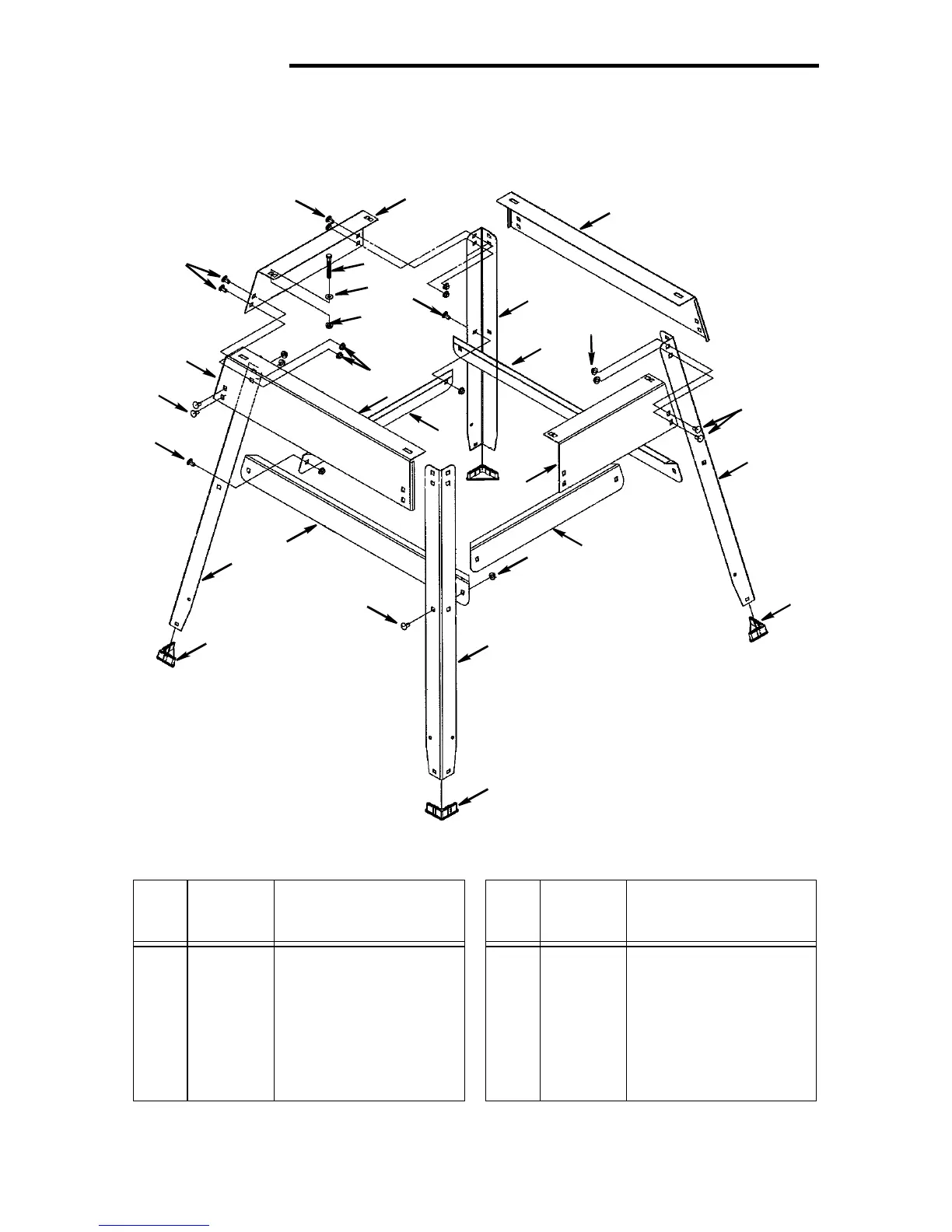

Figure 5 - Legset
Always order by Part Number - Not by Key Number
* Standard hardware item - May be purchased locally.
— Items Not Illustrated
1
2
3
4
5
6
7
8
9
10
4
4
4
2
3
3
5
5
5
6
6
7
3
1
2
8
4
4
4
Key
No.
Part No. Description
1
2
3
4
5
6
829620
829621
827566
825780-1
829624
829619
Short Upper Stiffener
Long Upper Stiffener
Nut Hex Flanged 5/16-18
Carriage Bolt
5/16-18 x 5/8
Leg
Foot
Key
No.
Part No. Description
7
8
9
10
—
829623
829622
805467-13
819198
829625
Short Lower Stiffener
Long lower Stiffener
Screw Hex Hd
5/16-18 x 2-1/2
Washer
Bag Asm
(Leg Set Hardware)
