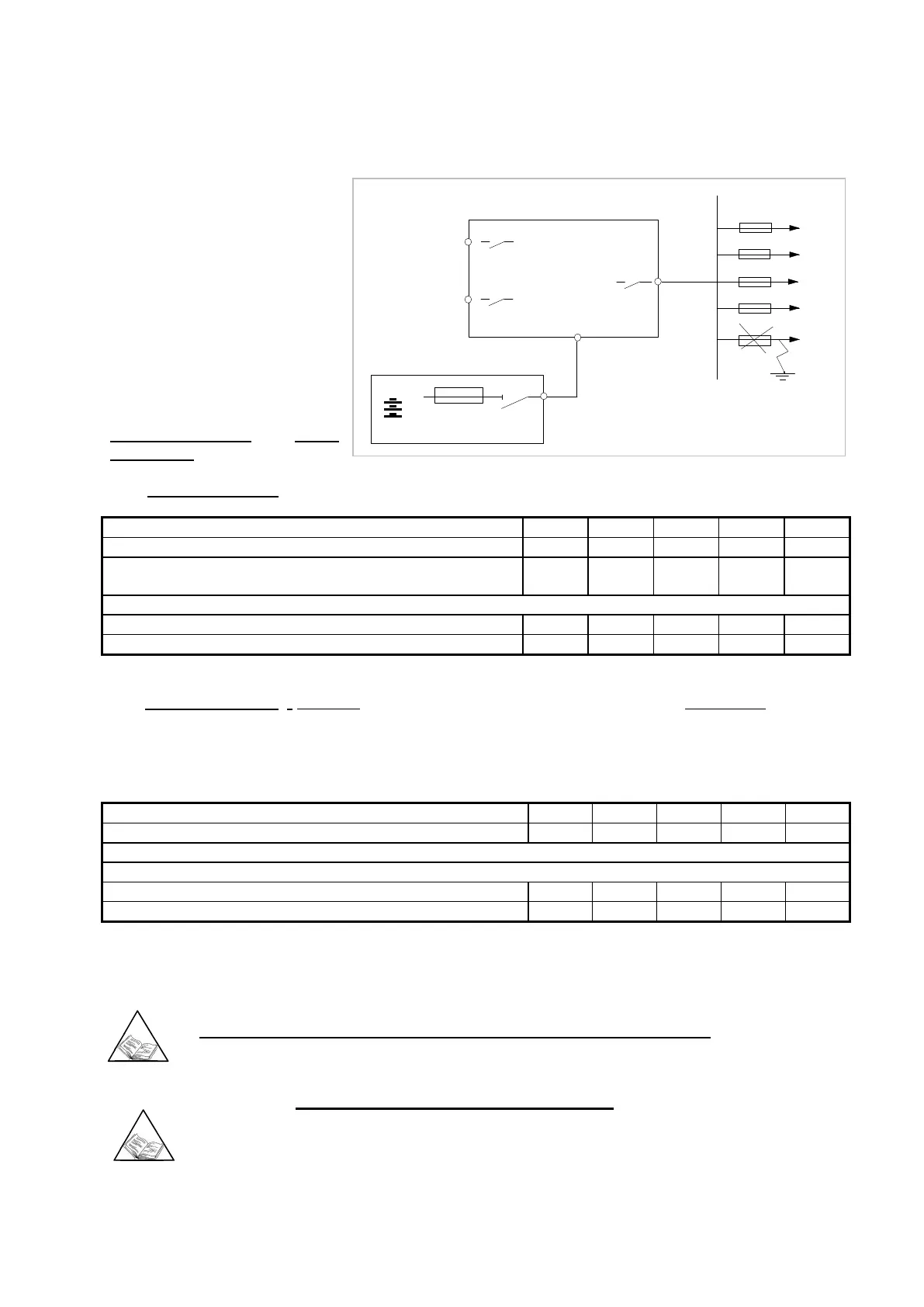

3.1.2 Selectivity
The system where the UPS is inserted must be set up in such a way that in the event of a shortcircuit on one of the
lines downstream of the UPS, the
fuse on the output opens while the
upstream fuse normally works. This
is known as selectivity, and ensures
that the remaining feeders maintain
the power supply.
In order to select the correct
protection devices to be inserted
downstream of the MASTER HE ,
the following two operating modes
have to be taken into consideration:
mains power supply and battery
power supply.
With mains power supply the output fuse must be selective with the input fuse; the condition is verified for the
following values:
[kVA]
300
400
500
600
800
Rated output current: [A]
433
578
722
867
1155
Type gG fuse used at the UPS input
(as shown in the table of connections) [A]
500
630
800
1000
1250
Maximum fuse at the UPS output for selectivity:
Fuse size for type gG fuse [A]
315
400
500
630
800
Fuse size for type aM fuse [A]
200
250
315
400
500
At least two feeders are necessary in order to use the UPS at rated load with fuses of type gG.
With battery power supply ( first fault) in the event of a shortcircuit on one of the outputs (second fault) it must be
possible for the fuse to be open before the inverter shuts down.
If the shortcircuit is of the three-phase type, the inverter can supply a current for 1 second that is 1.8 times the value
of the rated current of the UPS output (with a single phase shortcircuit the current is around 3 times the value).
In the worst-case scenario, that is a three-phase shortcircuit then a smaller current, the condition occurs if:
[kVA]
300
400
500
600
800
Rated output current: [A]
433
578
722
867
1155
Shortcircuit current (three-phase) 1.8 times the rated output current for 1 second
Maximum fuse at the UPS output for selectivity:
Fuse size for type gG fuse [A]
125
125
160
200
250
Fuse size for type aM fuse [A]
80
100
125
160
200
At least five feeders are necessary in order to use the UPS at rated load with fuses of type gG.
To sum up, when there is a shortcircuit on the output, there are two alternatives if only the line affected by the
shortcircuit is to be isolated; let us consider the example of the 300kVA:
selectivity with both mains power supply and battery power supply;
the load has to be shared between at least five feeders, each sized at 20% of the rated power.
selectivity, with mains power supply only:
since it is considered unlikely that after a first fault a second fault will occur in the limited time of
operation from the battery, it is sufficient to share the output between two lines, each sized for
50% of the rated power.
