Riello UPS MASTER HP - Section 4; Installation And Assembly Of Battery Blocks; Battery Assembly Mode



0ML190480RUENUC  page11/24


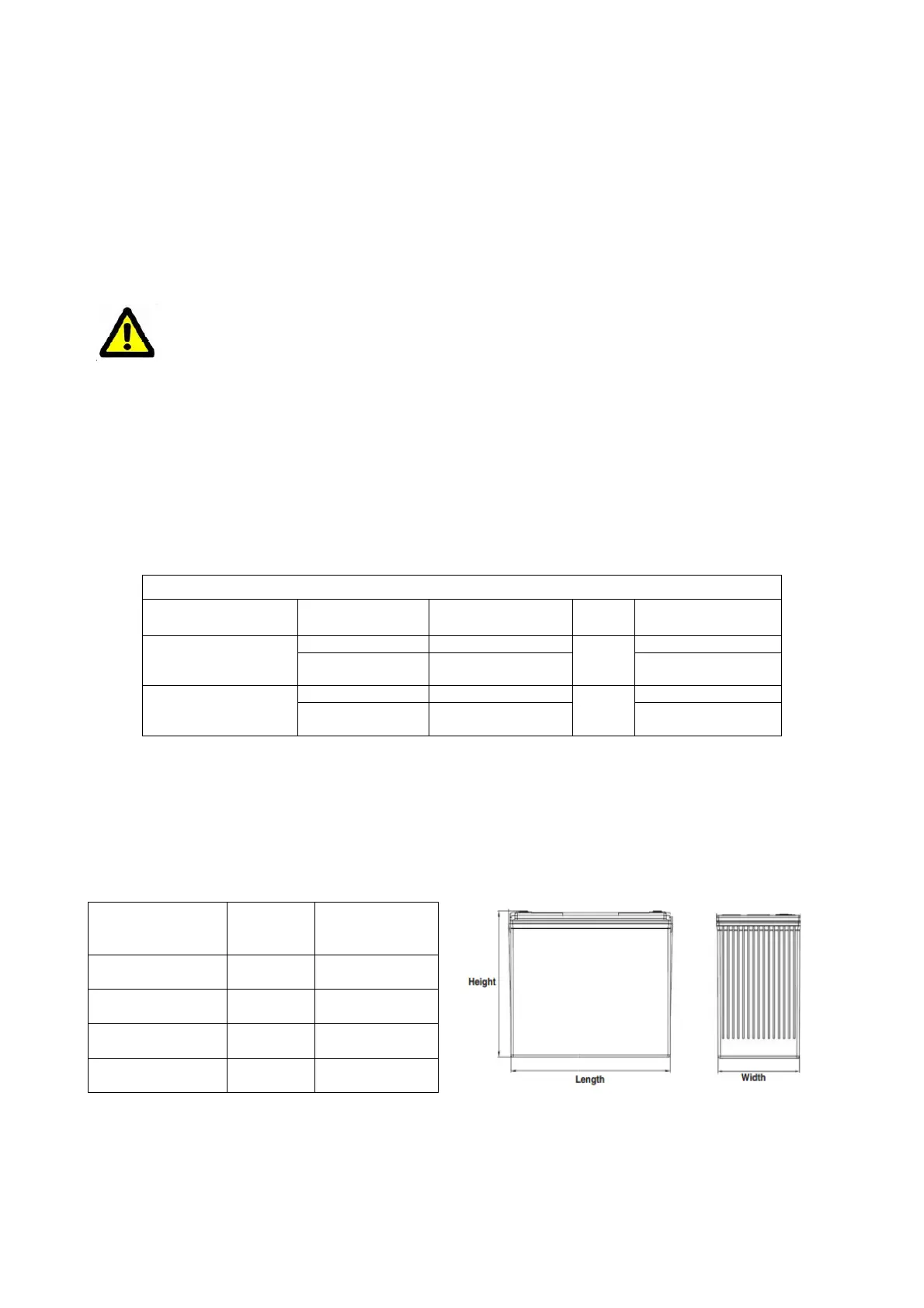

SECTION4
INSTALLATION AND ASSEMBLY OF BATTERY BLOCKS
The following operations must be performed by properly trained and qualified personnel,
within a suitable area with no access to other people
WARNING!
When all the cells are connected, the voltage to the terminals could exceed 500Vdc and it is dangerous.
Risk of electric shock or burns due to accidental short circuits
Appropriate eye protection must be worn to prevent injuries from accidental electrical arcs
Risk of electrolyte leakage from batteries.
Appropriate protective clothing and accident prevention shoes must be worn to handling batteries
Remove all metal wearable objects (rings, watches, bracelets, necklaces…)
Appropriate eye protections must be worn
Tools with insulated handles only must be used
If electrolyte, leaking from batteries, comes into contact with the skin, wash immediately the part with
abundant clean water
Type of batteries to be used
Cabinet size /
model
Manufacturer P/N
n. of
units
Cells per unit /
unit rated voltage
100 Ah / BBX 1900
480V UL L8 3U
CSB BATTERY HRL 12390W-FR
40
6 / 12
FIAMM
12 FLX400
12FLB400
6 / 12
55 Ah / BBX 1900
480V L6 3U
CSB BATTERY HRL 12200W-FR
40
6 / 12
FIAMM
12 FLX200
12FLB200
6 / 12

BATTERY ASSEMBLY MODE
Followingthestepsbelow,mount8batteriesforeachofthe5trays.40batteriesintotal


Batter
y

dimensionsmax
55Ah 100Ah
Lmm[in] 229[9,01] 344.5[13.56]
Hmm[in] 212[8.35] 220[8.66]
Wmm[in] 138[5,43] 174[6.85]
Weightkg[lb] 18[39,7] 35.5[7.2]




