INSPECTING THE EQUIPMENT
If Battery cabinet is not provided with battery blocks installed:
Remove all panels (front, rear, left and right side).

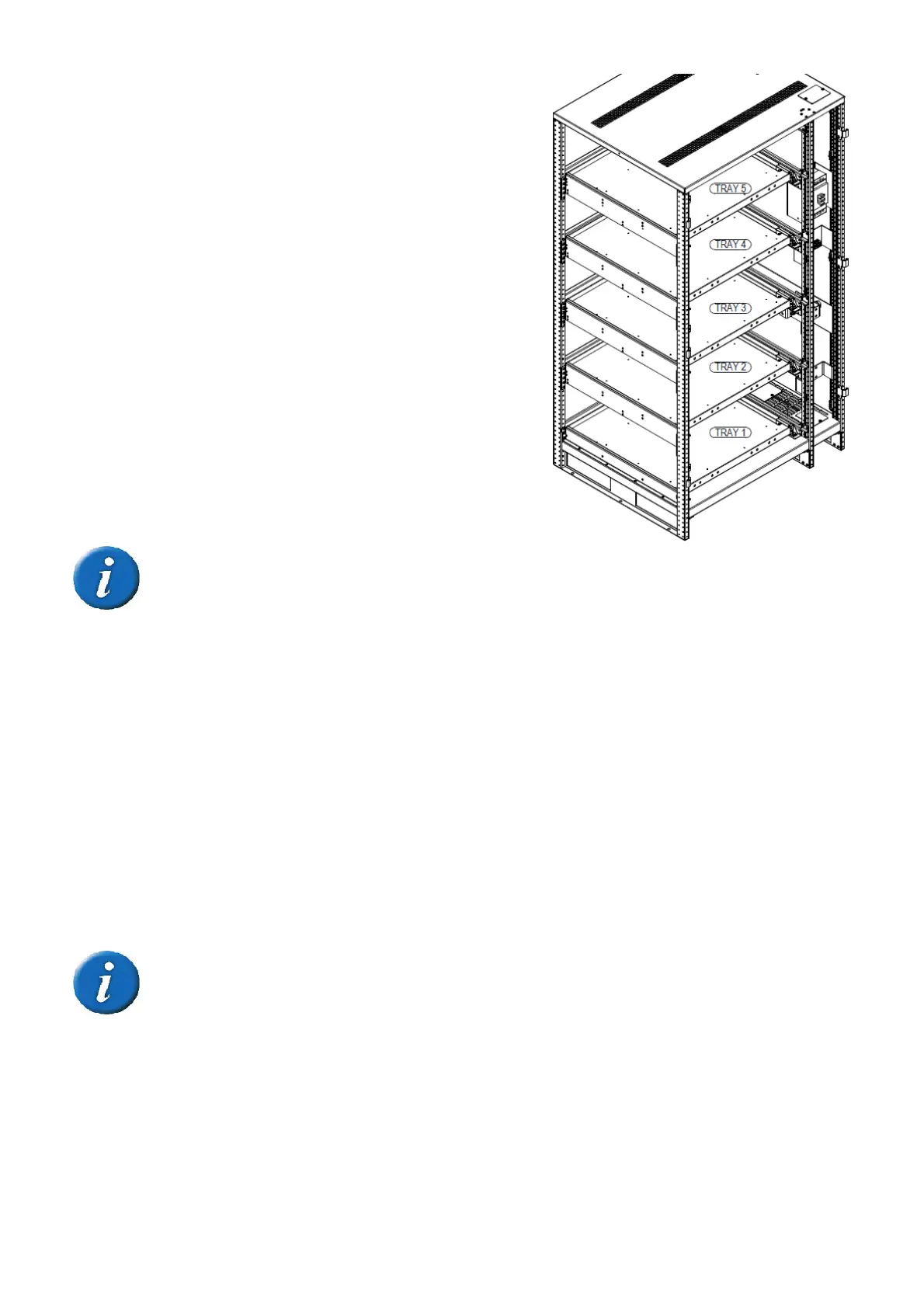

See in the figure the appearance of the cabinet without panels.
The components used for the assembly of battery blocks are always provided and you’ll find
the followings inside the cabinet:
Pos.#
1) Cable 1/0 or #2x1/0 AWG length 360mm (14.17 in.) crimped to “green” or “grey” connector at one
side - 6pcs
2) Cable 1/0 or #2x1/0 AWG length 360mm (14.17 in.) crimped to “red” connector at one side – 2pcs
3) Cable 1/0 or #2x1/0 AWG length 360mm (14.17 in.) crimped to “blue” connector at one side – 2pcs
4) Red and black cable #2x 22 AWG style 1015 800mm (31.5 in.)
5) Shielded cable #2x 22 AWG style 4516 25m (82 ft) (Option)
6) 2 x Cable #2x22 AWG style 2516
7) Cu busbar marked “1” N. 10
8) Cu busbar marked “2” N. 20
9) Cu busbar marked “3” N. 5
10) Cu busbar marked “4” N. 10
11) Screws washers and spring washer to connect busbars to battery terminals
12) Insulated tubing to protect battery terminal connections (cut into 10 pieces about 100mm-3,9 ft-long)
13) Cable tie to close insulated tubing n. 20
14) Straps to secure battery blocks n. 25
15) Insulating sheet – 5pcs
If Battery cabinet is provided with battery blocks installed, don’t remove panels.
Find position 5) and 6) only.
Go to section 5
