0ML190480RUENUC page9/24
2) Remove N.6 10mm lag bolts securing the cabinet to the pallet. (N.3 for side see Fig. 2).
3) See Fig. 3 to identify the correct area for the insertion of the forks.
4) Make sure forks are at maximum separation
5) Keep the people out of the area of possible fall of the cabinet, during unloading and through path of
destination.
6) Lift the cabinet with forklift 1or 2 inches 1”- 2” (2.5-5cm) from the floor level
7) Carefully move the cabinet to location where will be installed and slowly drop-off it to the floor or
other appropriate flat surface.

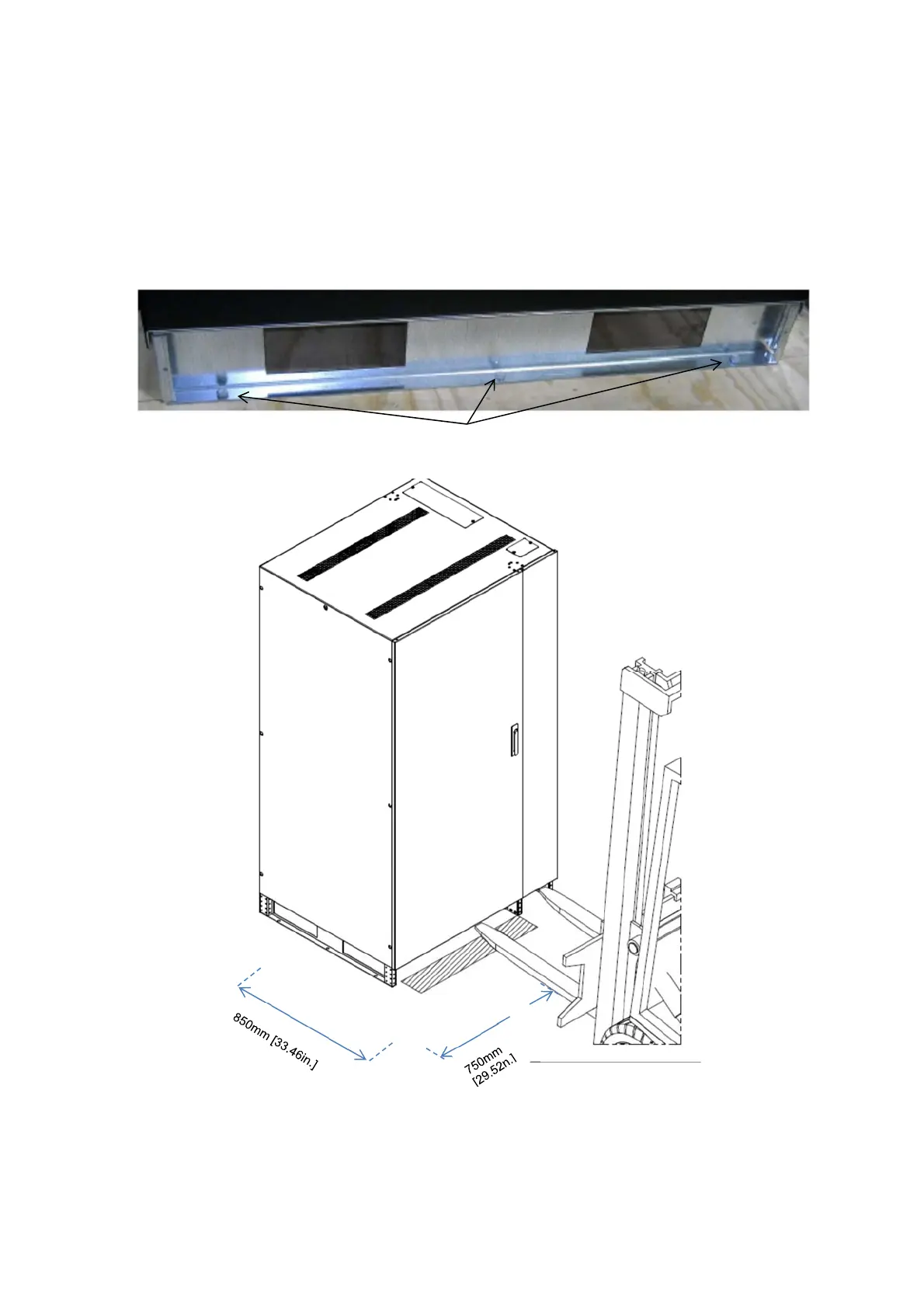

Fig.2‐lagbolts
Fig.3‐positiontheforksintheindicatedarea
