Riello BS2D - Control of Burner Characteristics; Operating Position

20135737
16
GB
Installation

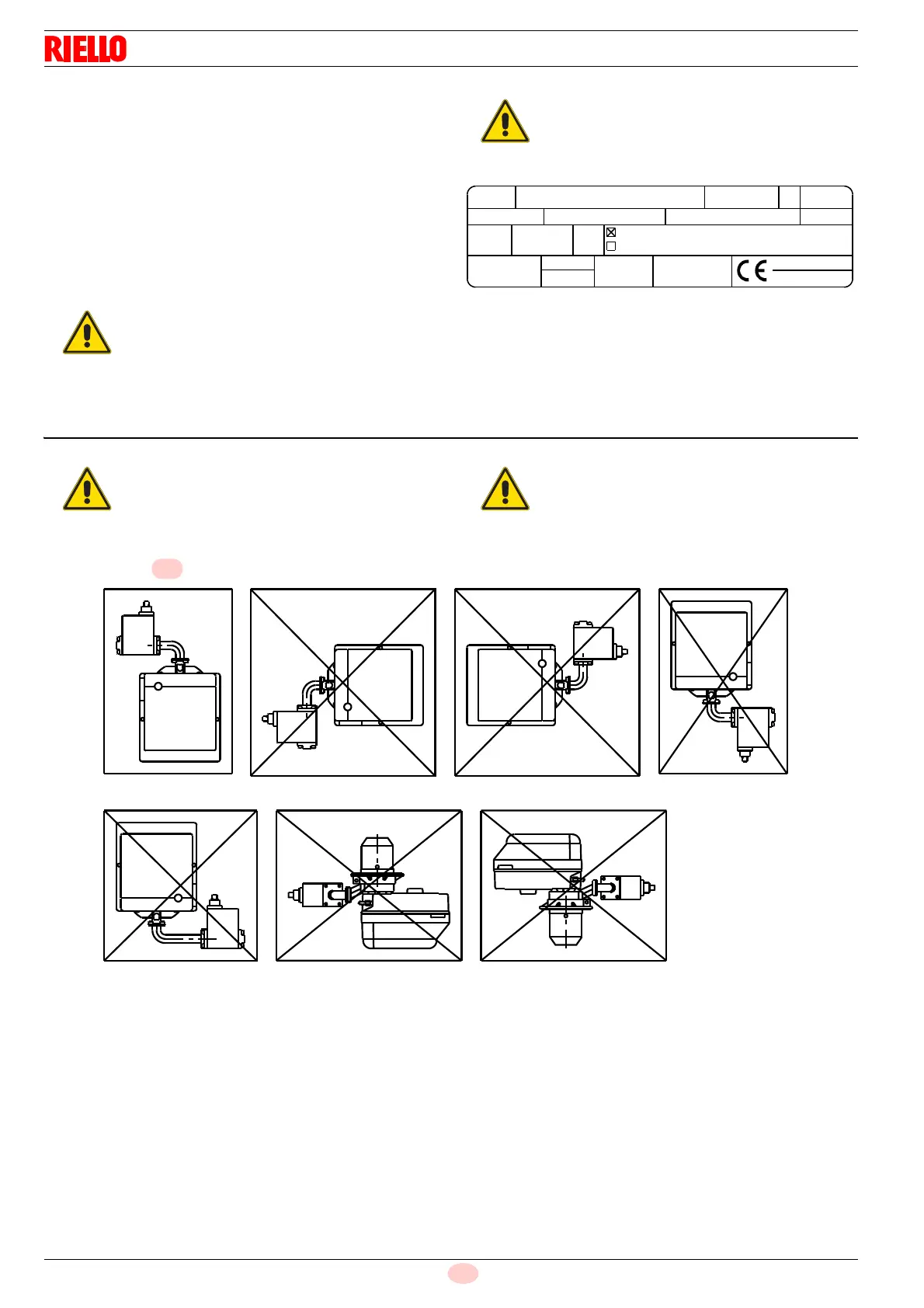

5.4.2 Control of burner characteristics
Check the identification label of the burner(Fig. 7), showing:
A the burner model
B the burner type
C the cryptographic year of manufacture
D the serial number
E the data for electrical supply and the protection level
F the electrical power consumption
G the data of the burner's minimum and maximum output pos-
sibilities (see Firing rate)
Warning. The burner output must be within the boiler's firing
rate.
5.5 Operating position
WARNING
A burner label that has been tampered with, re-
moved or is missing, along with anything else that
prevents the definite identification of the burner
makes any installation or maintenance work diffi-
cult.
WARNING
The figure of the label (Fig. 7) is indicative. Some
of the data may be arranged in a different position.
R.B.L.
TIPO TYP
TYPE
II2ELL 3B/P DE
II2H3B/P
AT,CH,IS
II2H3 GB,IE,IT
N2L3B/P LU
GAS
GAZ
FAM.2
FAM.3
I2E(P)B.I3 BE
II2L3B/P NL
II2Er3P FR
Icc A
Imax A
PESO kg
RIELLO S.p.A.
I-37048 Legnago (VR)
A
B
F
B
G
D
E
C
Fig. 7
20098188
WARNING
The burner is set up to operate only in position 1
(Fig. 8).
DANGER
Any other position could compromise the correct
operation of the appliance.
Fig. 8
20178598
1
