Riello Condexa Pro3 Series - Page 6

6
TECHNICAL FEATURES
1
3
4
3 3 3
5
6
7
8
9
14
10
17
18 18 18 18
13
11
15
16
12
2
EXHAUST
FLUE DUCT
GAS
COMBUSTIBLE
SYSTEM
INLET
SYSTEM
OUTLET
CONDENSATE
OUTLET

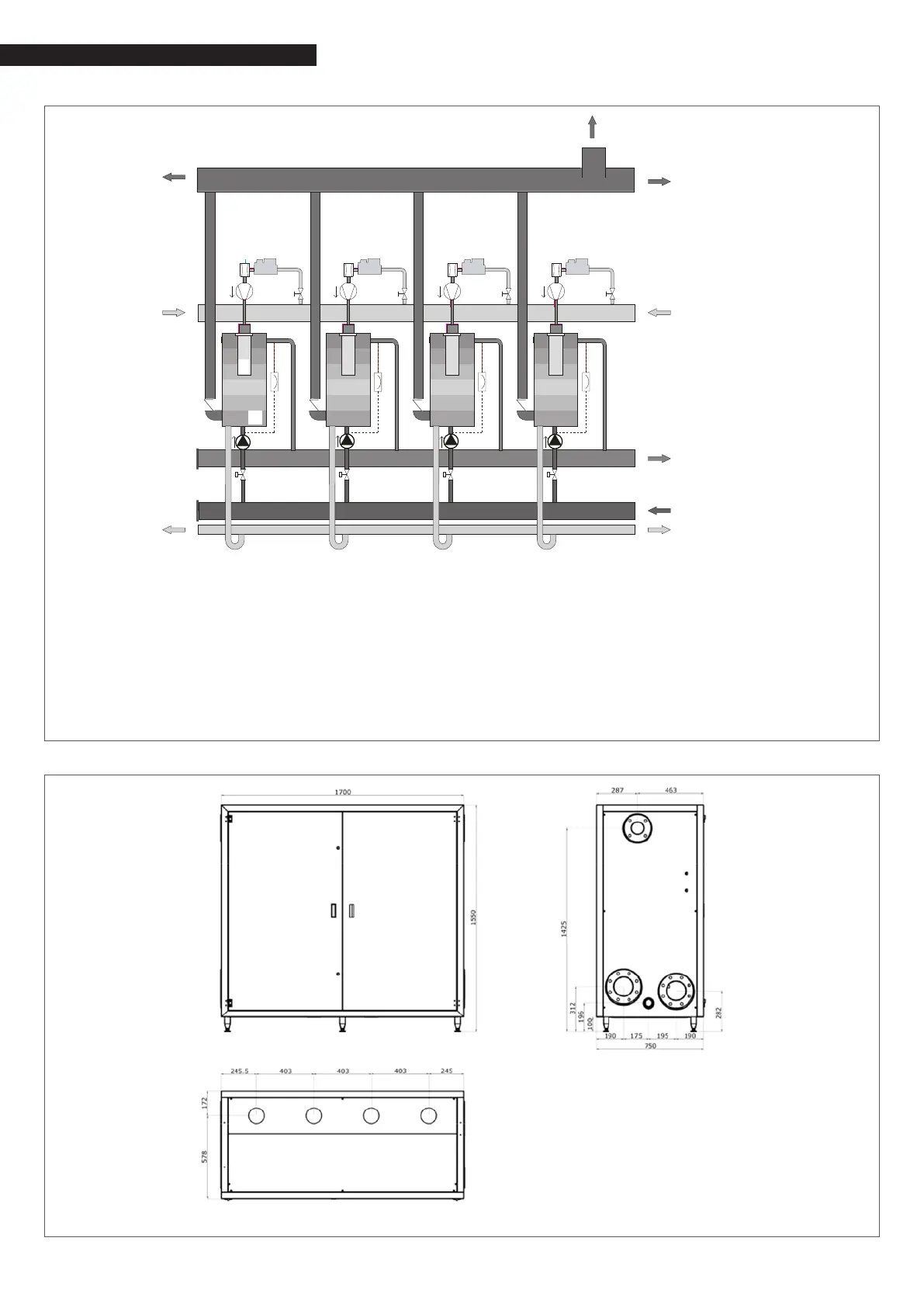

Figure 2
1 Heat exchanger
2 Burner
3 Pump (or 2-way valve)
4 Smoke-exhaust ue non-return valve
5 Jet
6 Venturi tubes
7 Gas valve
8 Gas cock
9 Water return cock
10 Water return manifold
11 Gas manifold
12 Gas pipe
13 Condensate drain manifold
14 Condensate drainpipe
15 Flue Manifold
16 Exhaust ue duct
17 Water ow manifold
18 Diff. Pressure switch
DIMENSIONS AND CONNECTION POSITIONS
Figure 3
