RigExpert AA-170 User Manual

3
1. Description
RigExpert AA-170 is a powerful antenna
analyzer designed for testing, checking,
tuning or repairing antennas and antenna
feedlines.
Graphical SWR (Standing Wave Ratio)
and impedance display are key features of
this analyzer which significantly reduce
the time required to adjust an antenna.
Easy-to use measurement modes, as well
as additional features such as connection
to a personal computer (to plot Smith
diagrams, etc.), make RigExpert AA-170
attractive for professionals and hobbyists.
The following tasks are easily
accomplished by using this analyzer:
• Rapid check-out of an antenna
• Tuning an antenna to resonance
• Comparing characteristics of an
antenna before and after specific
event (rain, hurricane, etc.)
• Making coaxial stubs or measuring
their parameters
• Cable fault location
• Measuring capacitance or
inductance of reactive loads

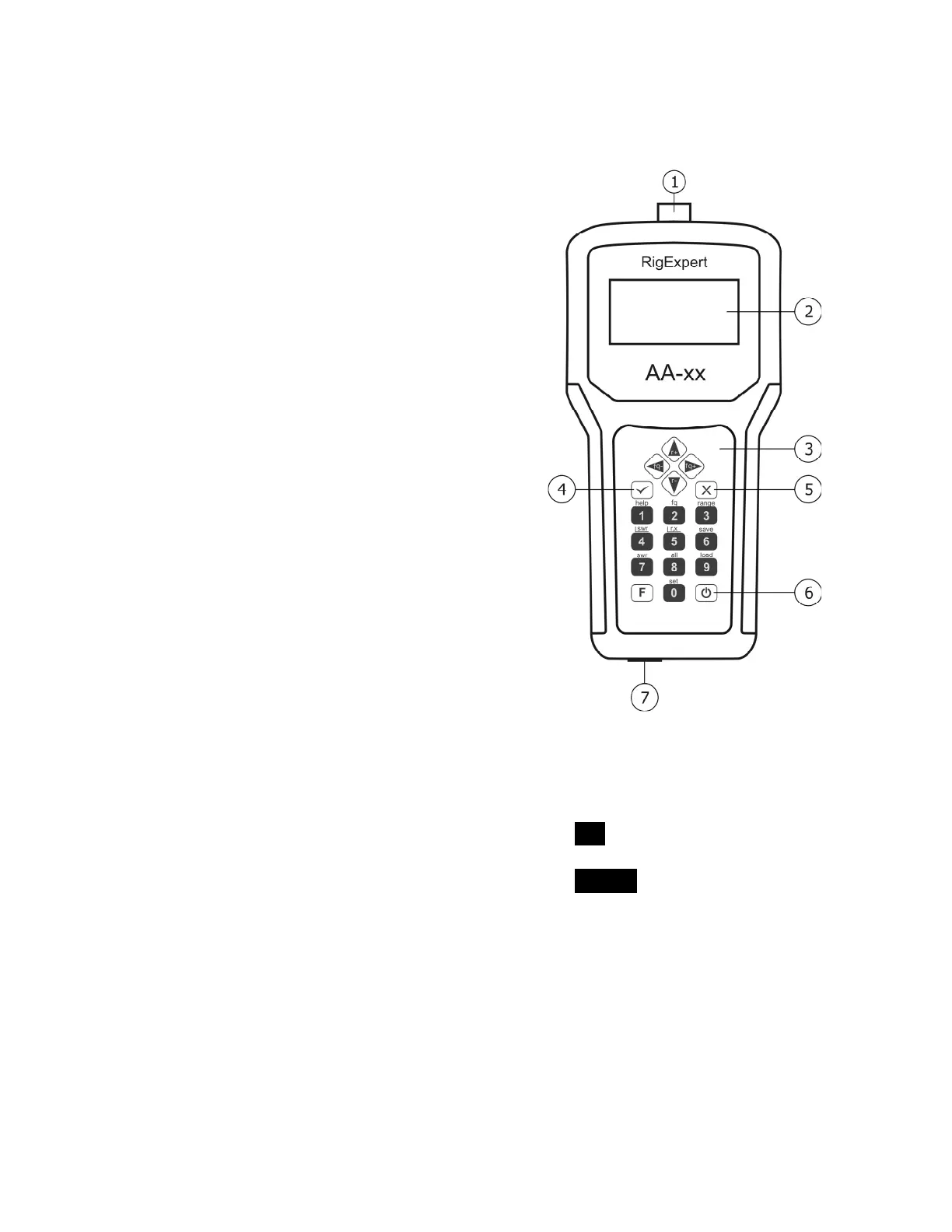

1. Antenna connector
2. LCD (Liquid Crystal Display)
3. Keypad
4. ok button (start/stop
measurement, enter)
5. cancel button (exit to main
menu, cancel)
6. Power on/off button
7. USB connector
