RIGOL Chapter 8 Protocol Decoding
8-12 MSO2000A/DS2000A User’s Guide

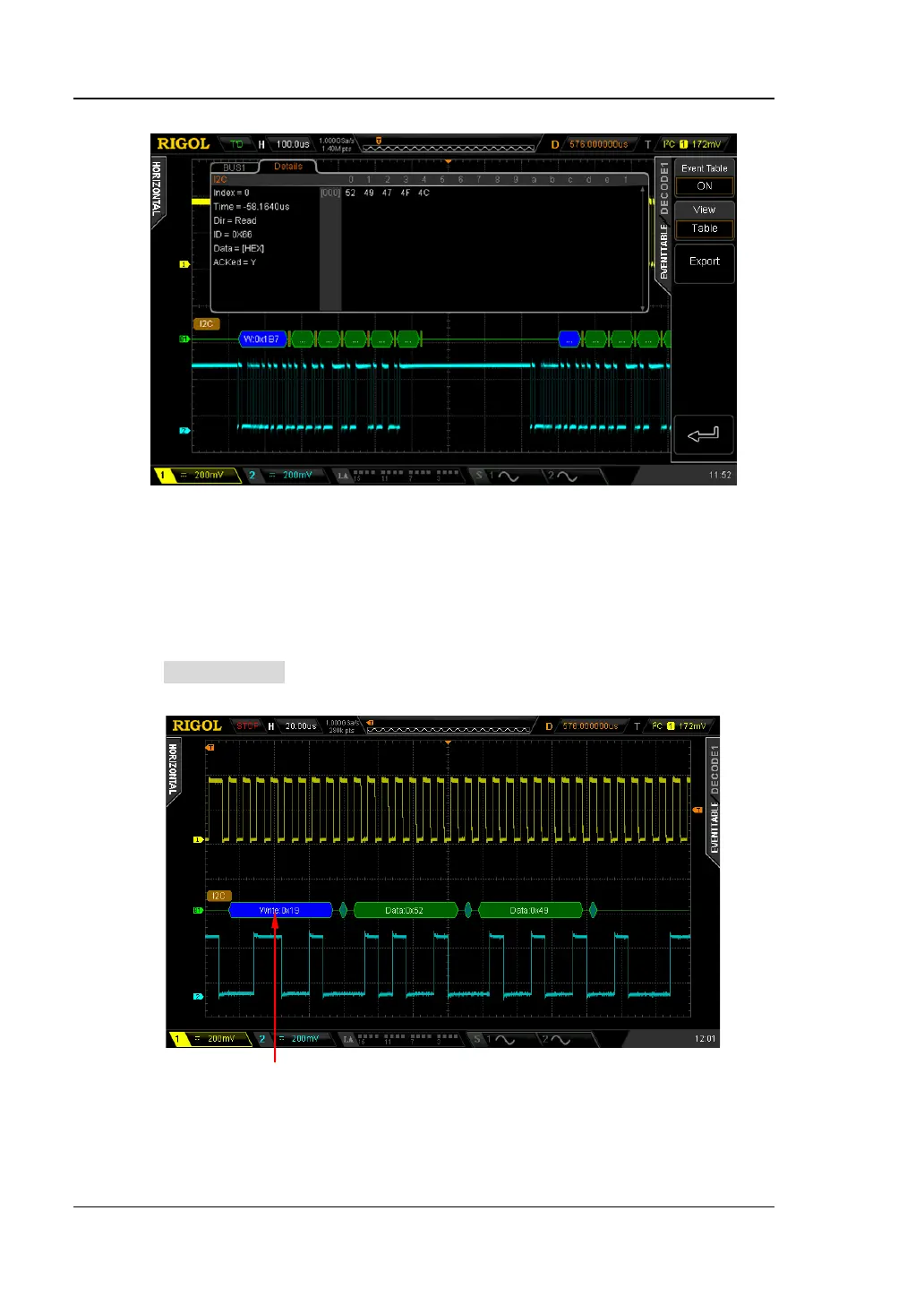

Figure 8-7 I2C Event Table (Details)
5. Address Information during Decoding
In I2C bus, the front part of each frame of data contains the address information
and blue patches are used to represent address ID. In the ID, “Write” is used to
represent writing address and “Read” is used to represent reading address.
Press Include R/W. When “Open” is selected, “AddrBits” will include the
“R/W” bit as a part of the address value.
Figure 8-8 Address Information during Decoding
Address Information
