RIGOL Chapter 1 Quick Start
1-16 MSO2000A/DS2000A User’s Guide

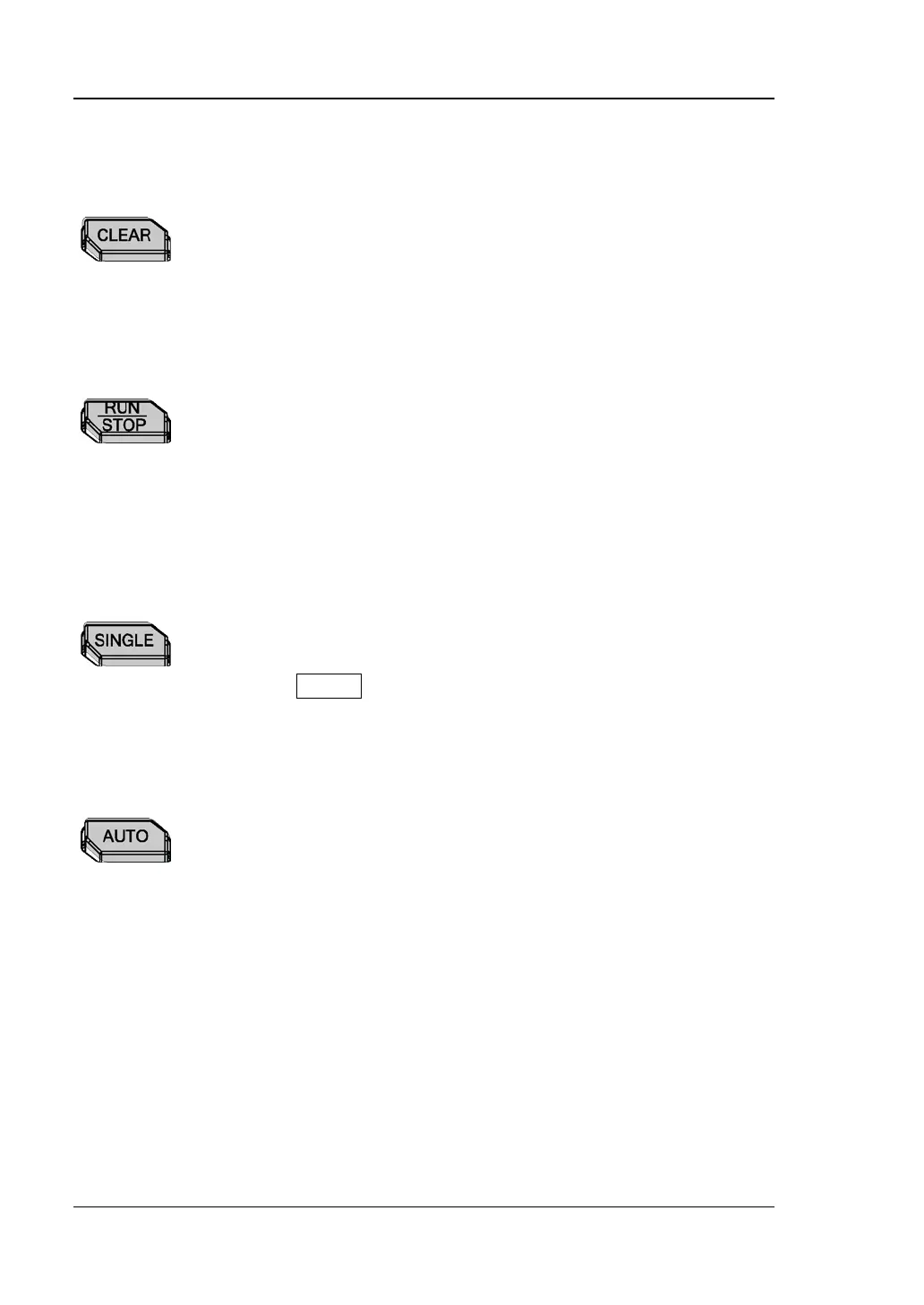

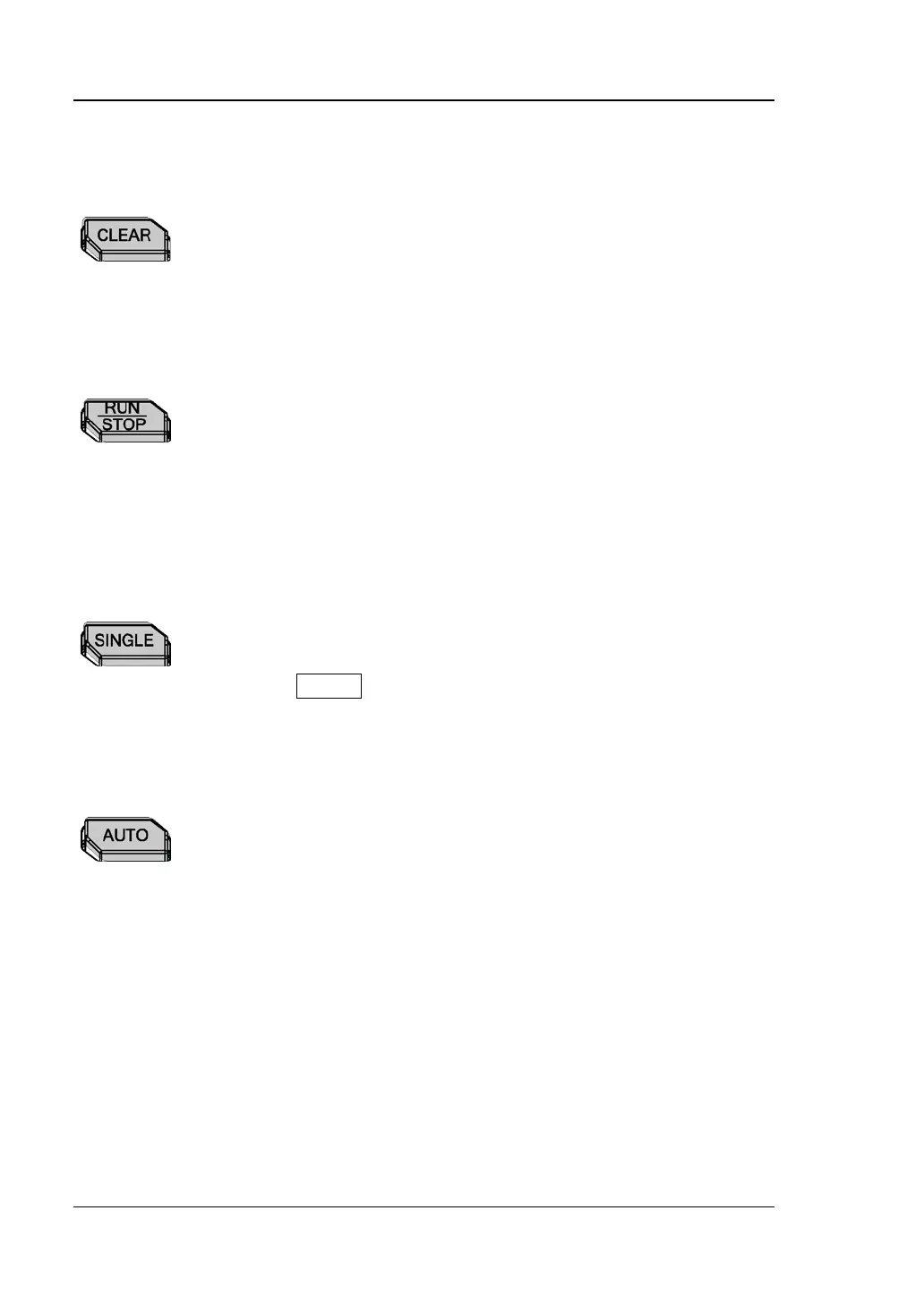

CLEAR
Press this key to clear all the waveforms on the screen. If
the oscilloscope is in the “RUN” state, new waveforms
will still be displayed.
RUN/STOP
Press this key to set the state of the oscilloscope to
“RUN” or “STOP”.
In the “RUN” state, the key is illuminated in yellow.
In the “STOP” state, the key is illuminated in red.
SINGLE
Press this key to set the trigger mode to “Single” and this
key is illuminated in orange. In single trigger mode, press
FORCE to generate a trigger signal immediately.
AUTO
Press this key to enable the waveform auto setting
function. The oscilloscope will automatically adjust the
vertical scale, horizontal time base and trigger mode
according to the input signal to realize optimum
waveform display.
Note: The waveform auto setting function requires that
the frequency of sine should be no lower than 25 Hz. If
the parameter exceeds this limit, the waveform auto
setting function might be invalid.
