Chapter 1 Quick Start RIGOL
MSO2000A/DS2000A User’s Guide 1-21
User Interface
MSO2000A/DS2000A provides 8.0 inch, WVGA (800*480) 160,000 color TFT LCD.
What is worth mentioning is that the 14-grid ultra-wide screen enables you to view
“longer” waveform.

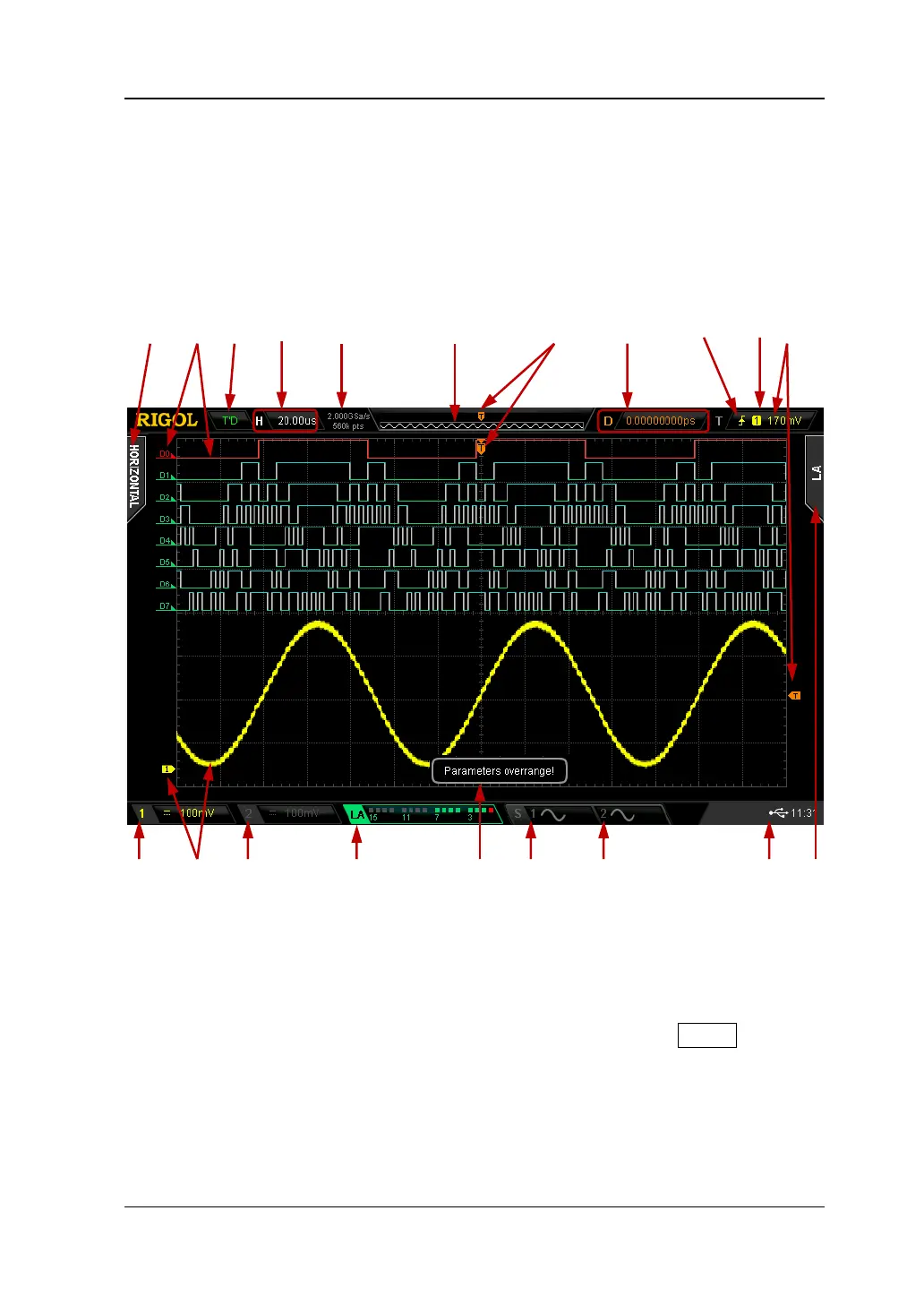

Figure 1-12 User Interface
1. Auto Measurement Items
Provide 16 horizontal (HORIZONTAL) parameters and 13 vertical (VERTICAL)
parameters. Press the softkey at the left of the screen to enable the auto
measurement function of the corresponding parameter. Press MENU
continuously to switch between the horizontal and vertical parameters.
2. Digital Channel Label and Waveform
The logic high level of the digital waveform is displayed in blue and the logic low
12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9 10 11
