Rigol DM3061 User Manual

RIGOL
© 2007 RIGOL Technologies, Inc.
User‟s Guide for DM3000 Series
2-10
Frequency Measurement
Frequency measurement function is used for measuring the frequency of AC signal
(voltage and current) only.
Press  Freq, the display shows:

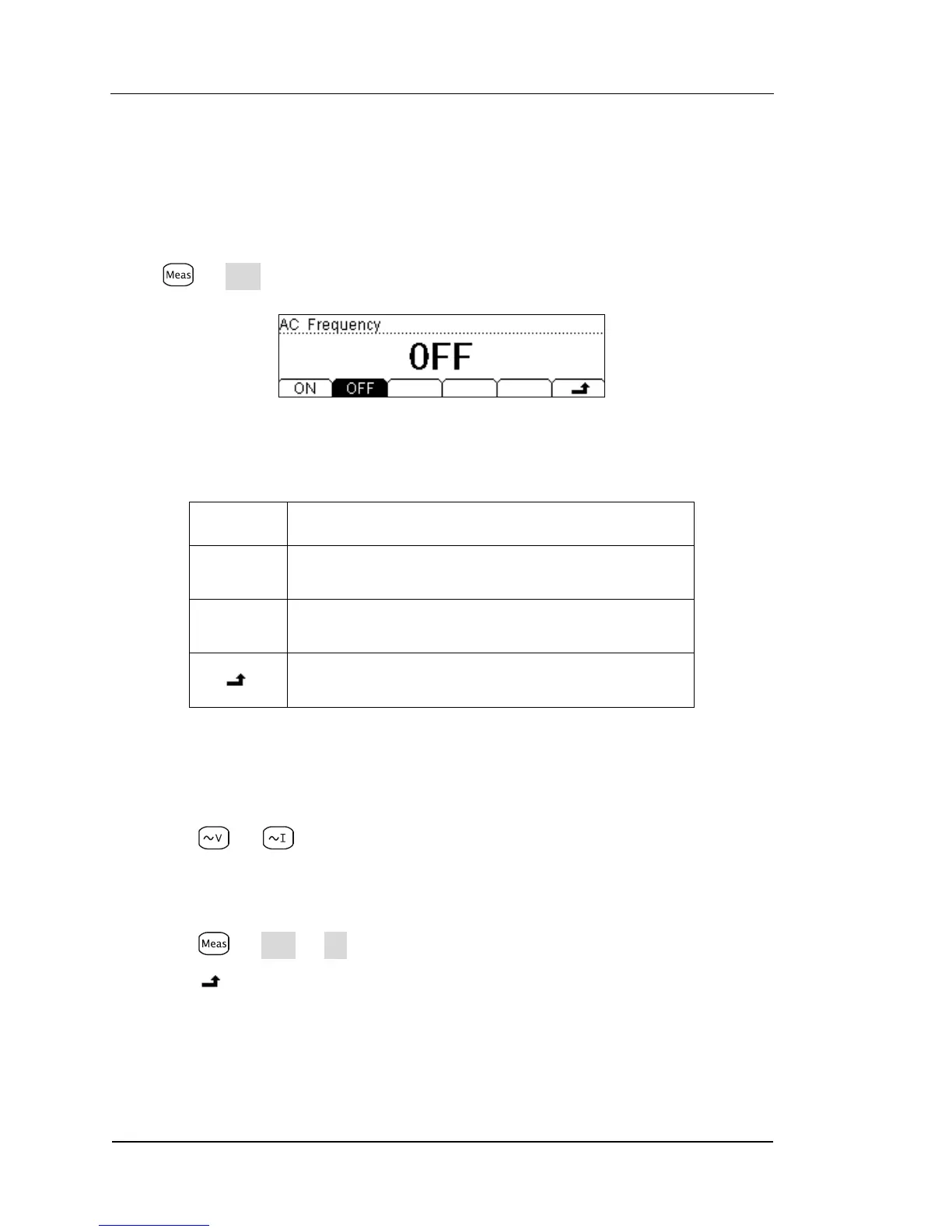

Figure 2- 7
Table 2- 7 Ratio Measurement Menu Description
Function
Menu
Description
ON
Activate the Frequency Measurement Function
OFF
Deactivate the Frequency Measurement Function
Save all changes, back to a higher level menu.
Basic measurement:
1. Connect test leads as shown in Figure 2-9; red test lead to the HI Terminal, black
test lead to the LO Terminal.
2. Press or to select the AC voltage or current measurement function.
3. Choose the appropriate range.
4. Set up the AC Frequency Measurement.
Press  Freq  On, to start the AC Frequency Measurement.
Press to save all changes, back to a higher level menu.

Rigol DM3061 Specifications

General

Type	Digital Multimeter
Display	LCD
Max Voltage Measurement	1000 V
Max Current Measurement	10 A
Frequency Measurement	100 kHz
Data Logging	Yes
Connectivity	USB, RS232
Continuity Test	Yes
Diode Test	Yes
Capacitance Accuracy	1%
DC Voltage Range	100mV to 1000V
AC Voltage Range	100mV to 750V
DC Current Range	200 uA - 10 A
DC Current Accuracy	0.1%
AC Current Range	200 uA - 10 A
AC Current Accuracy	0.3%
Resistance Range	100Ω to 100MΩ
Frequency Range	10Hz to 100kHz
Temperature Range	-200 °C to 1350 °C
Temperature Accuracy	0.5%
Power Supply	100 V - 240 V
