Rear Panel Overview

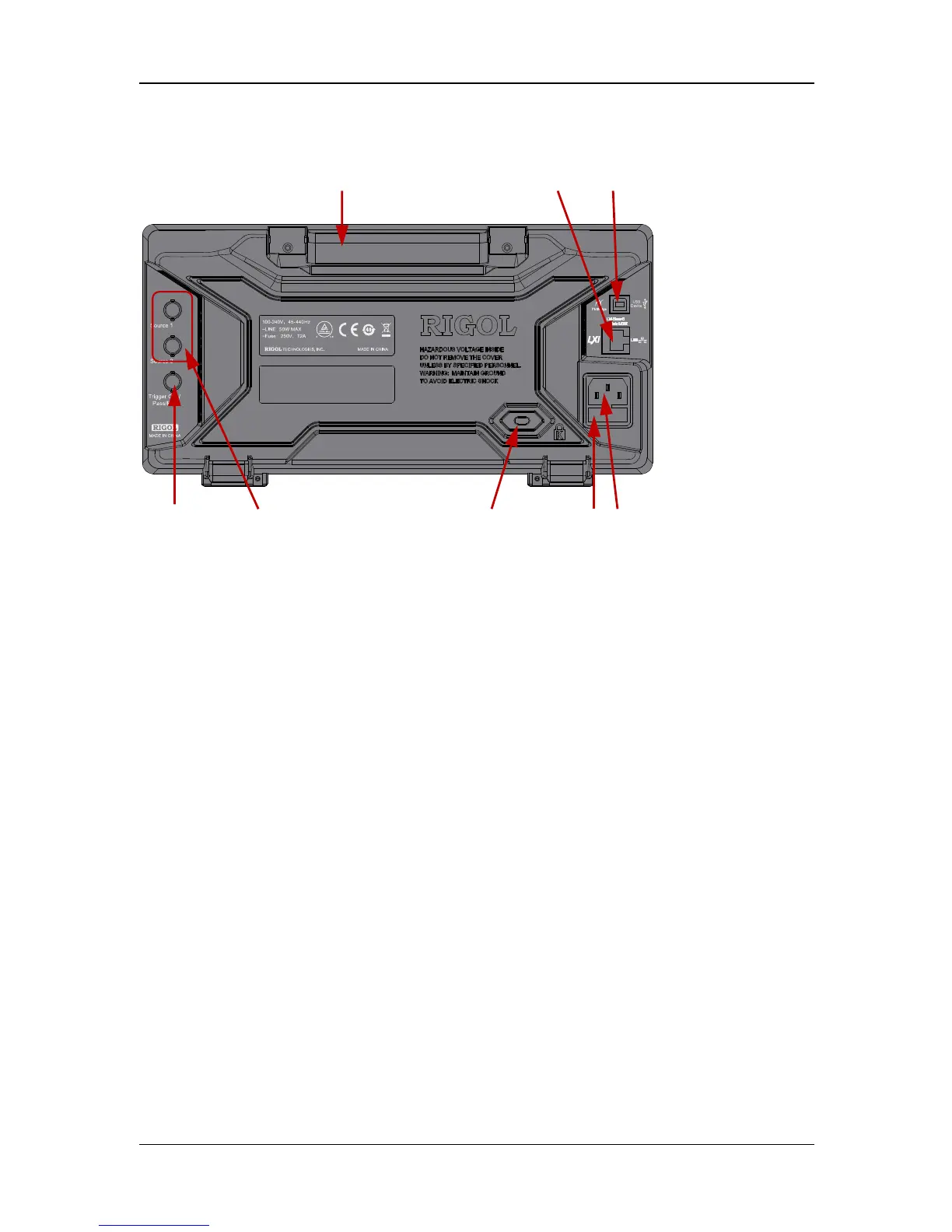

Figure 10 Rear Panel Overview
1． Handle
Pull up the handle vertically for easy carrying of the
instrument. When you do not need the handle, press it down.
2． LAN
Connect the instrument to the network via this interface for
remote control. This oscilloscope conforms to the LXI-C class
instrument standards and can quickly build test system with
other instruments.
3． USB DEVICE
PC can be connected via this interface to control the
instrument using PC software or user-defined programming.
4． Trigger Out/Pass/Fail
Trigger Out: the oscilloscope outputs a signal that can
reflect the current capture rate of the oscilloscope at each
1 2 3
4 5 6 7 8
