RIGOL Chapter 1 Disassemble and Assemble
1-8 MSO1000Z/DS1000Z Service Guide
To Disassemble the Front Panel

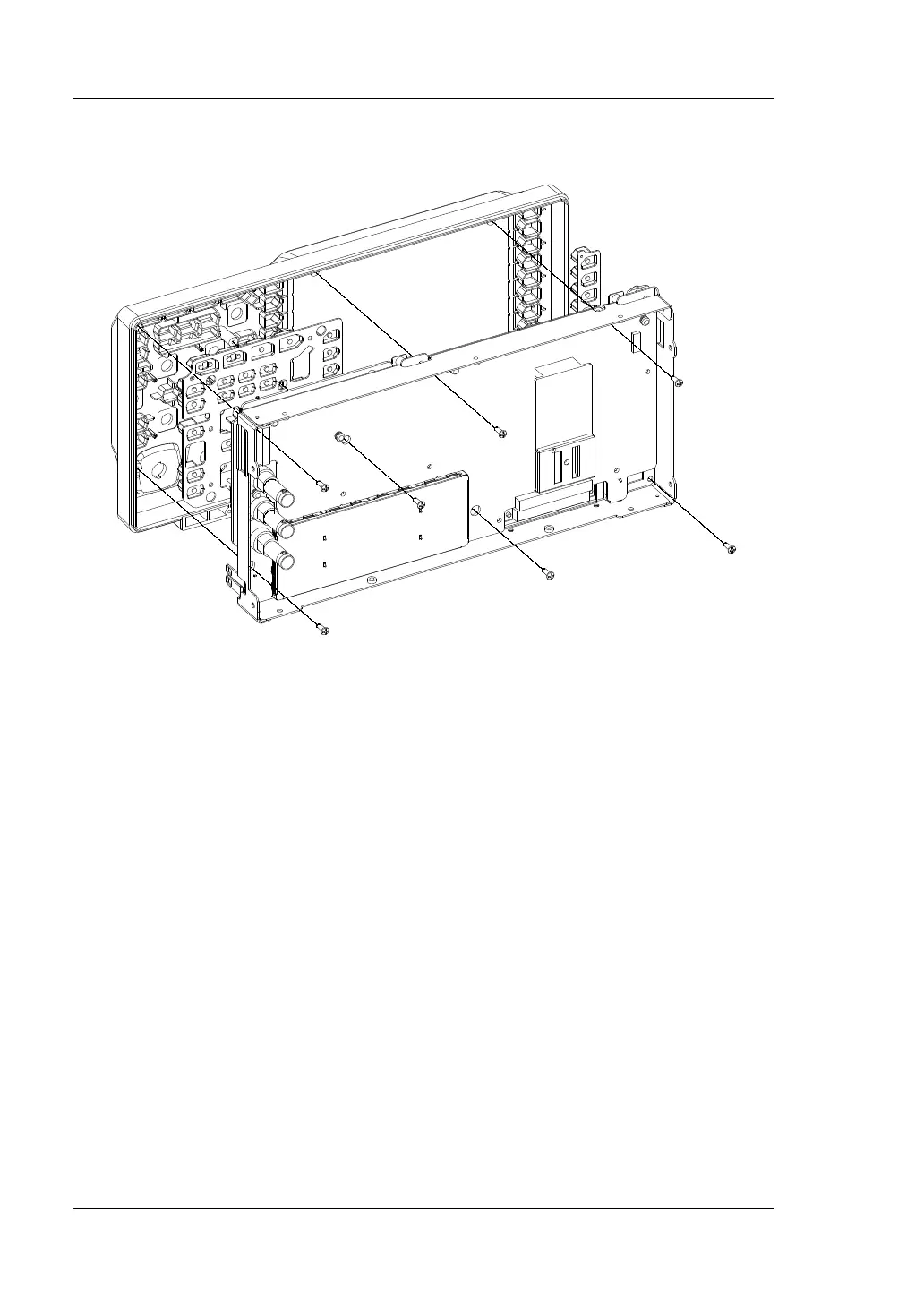

Figure 1-5 To Disassemble the Front Panel
Part Explanation:
① 7 screws (torx countersunk head self tapping screw M3*8) fixing the front panel.
Disassemble Steps:
1. Remove the 7 screws (①) fixing the front panel using the screwdriver (T10).
2. Take off the front panel gently.
①
①
①
①
①
①
①

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
