Rigol DS1054Z Manual

Chapter 1 Disassemble and Assemble RIGOL
MSO1000Z/DS1000Z Service Guide 1-7
To Disassemble the Knobs

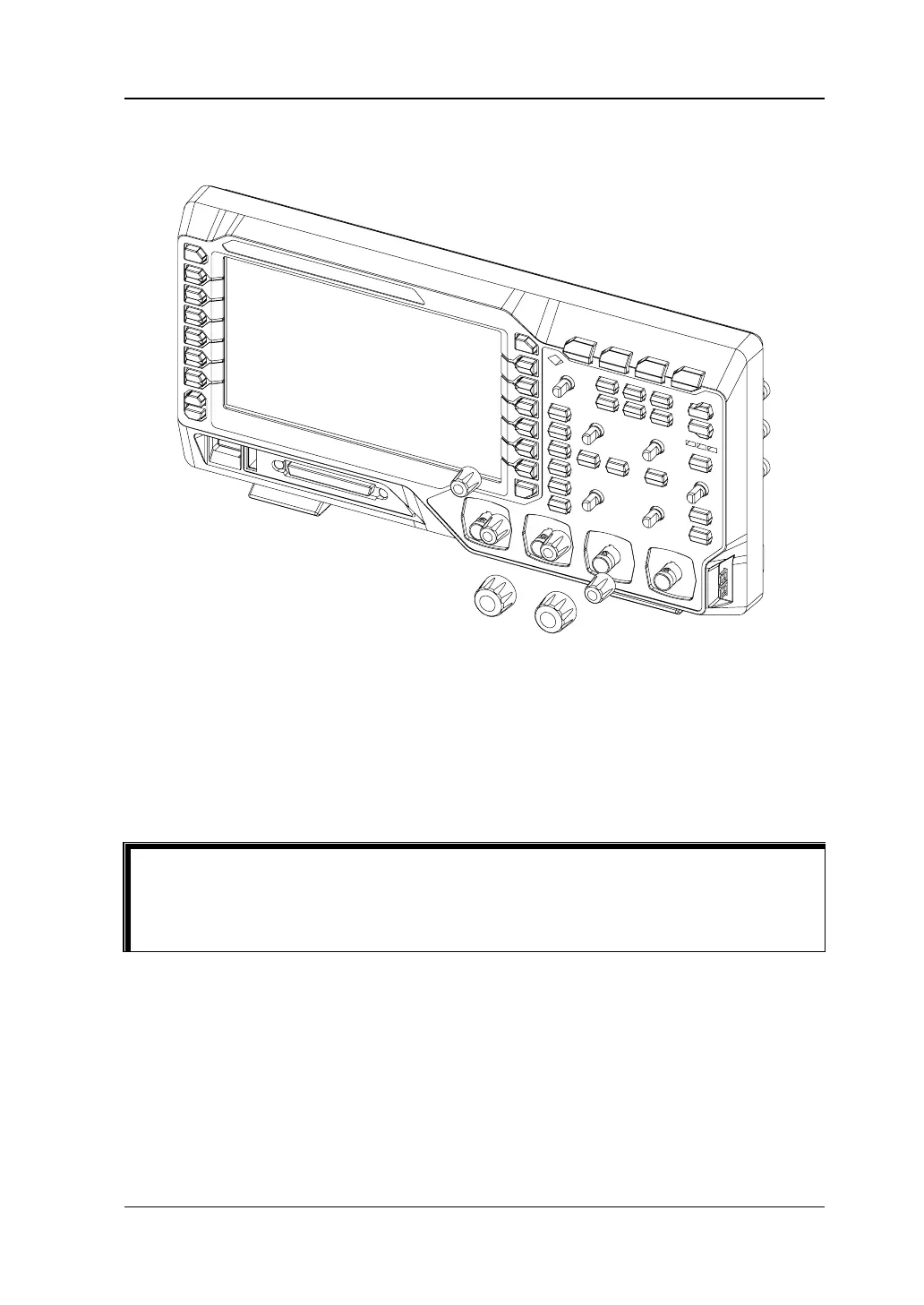

Figure 1-4 To Disassemble the Knobs
Part Explanation:
① 6 knobs
Disassemble Step:
Disassemble the 6 knobs (①).
Tip:
It is recommended that you use a lever-like tool to pry out the knob when
disassembling the knob and place a soft pad at the force bearing point to avoid
damaging the key film and knob.
①
①
①
①
①
①

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
