Chapter 1 Disassemble and Assemble RIGOL

MSO1000Z/DS1000Z Service Guide 1-9

To Disassemble the Keyboards, LCD and Digital

Channel Input Port

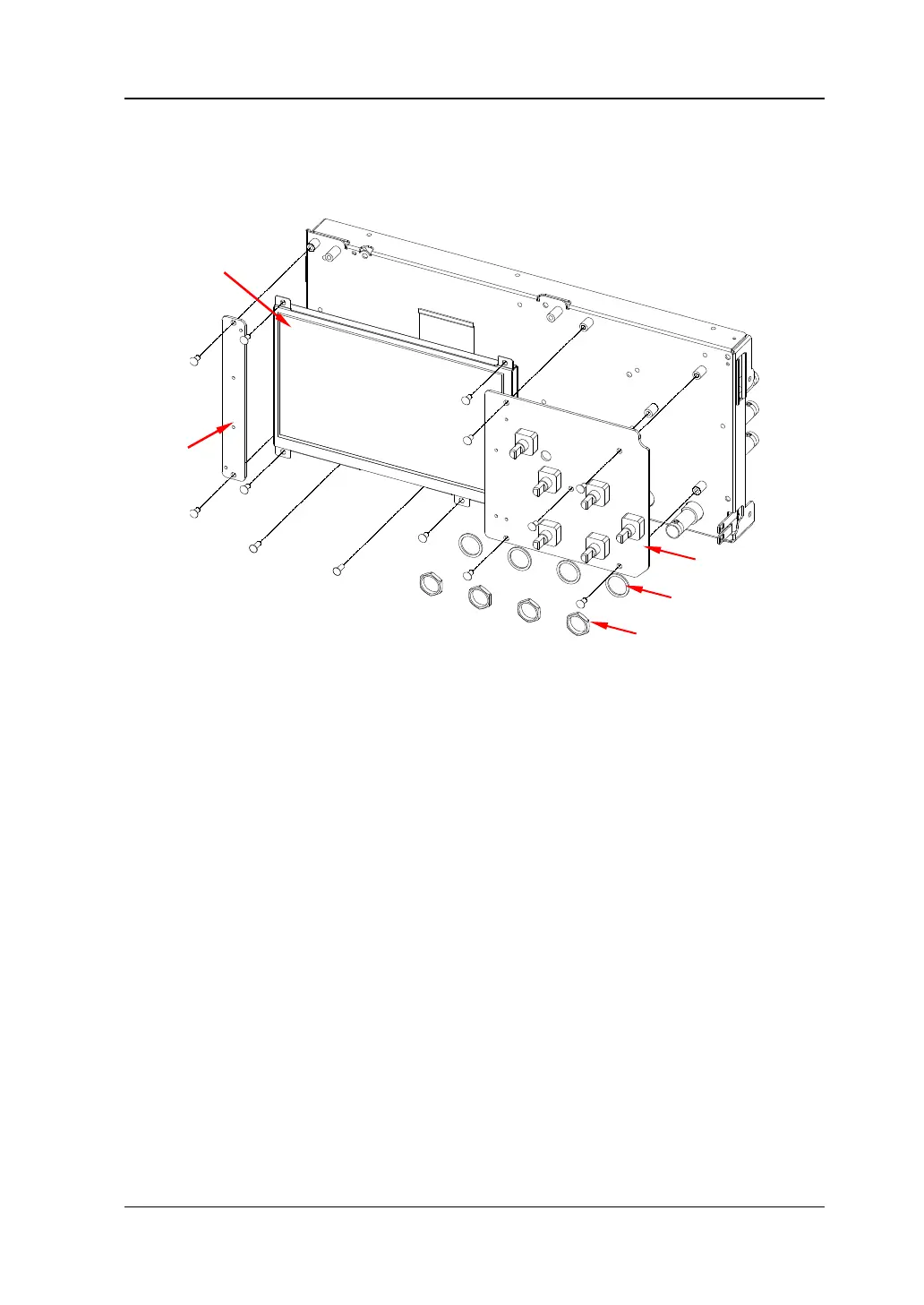

Figure 1-6 To Disassemble the Keyboards, LCD and Digital Channel Input Port

Part Explanations:

① 2 screws (torx countersunk head screw M3*6) fixing the left keyboard.

② 5 screws (torx countersunk head screw M3*6) fixing the main keyboard.

③ 4 screws (torx countersunk head screw M3*6) fixing the LCD.

④ 2 screws (torx countersunk head screw #FM4#-40*5/16) fixing the digital

channel input port (below the LCD).

Disassemble Steps:

1. Remove the 2 screws (①) fixing the left keyboard using the screwdriver (T10).

2. Remove the 5 screws (②) fixing the main keyboard using the screwdriver (T10).

3. Remove the left keyboard cable and main keyboard cable connected to the main

board, and take off the left keyboard and main keyboard gently.

4. Remove the 4 screws (③) fixing the LCD using the screwdriver (T10) and

remove the screen line connected to the main board. Take off the LCD gently.

5. Remove the 2 screws (④) fixing the digital channel input port using the

screwdriver (T10), and take off the digital channel input port gently. Note that

only MSO1000Z/MSO1000Z-S includes a digital channel input port.

②

④

③

Left

Keyboard

Main Keyboard

①

④

LCD

③

BNC Washer

BNC Nut

②
