RIGOL 5 To Trigger the Oscilloscope
5-18 DS6000 User’s Guide

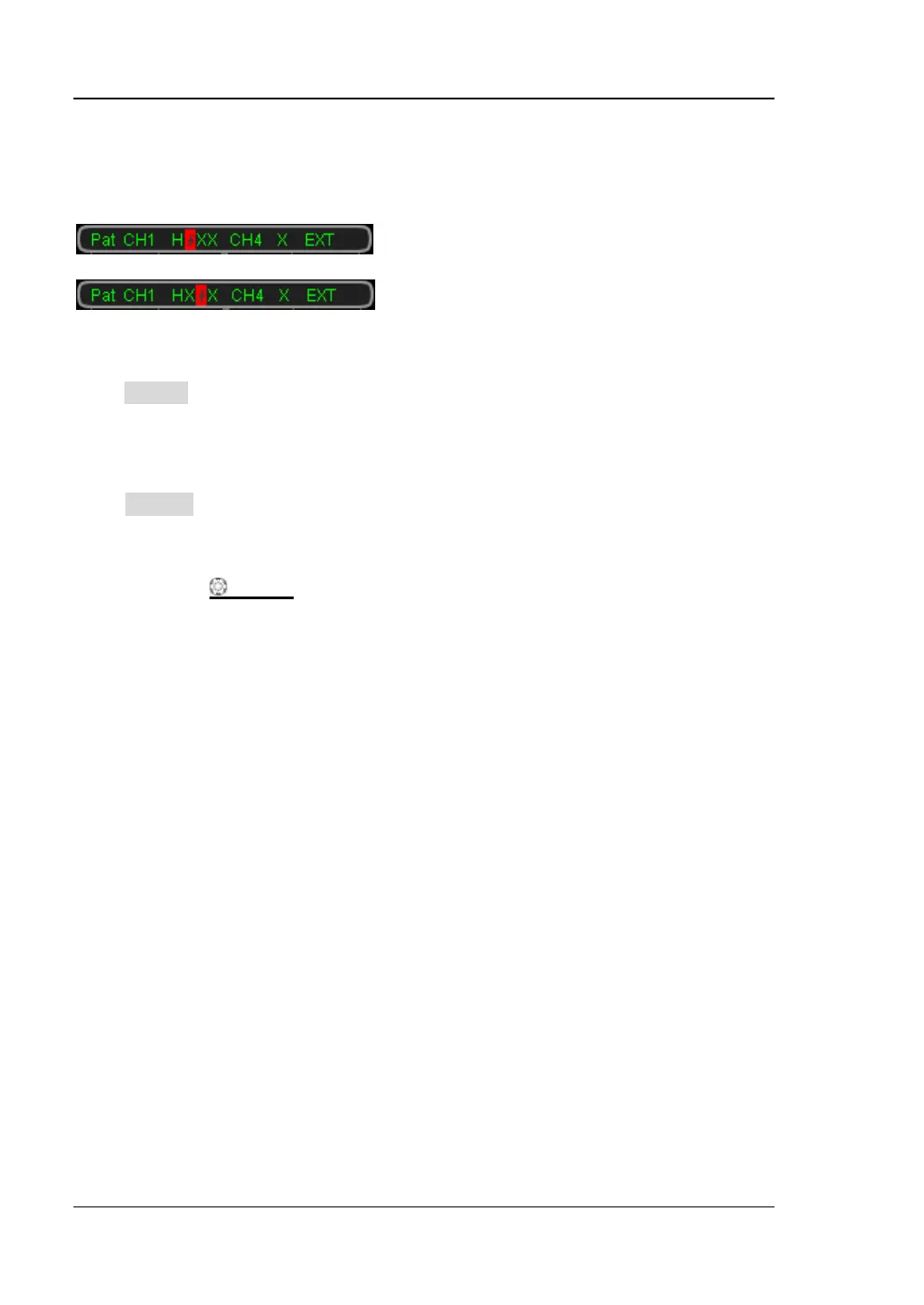

Note: In the pattern, you can only specify one rising edge or falling edge. If one edge
item is currently defined and then another channel in the pattern is selected to define
another edge item, thus the former edge item defined will be replaced by X.
Trigger Mode:
Press Sweep to select the Trigger Mode (page 5-3) under this trigger type as auto,
normal or single. The corresponding status light of the current trigger mode turns on.
Trigger Setting:
Press Setting to set the trigger parameters (trigger holdoff) under this trigger type.
Trigger Level:
Use TRIGGER LEVEL to modify the level. For details, please refer to the
description of Trigger Level on page
5-8. Note that the trigger level of each channel
needs to be set respectively.
