2 To Set the Vertical System RIGOL
DS6000 User’s Guide 2-11

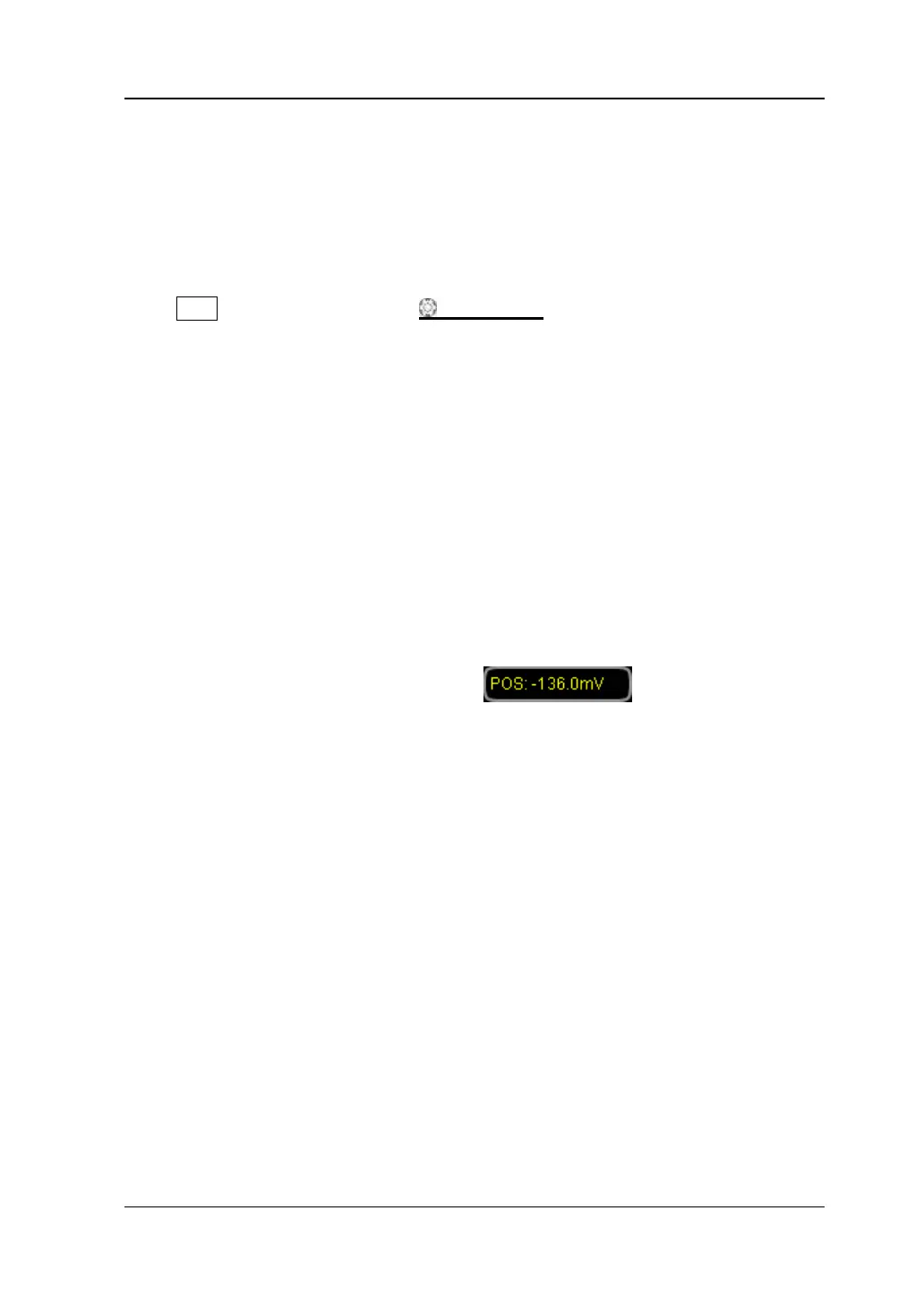

Vertical Position
The unit of the vertical position is the same with the amplitude unit currently selected
(refer to "Amplitude Unit").
Press CH1 and rotate VERTICAL
POSITION to adjust the vertical position.
Turning the knob clockwise will increase the position and turning the knob
counterclockwise will reduce the position. Pressing down the knob will restore the
vertical position to 0.
The adjustable range of the vertical position is related to the probe ratio, input
impedance and vertical scale currently set. By default (the probe ratio is 1X and the
input impedance is 1 MΩ), the adjustable range of the vertical position is from -2 V to
2 V when the vertical scale is from 2 mV/div to 225 mV/div; the adjustable range of
the vertical position is from -40 V to 40 V when the vertical scale is from 230 mV/div
to 5 V/div. The step of the vertical position is related to the current vertical scale.
When adjusting the vertical position, the waveform will move up and down and the
vertical position information (for example,
) displayed at the
lower-left corner of the screen will change accordingly.
