RIGOL 1 Quick Start

1-4 DS6000 User’s Guide

Preparations for Use

To Remove the Cover

Before using the oscilloscope, remove the front panel cover by grasping the

transverse grab on each side and pull them in the arrow directions as shown in the

figure below.

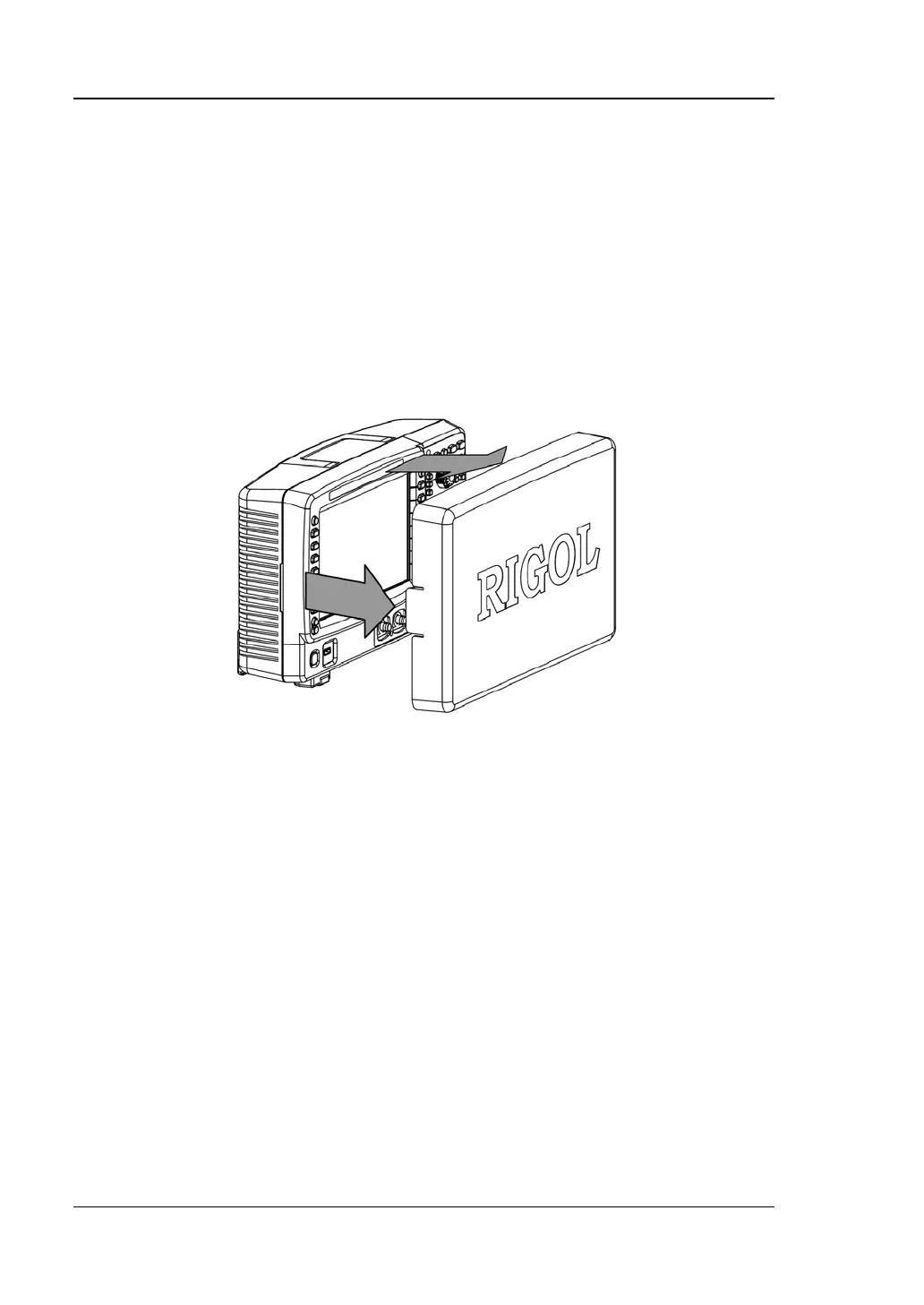

Figure 1-3 To Remove the Cover
