Rigol DS6000 Series User Manual

7 Protocol Decoding RIGOL
DS6000 User’s Guide 7-11
2. SDA Setting
Press SDA to select any channel (CH1-CH4) as the data channel.
Press SDA to set the threshold of the data channel.
3. Display-related Setting
Press Format to select the display format of the bus as Hex, Decimal, Binary or
ASCII.
Press Offset and use to adjust the vertical display position of the bus.
Press BusStatus to turn the bus display on or off.

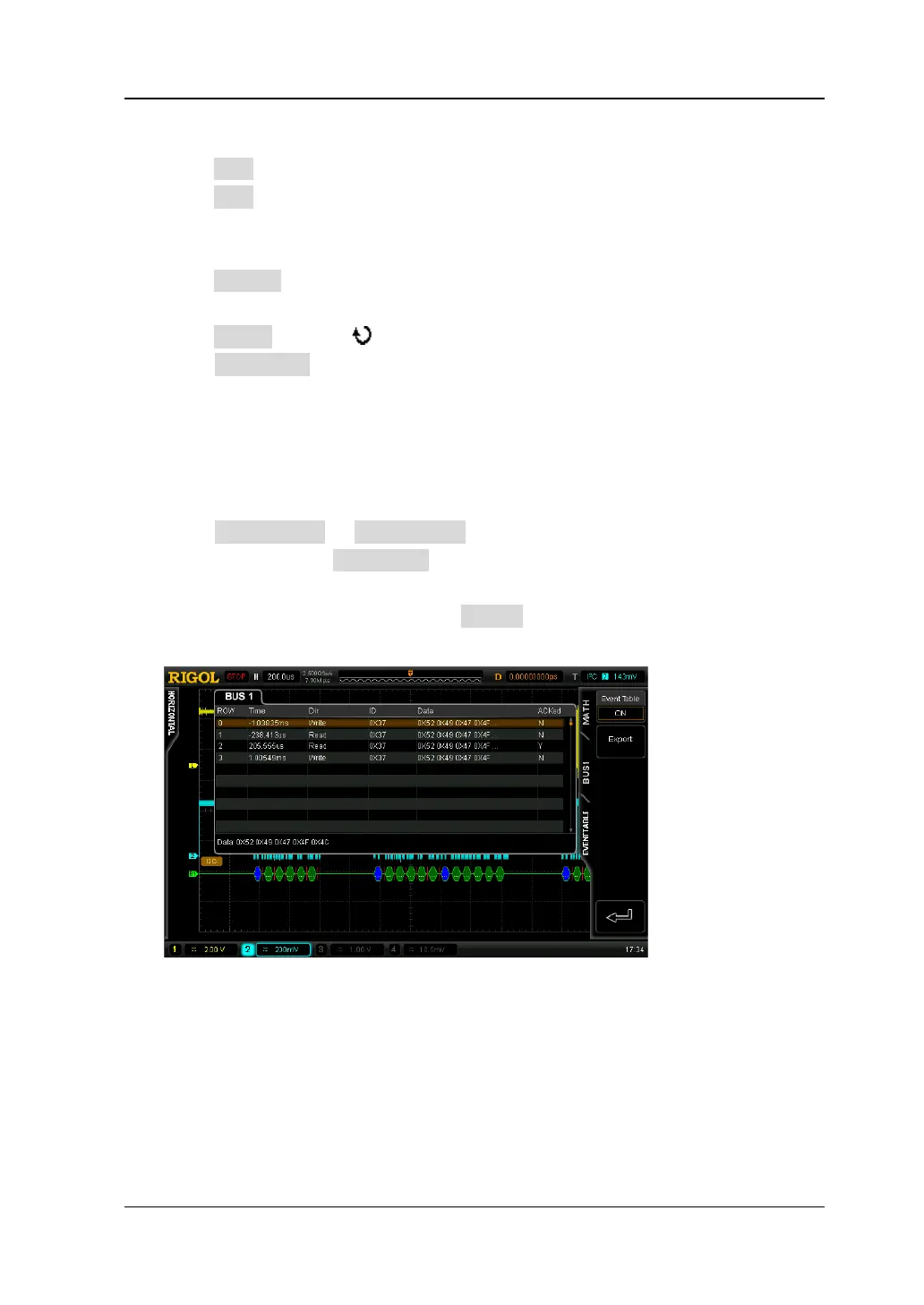

4. Decoding Table
The decoding table displays the decoded data, the corresponding line number,
time, data direction, ID and ACK information in table format.
Press Event Table  Event Table to select "ON" (note that this operation is
only available when BusStatus is set to "ON") to enter the decoding table
interface as shown in the figure below. If a USB storage device is currently
connected to the instrument, press Export to export the data table to the
external USB storage device in CSV format.
