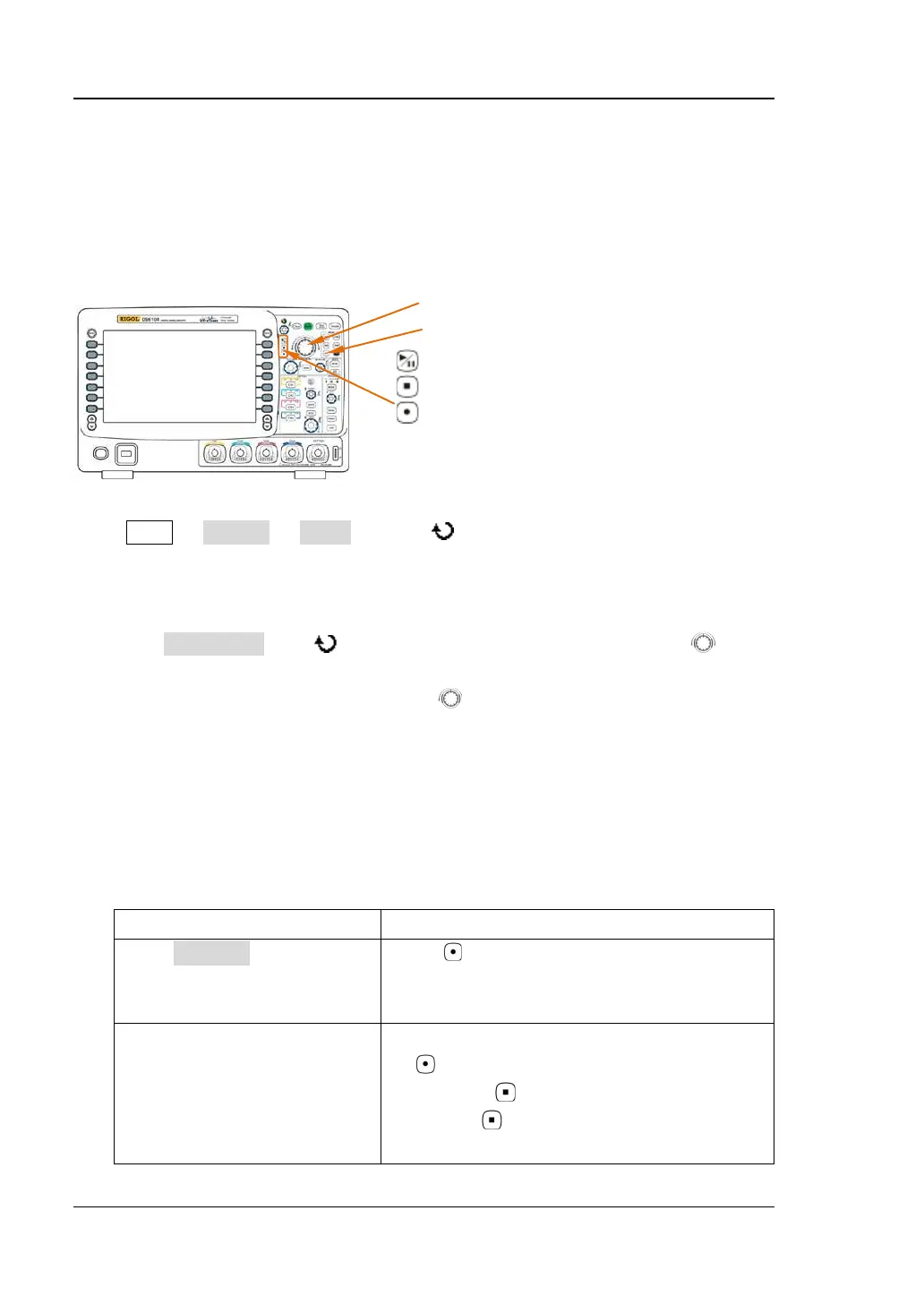

Waveform Recording
Waveforms from all the channels currently turned on will be recorded during
waveform recording.
Press UTIL  Record  Mode and use to select "Record" to turn the
waveform recording operation menu on.
1. End Frame
Press End Frame; use or the inner knob of the navigation knob to
adjust the number of frames to be recorded at the specified step (1) or rotate
the outer knob of the navigation knob
to quickly adjust the number of
frames to be recorded within a relatively larger range. (The greater the rotation
amplitude of the outer knob, the faster the variations in the values.) The number
of frames available is related to the memory depth currently selected.
2. Recording Operation
Waveform recoding can be realized via the shortcut buttons in the menu or on
the front panel.
Menu Front Panel
Press Operate and select "●
" to start recoding.
Press , the backlight goes on (in red) and
starts to flash, which indicates that the
recording is started.
When the recording is
finished, "●" changes to "■"
automatically. You can also
select "■" manually to stop
the recording.
When the recoding is finished, the backlight
of
goes off automatically and the
backlight of
goes on (in orange). You can
also press
directly to stop the recording.
Navigation Knob (Playback)
UTIL
Play/Pause (Playback)
Stop Recording/Playback
Record (Record)
