Table 2 Rear Panel Description
No.
Description
No.
Description
1
LAN Interface
2
USB HOST Interface
3
SFP+ Interface
4
HDMI Video Output
5
USB DEVICE Interface
6
10 MHz In/Out
7
EXT TRIG
8
AWG Output Terminal
9
Trigger Out and Pass/Fail
10
Fuse
11
AC Power Cord Connector
--
--

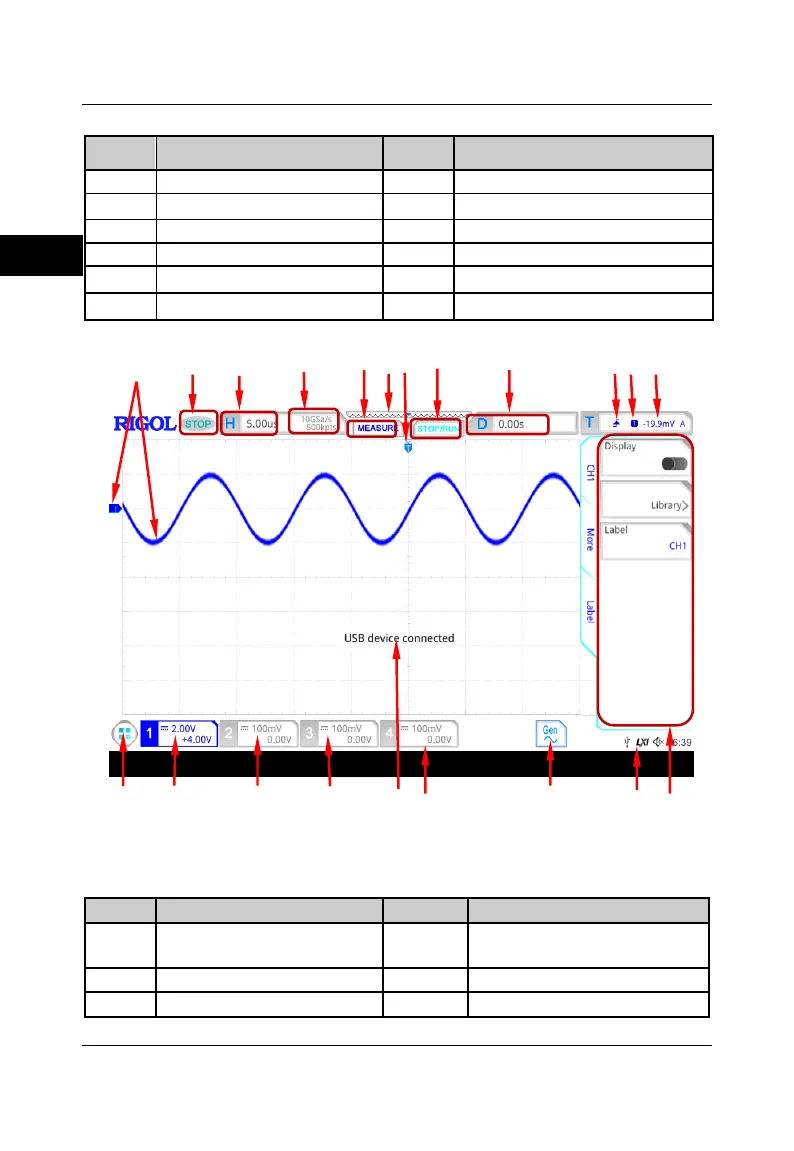

Figure 3 User Interface
Table 3 User Interface Icons
No.
Description
No.
Description
1
Analog Channel
Label/Waveform
12
Trigger Level
2
Operating Status
13
Operation Menu
3
Horizontal Time Base
14
Notification Area
21 20 19 18 17 16 15 14 13
1 2 3 4 5 6 7 8 9 10 11 12
