Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-9
Disassemble the Power Supply Shield

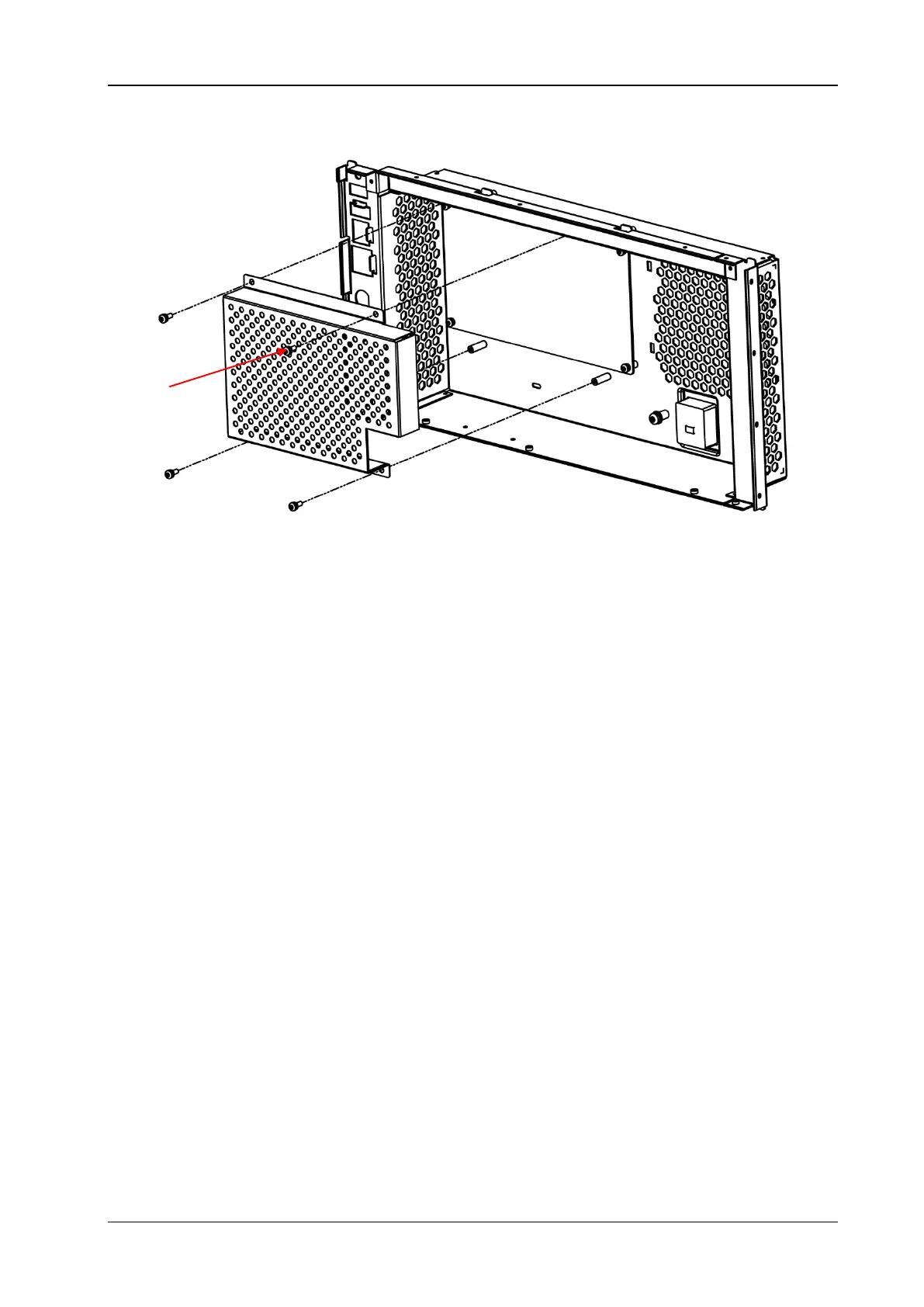

Figure 1-6 Disassemble the Power Supply Shield
Part Description:
① 4 screws (M3x8 torx pan head combination screw, used for fastening the power supply shield)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the power supply shield.
2. Take off the power supply shield gently.
①
①
①
①
