Chapter 1 Disassembly and Assembly RIGOL
MSO8000 Service Guide 1-11
Disassemble the Metal Front Panel

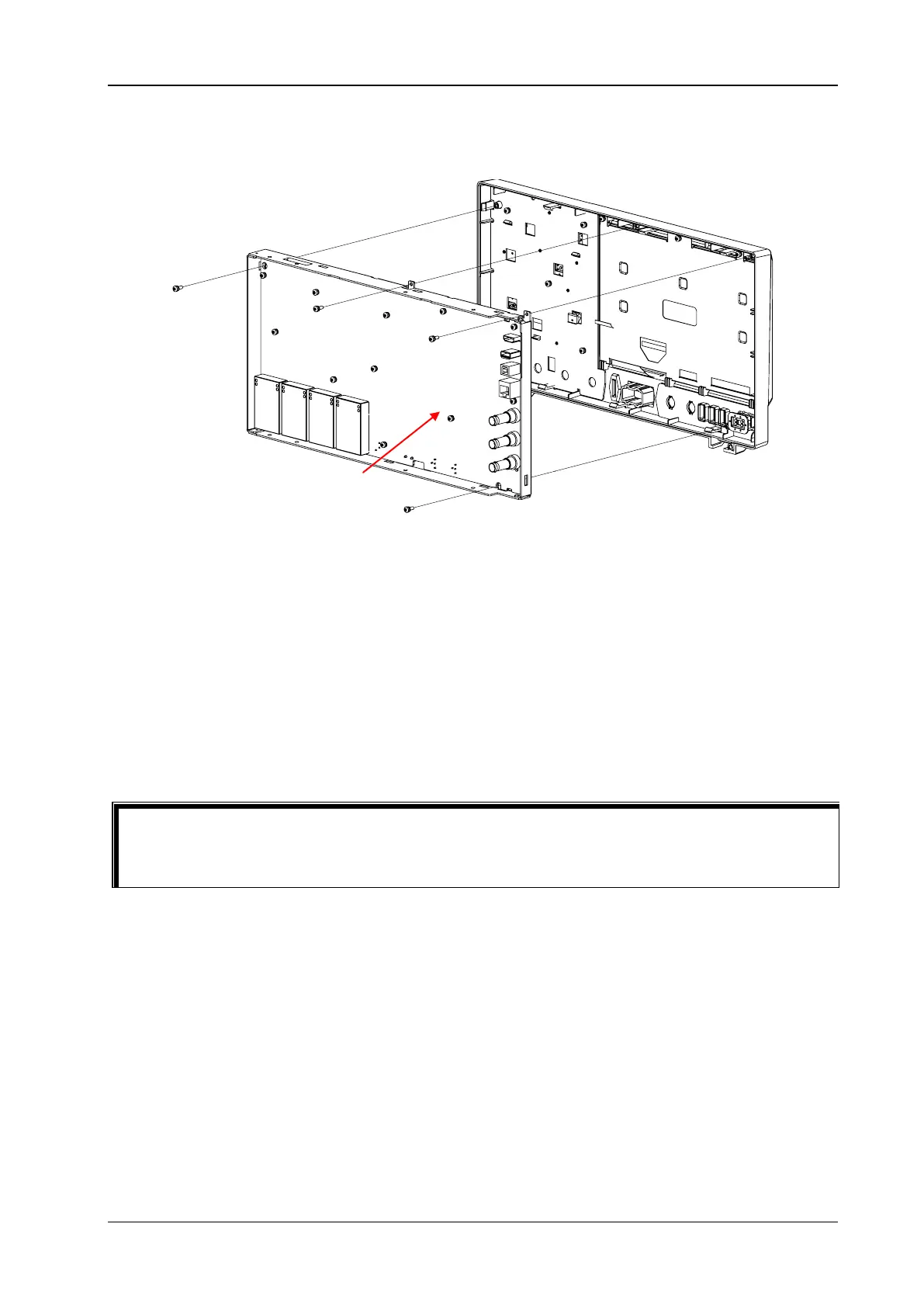

Figure 1-8 Disassemble the Metal Front Panel
Part Description:
① 4 screws (M3x8 torx pan head combination screw, used for fastening the metal front panel)
Disassembly Steps:
1. Use the T10 screwdriver to remove 4 screws (①) that secure the metal front panel.
2. Remove the keyboard cable, active probe power cable, and LCD screen cable from the metal front
panel.
3. Disengage the 9 tabs from the metal front panel.
4. Take off the metal front panel gently.
Before disconnecting the cables from the metal front panel, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling the
cables.
①
①
①
①
To Next Page
