RIGOL Chapter 1 Disassembly and Assembly
1-10 MSO8000 Service Guide
Disassemble the Power Supply Board

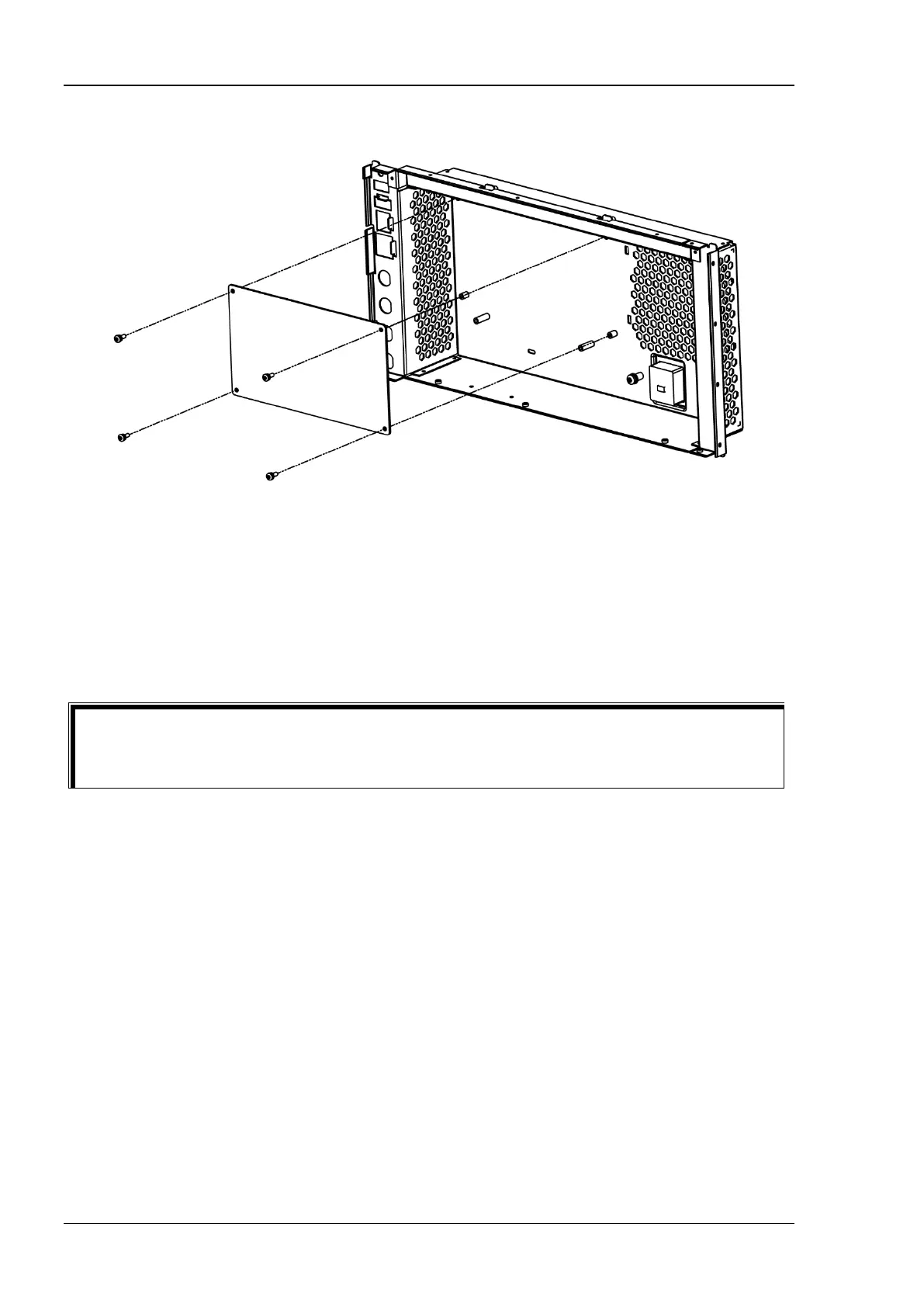

Figure 1-7 Disassemble the Power Supply Board
Part Description:
① 4 screws (M3x8 torx pan head combination screw, used for fastening the power supply board)
Disassembly Steps:
1. Remove the AC line from the power supply board.
2. Use the T10 screwdriver to remove 4 screws (①) that secure the power supply board.
3. Take off the power supply board gently.
Before disconnecting the cables from the power supply board, pay attention to the connecting
positions of the cables to avoid incorrect connection or incomplete connection when assembling
①
①
①
①
