Disassemble the Main Board

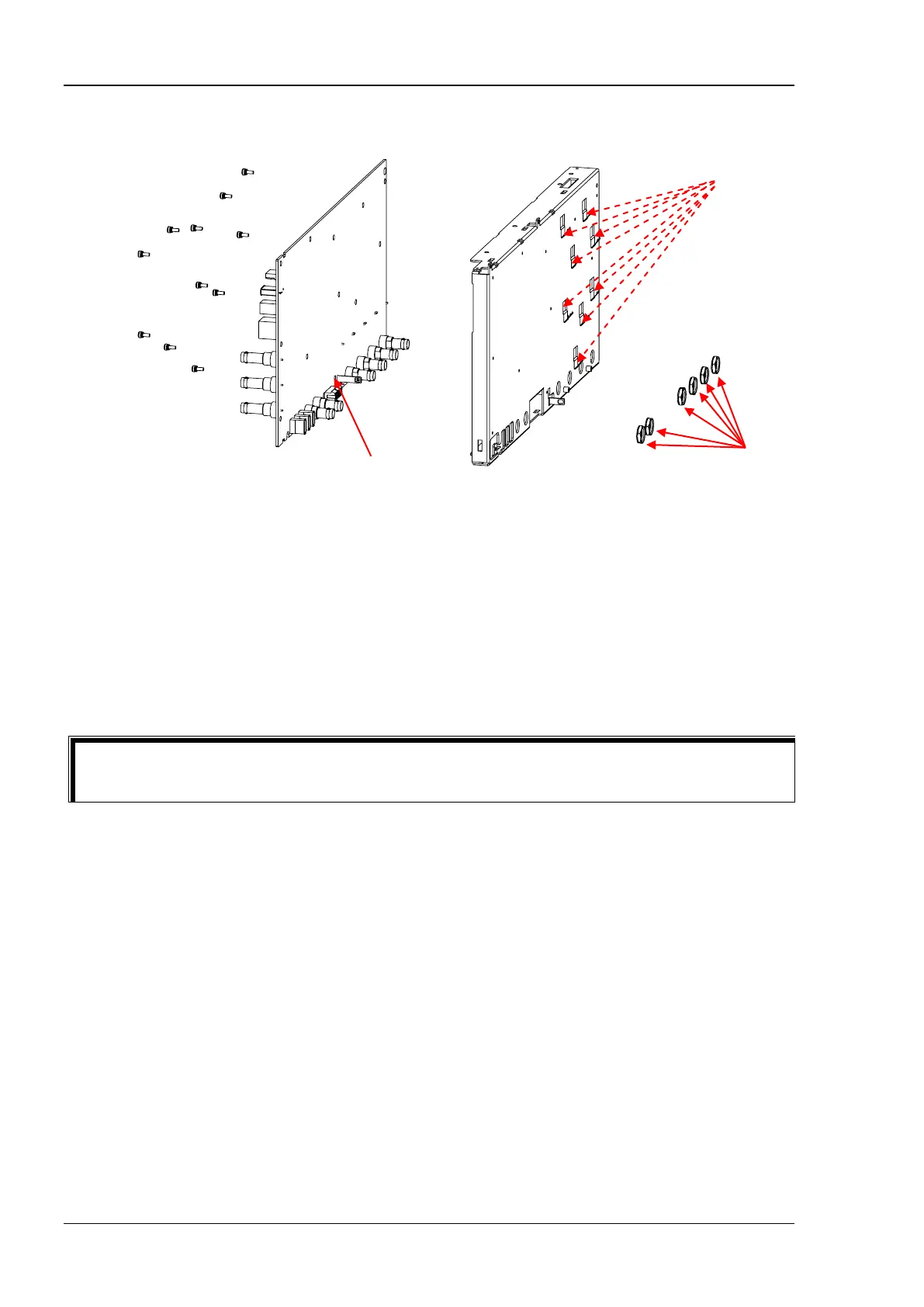

Figure 1-9 Disassemble the Main Board
Part Description:
① 11 screws (M3x8 torx pan head combination screw, used for fastening the main board)
② 6 BNC nuts
Disassembly Steps:
1. Use the BNC socket wrench to remove the 6 BNC nuts (②) at the BNC connectors of the main
board.
2. Use the T10 screwdriver to remove 11 screws (①) that secure the main board.
3. Take off the main board gently.
After disassembling the metal front panel, take off the 8 BeCu fingerstocks. While assembling the
BeCu fingerstocks, ensure that the slope side faces upward and make a proper installation.
