Chapter 8 Power Analysis (Option) RIGOL
MSO8000 User Guide 8-5
the figure below. You can also enable the touch screen to tap the icon at the
right-upper corner of the statistical results window to close it.
âš« View the Connection Diagram
Press Tips, and then the connection diagram of the ripple analysis is displayed
on the screen. Please connect the cables according to the connection method as
shown in Figure 8-2. Press Tips again or enable the touch screen to tap the icon
at the right-upper corner of the connection diagram window to close it.

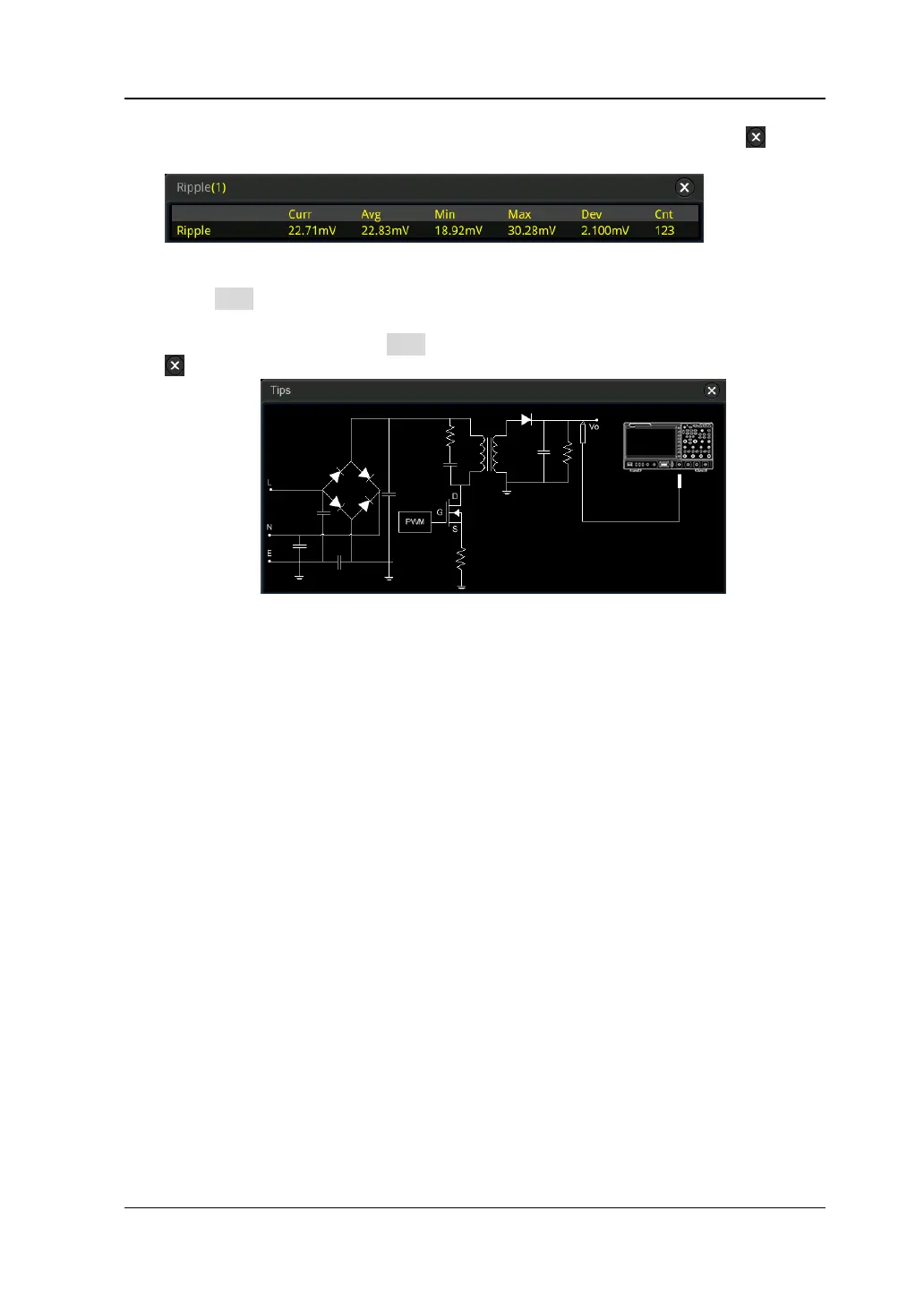

Figure 8-2 Connection Diagram of Ripple Analysis
