Connecting Remote Control Cables
Do not attempt to connect the remote control cable terminals to the appliance with the power on.
RISK OF ELECTRICAL SHOCK !
Connecting One or Two Controllers
1. Isolate the power supply
2. Remove the front cover from the Appliance (4 screws) fig. 1.
3. Thread the cable(s) through the cable access hole at the base
of the appliance.
4. Connect the spade connectors to the terminals marked
"Remote Control" on the printed circuit board (fig. 2).
Polarity is not important. Either wire colour can be
connected to either terminal.
5. Replace cover of the Appliance. Ensure that the screw with
the star washer is placed at the bottom right hand corner for
earthing purposes.
Connecting Three Controllers
6. Isolate the power supply
7. Remove the front cover from the Appliance (4 screws) fig.1.
8. Cut the spade connectors from 2 of the controller cables to be
connected to the appliance (4 spade connectors should be cut
off) and discard. Connect the wires from these two cables and
terminate into two new spade connectors as shown in fig.3.
Spade connectors are available from your local electrical
component retailer.
9. Thread the 3 cables through the cable access hole at the base
of the appliance. Connect the 4 spade connectors to the
terminals marked "Remote Control" on the printed circuit
board (fig.2). Polarity is not important. Either wire colour
can be connected to either terminal.
10.Replace cover of the Appliance. Ensure that the screw with
the star washer is placed at the bottom right hand corner for
earthing purposes.
Connecting Four Standard Controllers
11.Isolate the power supply
12.Remove the front cover from the Appliance (4 screws) fig 1.
13.Cut the spade connectors from all four controller cables to be
connected to the appliance (8 spade connectors should be cut
off) and discard. Connect the wires from two cables and
terminate into two new spade connectors as shown in (fig. 3).
Repeat for the remaining two cables. Spade connectors are
available from your local electrical component retailer.
14.Thread the 4 cables through the cable access hole at the base
of the appliance. Connect the 4 spade connectors to the
terminals marked "Remote Control" on the printed circuit
board (fig 2). Polarity is not important. Either wire colour
can be connected to either terminal.
15.Replace cover of the Appliance. Ensure that the screw with
the star washer is placed at the bottom right hand corner for
earthing purposes.

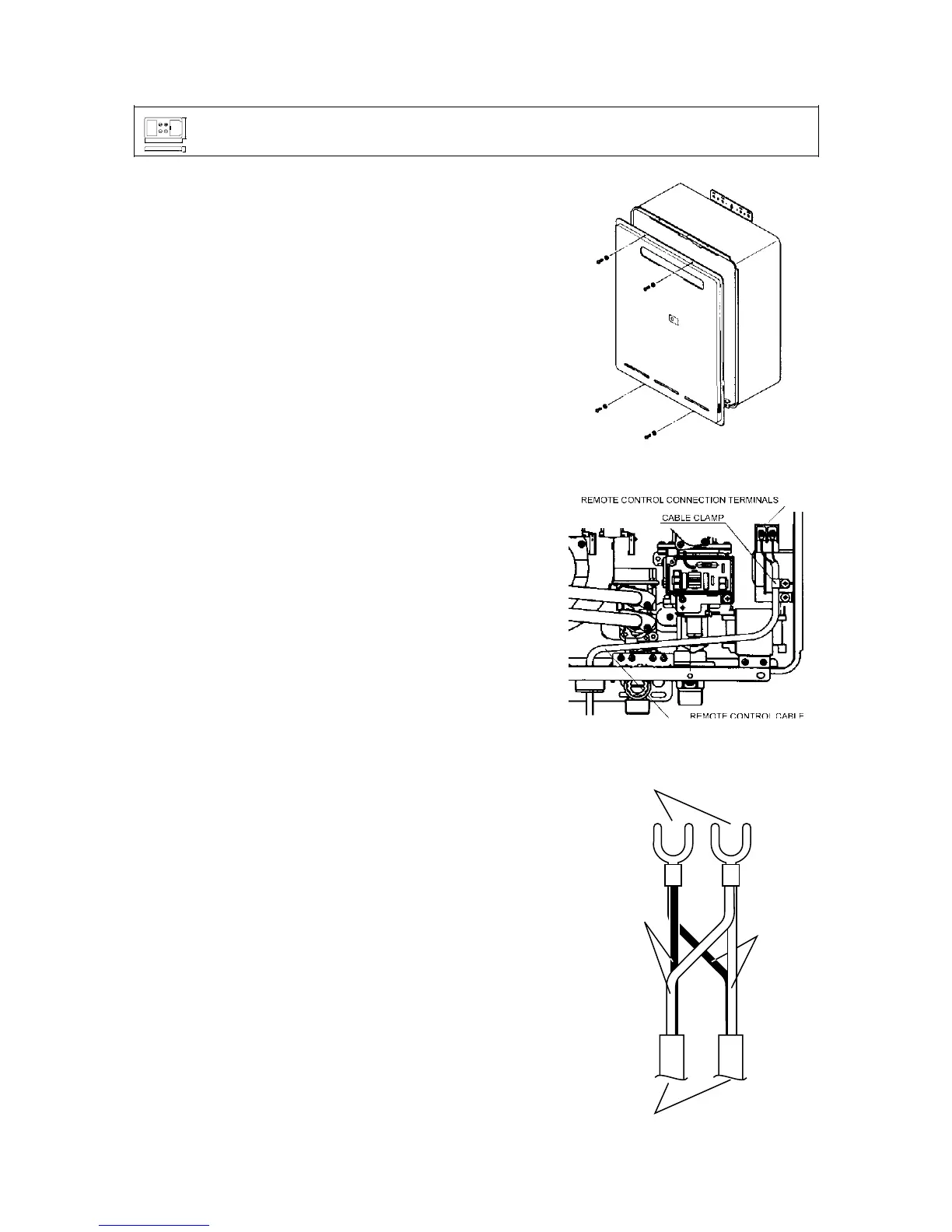

fig.1
fig.2
fig. 3
New spade connectors
Cable
wires
Cable
wires
Remote control cables
195
97
22
BC-70-2A
