Infinity REU-V3232W /HD250E REU-V3232WC - 38 - Issue 1 - 8/09/03 ©Rinnai
*Note 3 Water Flow Servo Positioning
To return to normal operation
• Press the ON/OFF button again while holding down the Water Temperature "DOWN" (Cooler)
button.
To return to normal operation.
• Press the ON/OFF button again while holding the Water Temperature “UP” (Hotter) button.
• This feature will automatically shut down after 3 minuets.
Servo Position Open Centre Closed
Display “1” “0” “2”
08 Inlet water temperature
(PCB recognition value)
(Example 25 = 25 C)
C
0~999
09 Hot water fan current flow value
(Example 6 x 10 = 60 mA)
10 mA 0~999
10 Bath fill amount (this counts the litres during bath
fill operation).
Litres 0~999
11 Heat exchanger exit thermistor temperature (Exam-
ple 55 = 55 C)
C
0~999
12 Bypass servo present recognition positioning
(Example 0 = Closed
250 = Half open
500 = Open
Degrees 0~500

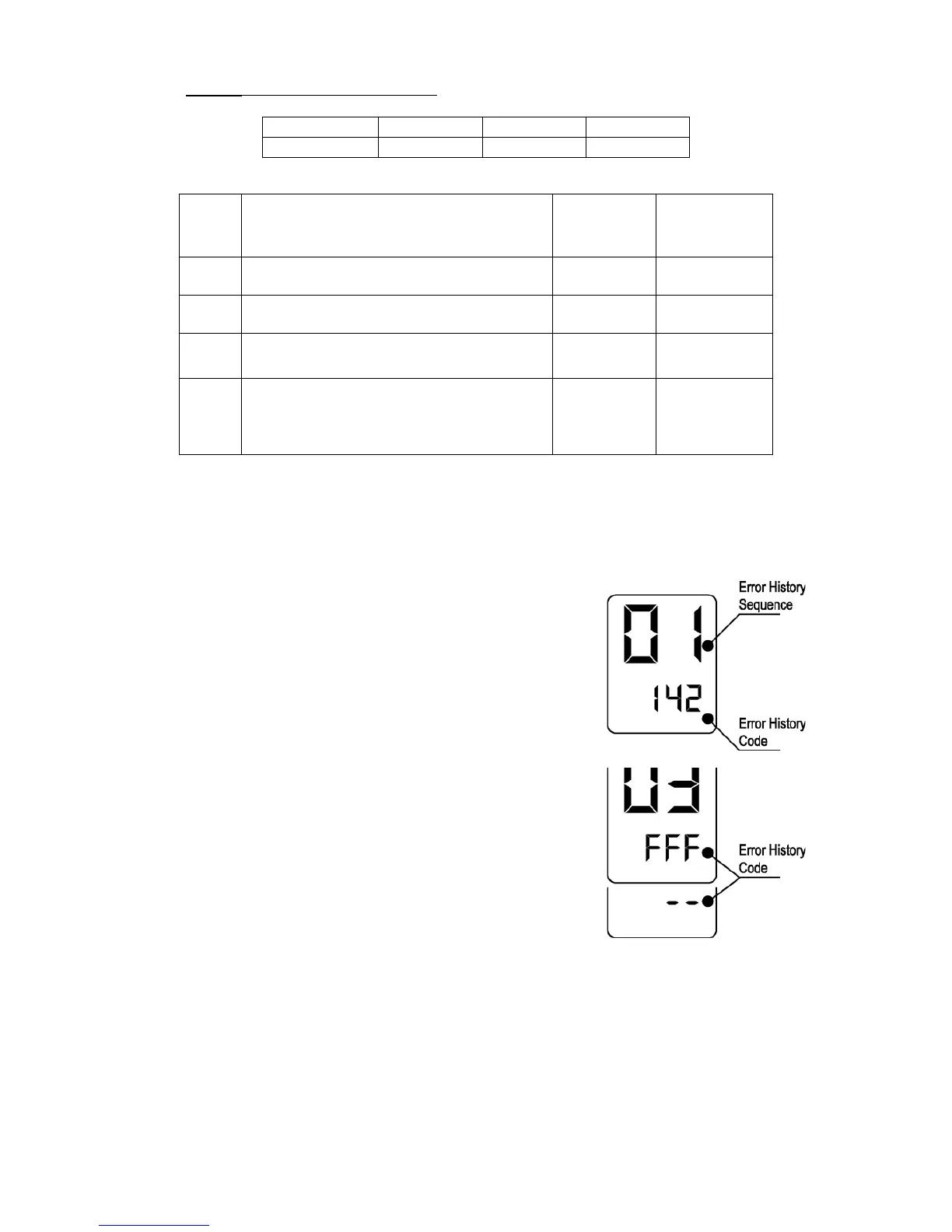

Error History
To Display Error Memory (History)
(This feature will show the last 10 faults in sequence)
1. Turn off at the ON/OFF button. (This can be done during
operation)
2. Press the ON/OFF button while holding the Water Temperature
"UP" (Hotter) button.
• The Sequence will be shown in the Water Temperature display.
• Error Code will be shown in the Clock display. (See service
Manual for error codes).
• Where there are less than a total of 9 errors, "FFF" or " - - " will
be displayed in the Clock display.
°
°
°
°
